Engine Code Location

ENGINE CODE LOCATION

Application		Location
Avenger & Sebring Coupe
2.0L 4 Cyl.		Side Of Cylinder Block, Behind Starter. See Fig 1
2.5L V6		Front Side Of Cylinder Block, On The Top Edge Of The Block, Near Transaxle Housing. See Fig 2
Breeze, Cirrus & Stratus
2.0L 4 Cyl.		Left Rear Of Cylinder Block, Behind Starter. See Fig 3
2.4L 4 Cyl.		Rear Of Cylinder Block, Above Flywheel, Roughly Center & Top Of The Block. See Fig 4
2.5L V6		Rear Of Cylinder Block, Below Cylinder Head. See Fig 5
Sebring Convertible
2.5L V6		Rear Of Cylinder Block, Below Cylinder Head. See Fig 5
2.4L 4 Cyl.		Rear Of Cylinder Block, Above Flywheel, Roughly Center & Top Of The Block. See Fig 4
Concorde, Intrepid, LHS & 300M
2.7L V6, 3.2L V6 & 3.5L V6		Rear Of Cylinder Block, Below Driver's Side Cylinder Head Surface, Just Above Flywheel. For 2.7L, See Fig 6 . For 3.2L & 3.5L, See Fig 7
Neon
2.0L 4 Cyl. (SOHC & DOHC)		Left Rear Of Cylinder Block, Behind Starter. See Fig 3
Prowler
3.5L V6		Rear Of The Cylinder Block, Just Below Cylinder Head. See Fig 7
Viper
8.0L V10		Lower Right Front Of The Cylinder Block Near The Oil Filter. See Fig 8

Fig 1: Locating Engine Identification Code (2.0L 4 Cyl. - Avenger & Sebring Coupe)

Courtesy of CHRYSLER CORP.

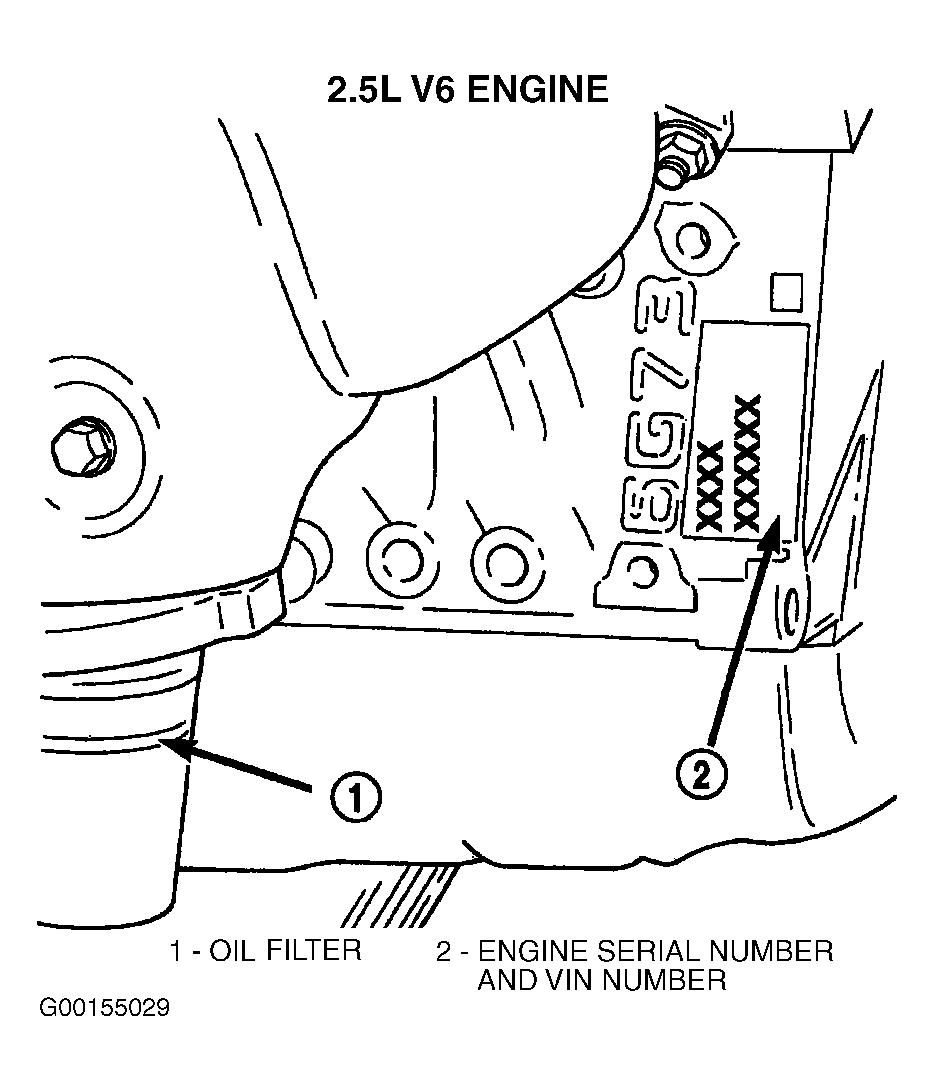

Fig 2: Locating Engine Identification Code (2.5L V6 - Avenger & Sebring Coupe)

Courtesy of CHRYSLER CORP.

Fig 3: Locating Engine Identification Code (2.0L 4 Cyl. - Breeze,Cirrus, Neon & Stratus)

Courtesy of CHRYSLER CORP.

Fig 4: Locating Engine Identification Code (2.4L 4 Cyl. - Breeze, Cirrus, Stratus & Sebring Convertible)

Courtesy of CHRYSLER CORP.

Fig 5: Locating Engine Identification Code (2.5L V6 - Breeze, Cirrus, Stratus & Sebring Convertible)

Courtesy of CHRYSLER CORP.

Fig 6: Locating Engine Identification Code (2.7L V6 - 300M, Concorde, Intrepid & LHS)

Courtesy of CHRYSLER CORP.

Fig 7: Locating Engine Identification Code (3.2L/3.5L V6 - 300M, Concorde, Intrepid, LHS & Prowler)

Courtesy of CHRYSLER CORP.

Fig 8: Locating Engine Identification Code (8.0L V10 - Viper)

Courtesy of CHRYSLER CORP.
