Rear CROSSMEMBER: Disassembly
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Lay the crossmember right-side-up on a bench with the bushing to be removed hanging over the edge of the bench.
- Install cup, Special Tool 8173-1, in well of press, Special Tool C-4212F.
- Install Remover/Installer, Special Tool 8173-2, on end of the threaded push rod on Special Tool C-4212F.

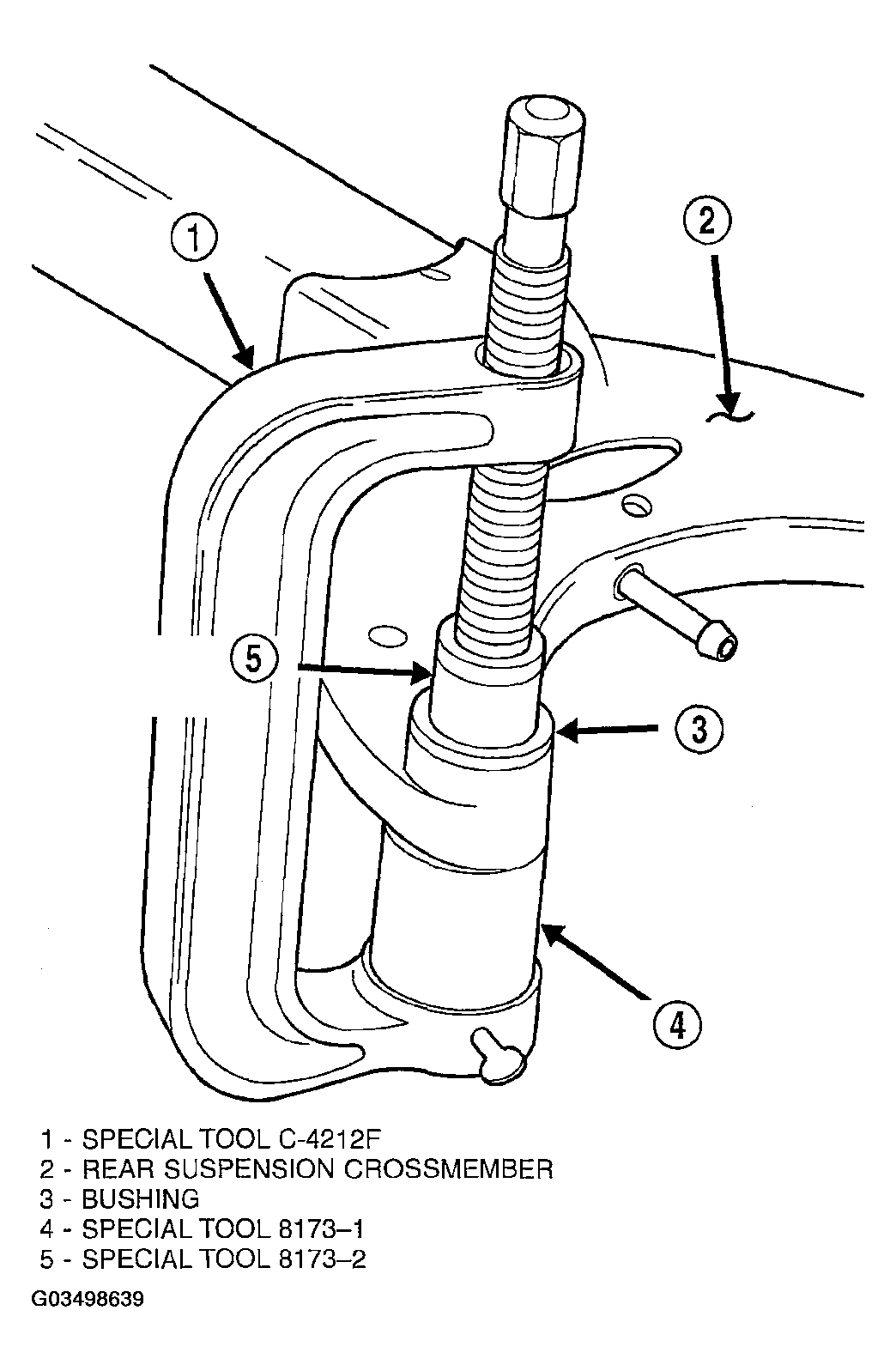

- Install Special tool C-4212F with Special Tools 8173-1, and 8173-2, on bushing (Fig 1 ).
- Turn the threaded rod, pushing bushing down through crossmember and into cup 8173-1.
- Remove special tools, and bushing
