A/C Heater Control: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
Remove the ash receiver assembly, if necessary.
Remove the instrument panel center trim bezel and remove the two electrical connectors from the back of the control head and traction control switch (if equipped) (Fig 1 ) and (Fig 2 ).

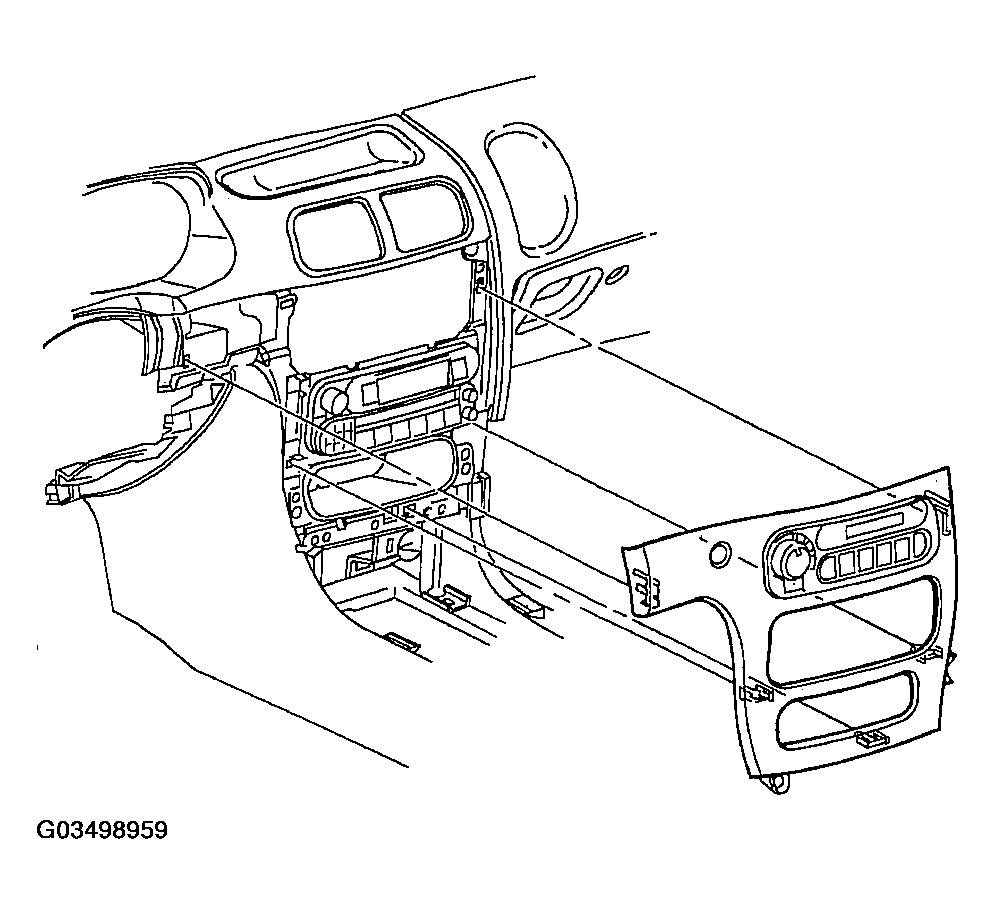

Fig 1: Instrument Panel Center Trim Bezel Remove/Install
Courtesy of DAIMLERCHRYSLER CORP.
Prom the back of the center trim bezel, remove the six retaining screws from the a/c heater control head and remove from the bezel.

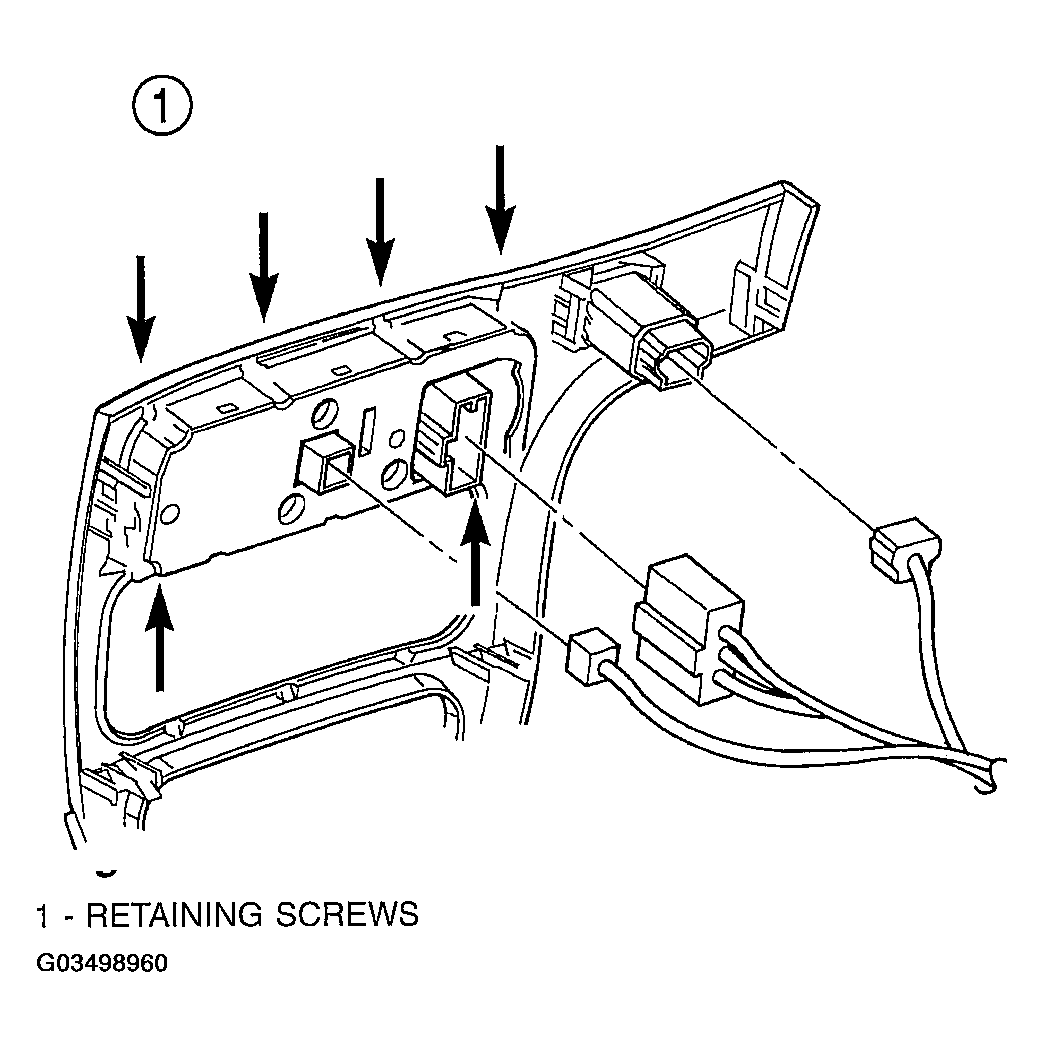

Fig 2: A/C Heater Control Remove/Install
Courtesy of DAIMLERCHRYSLER CORP.
