Engine Coolant Temperature Sensor: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

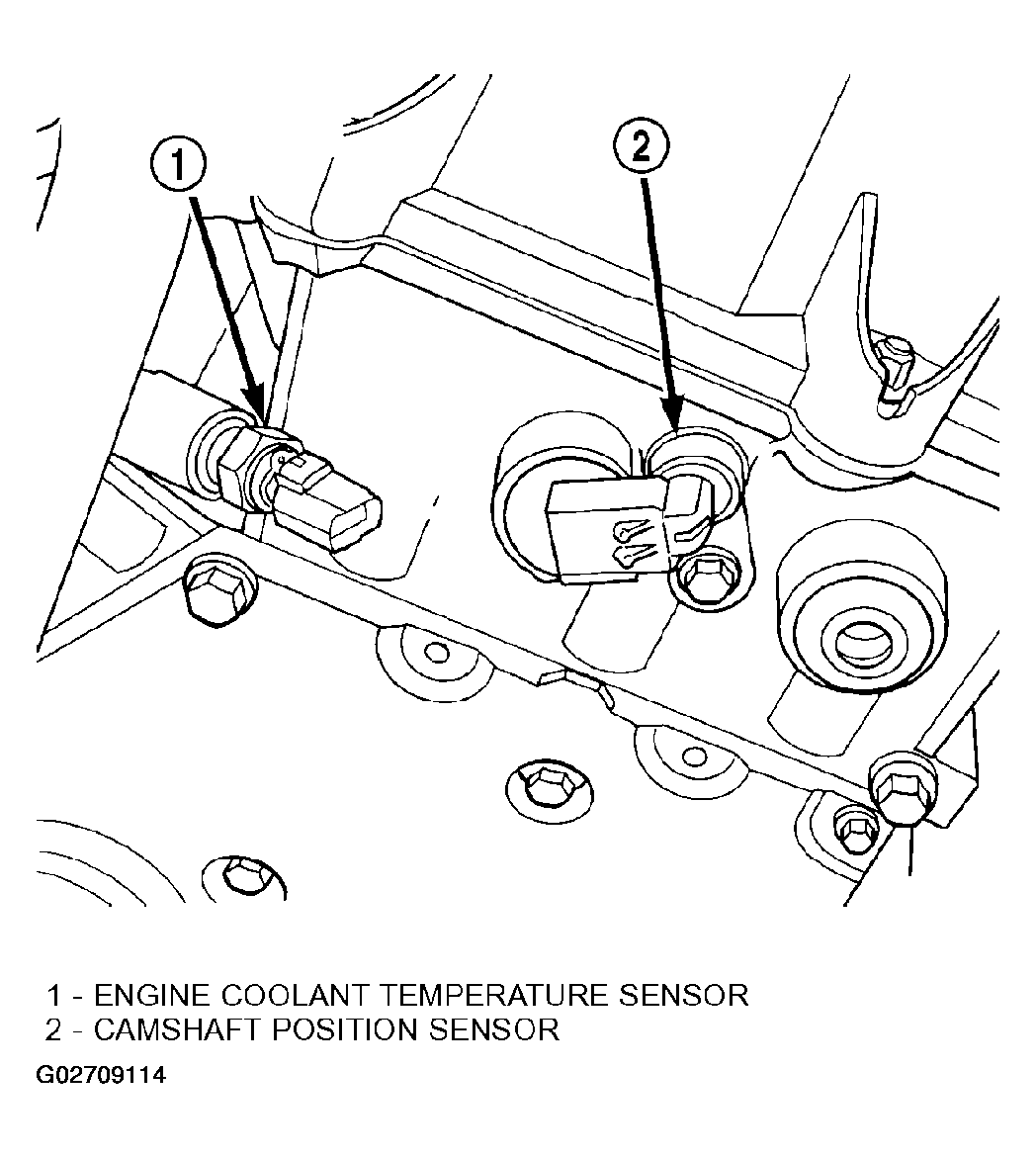

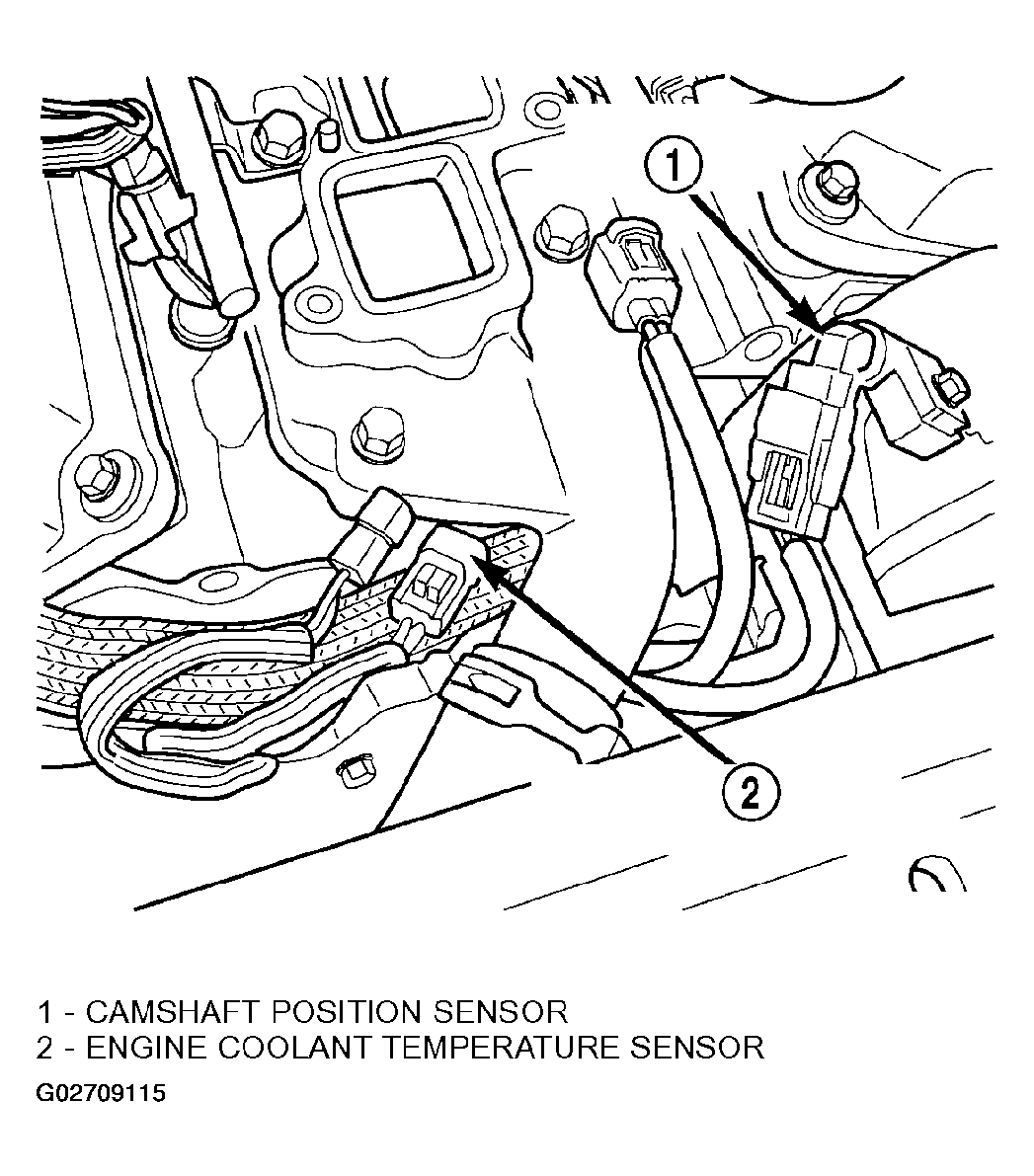

Install engine coolant temperature sensor (Figure ) or (Figure ). Tighten sensor to 28 N.m (20 ft. lbs.) torque.
Attach electrical connector to sensor.
Connect negative cable to remote jumper terminal.
