Lock Cylinder: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Push lock cylinder into socket on door handle.
Insert link into clip on lock cylinder.
Engage clip to fasten lock link to lock cylinder.
Verify lock operation.
Install watershield.
Install door trim panel. (Refer to INSTALLATION ).

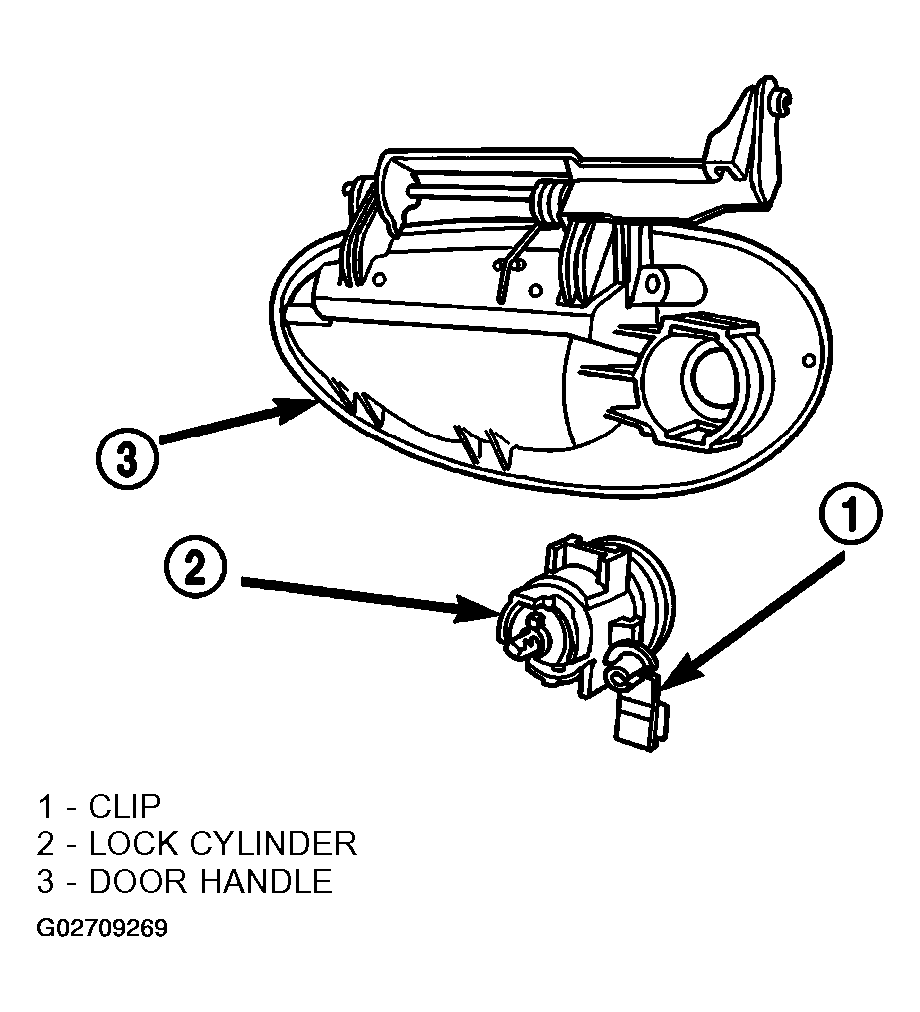

Fig 1: Identifying Door Lock Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
