Connector Identification

NOTE: For connector identification, see Fig 1 - Fig 20

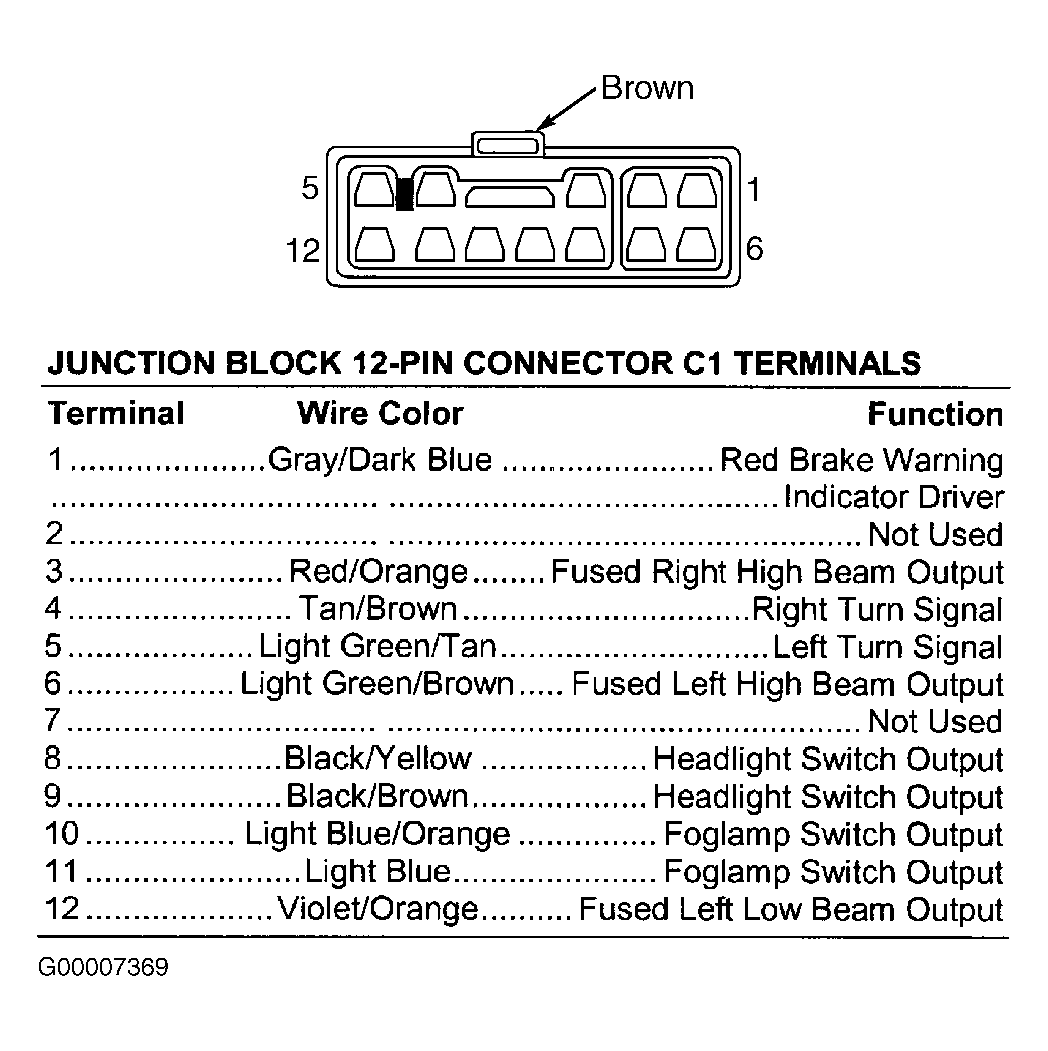

Fig 1: Identifying Junction Block Connector C1 Terminals
G00007369Courtesy of DAIMLERCHRYSLER CORP.

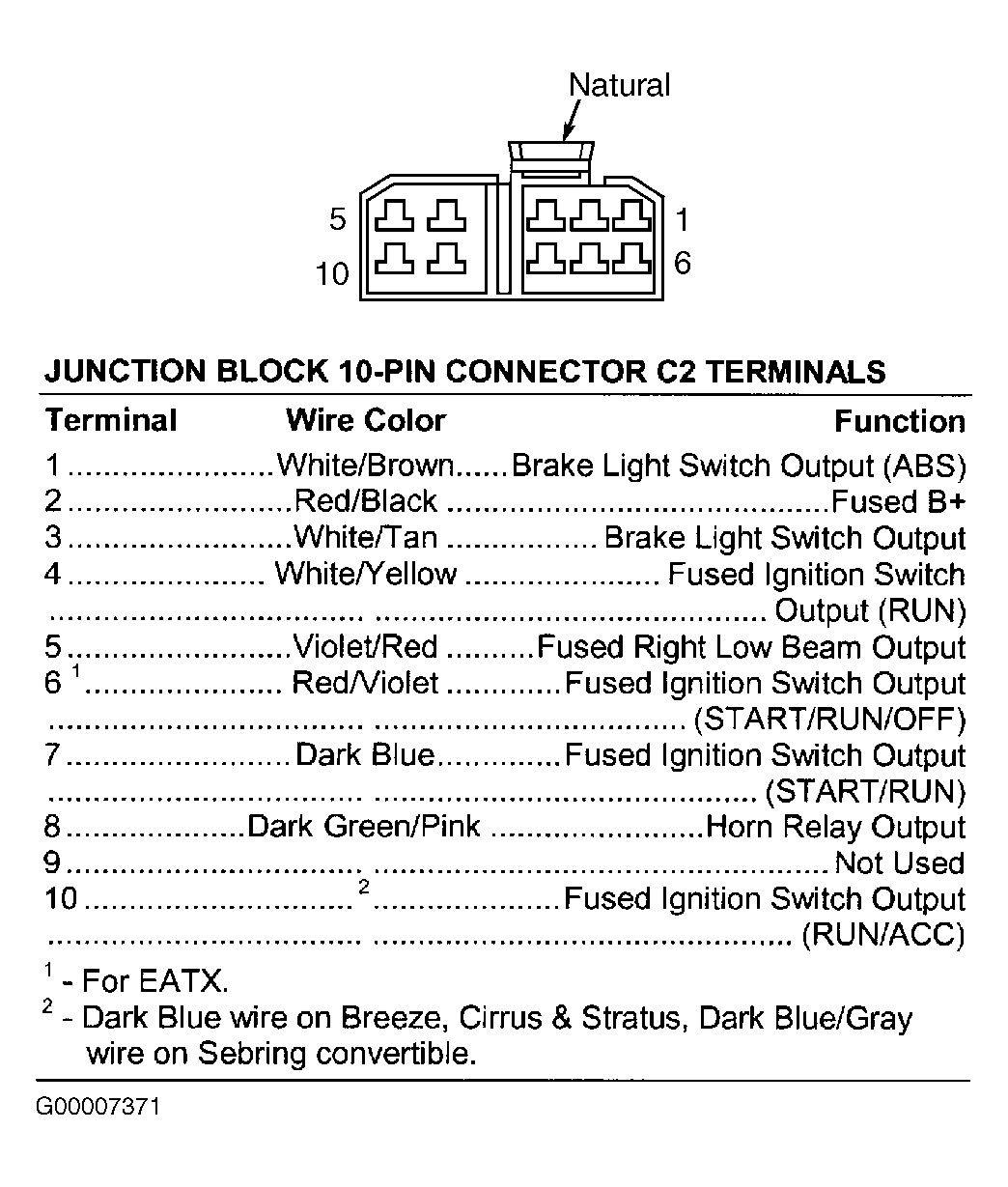

Fig 2: Identifying Junction Block Connector C2 Terminals
G00007371Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Junction Block Connector C3 Terminals
G00007368Courtesy of DAIMLERCHRYSLER CORP.

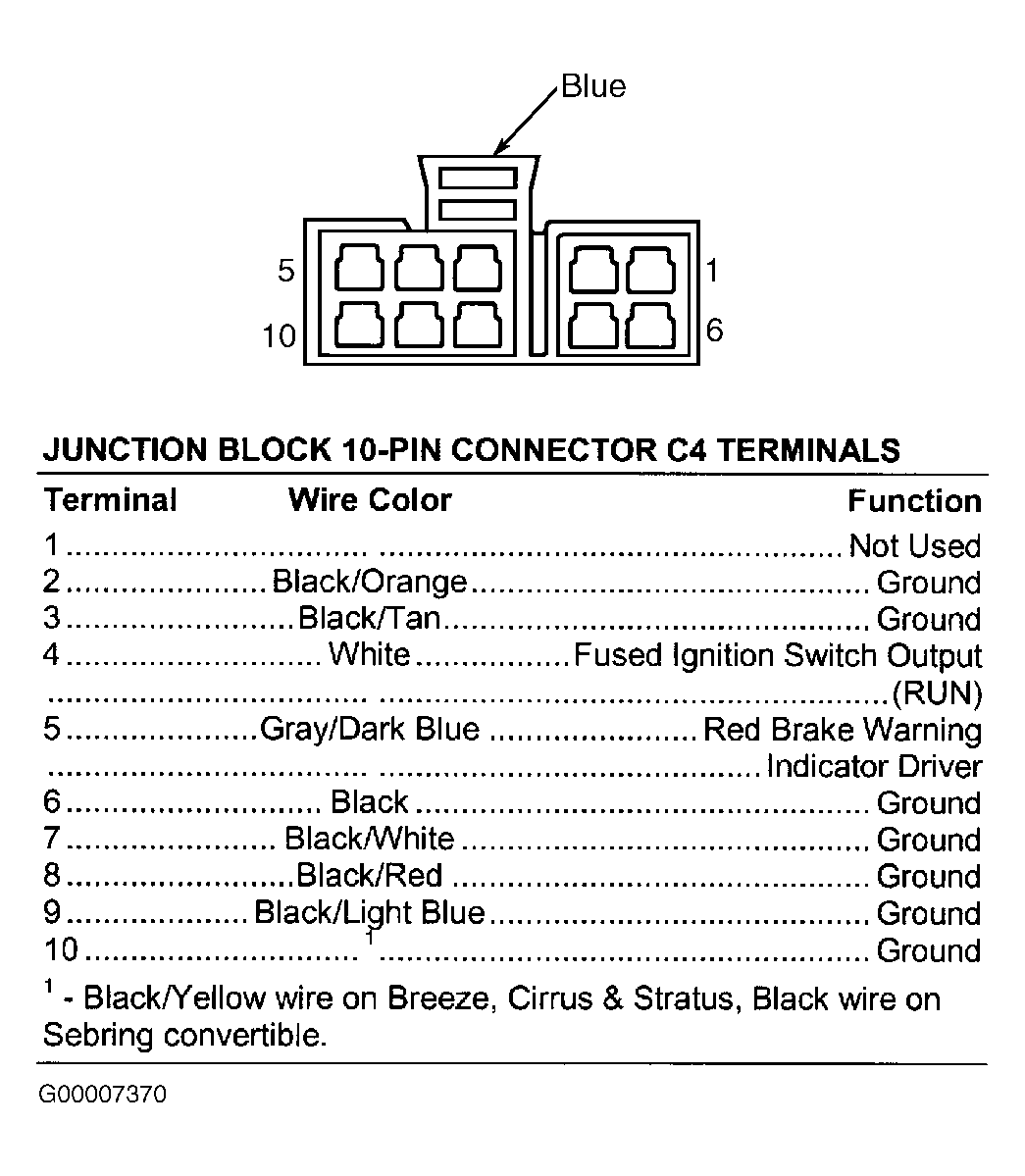

Fig 4: Identifying Junction Block Connector C4 Terminals
G00007370Courtesy of DAIMLERCHRYSLER CORP.

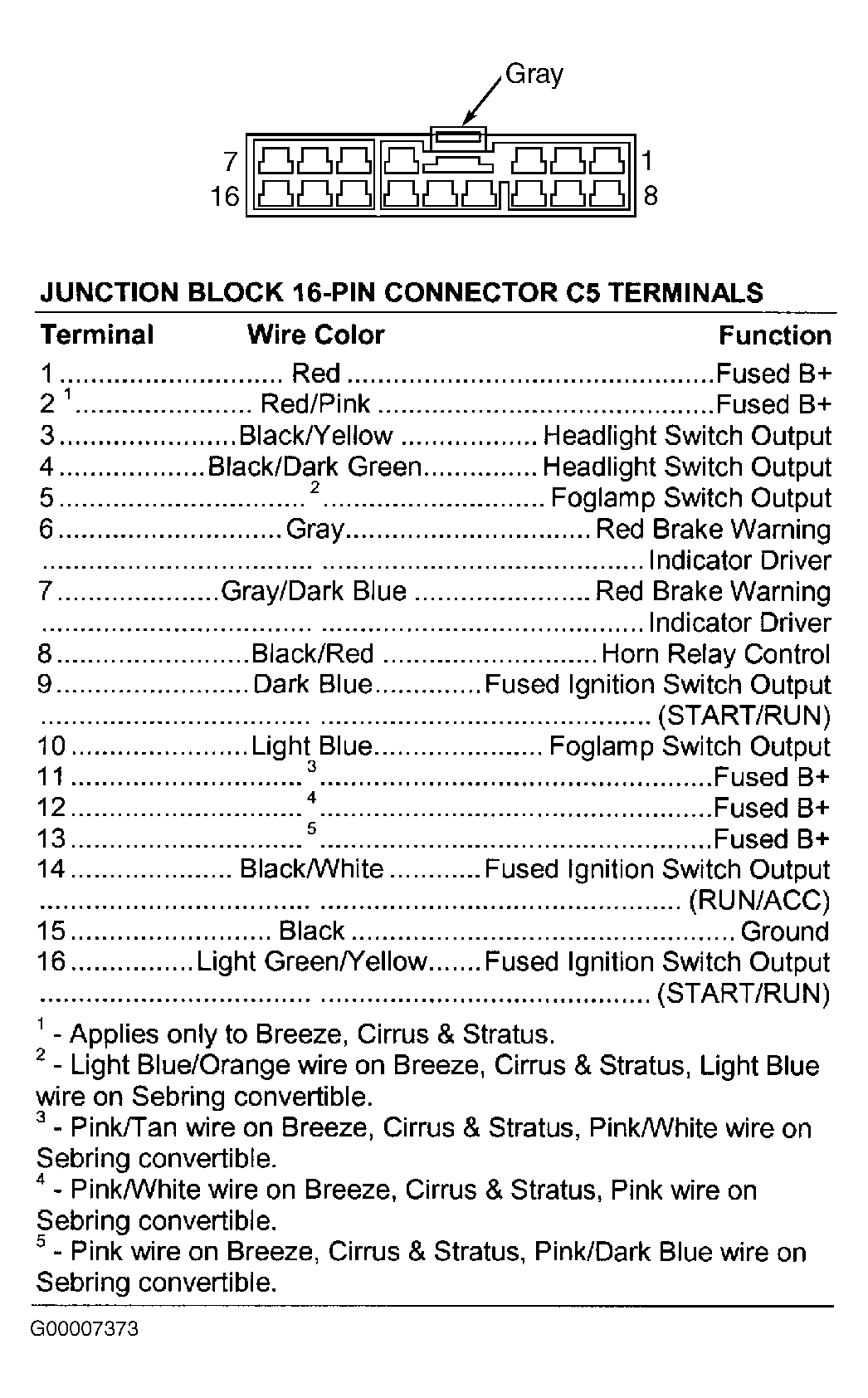

Fig 5: Identifying Junction Block Connector C5 Terminals
G00007373Courtesy of DAIMLERCHRYSLER CORP.

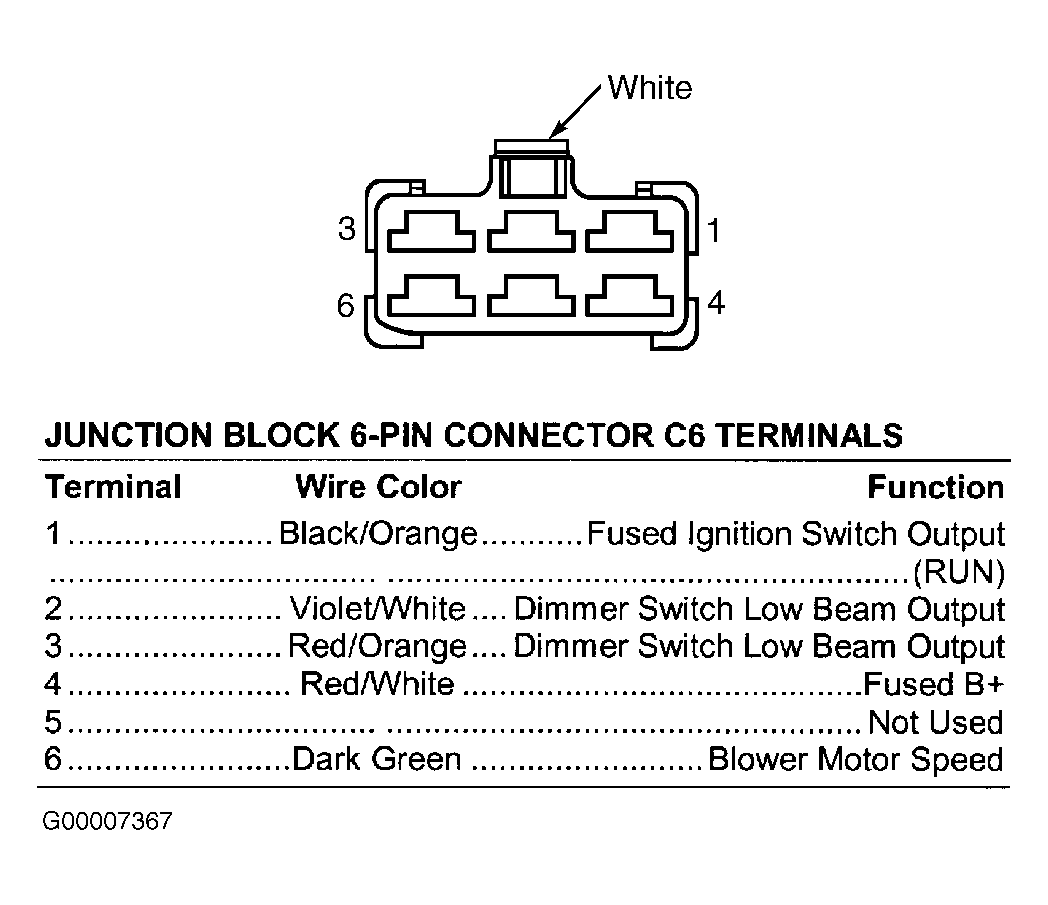

Fig 6: Identifying Junction Block Connector C6 Terminals
G00007367Courtesy of DAIMLERCHRYSLER CORP.

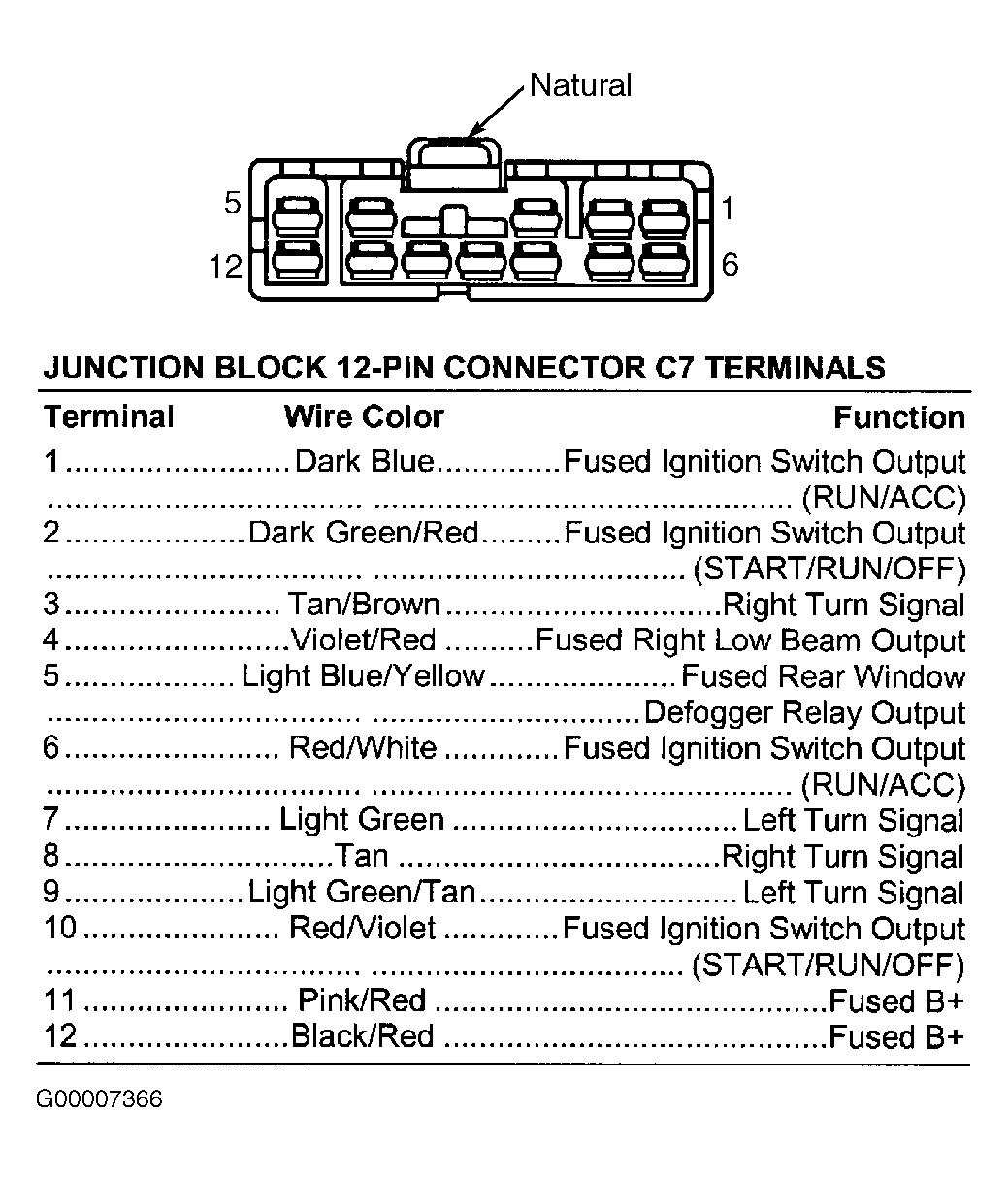

Fig 7: Identifying Junction Block Connector C7 Terminals
G00007366Courtesy of DAIMLERCHRYSLER CORP.

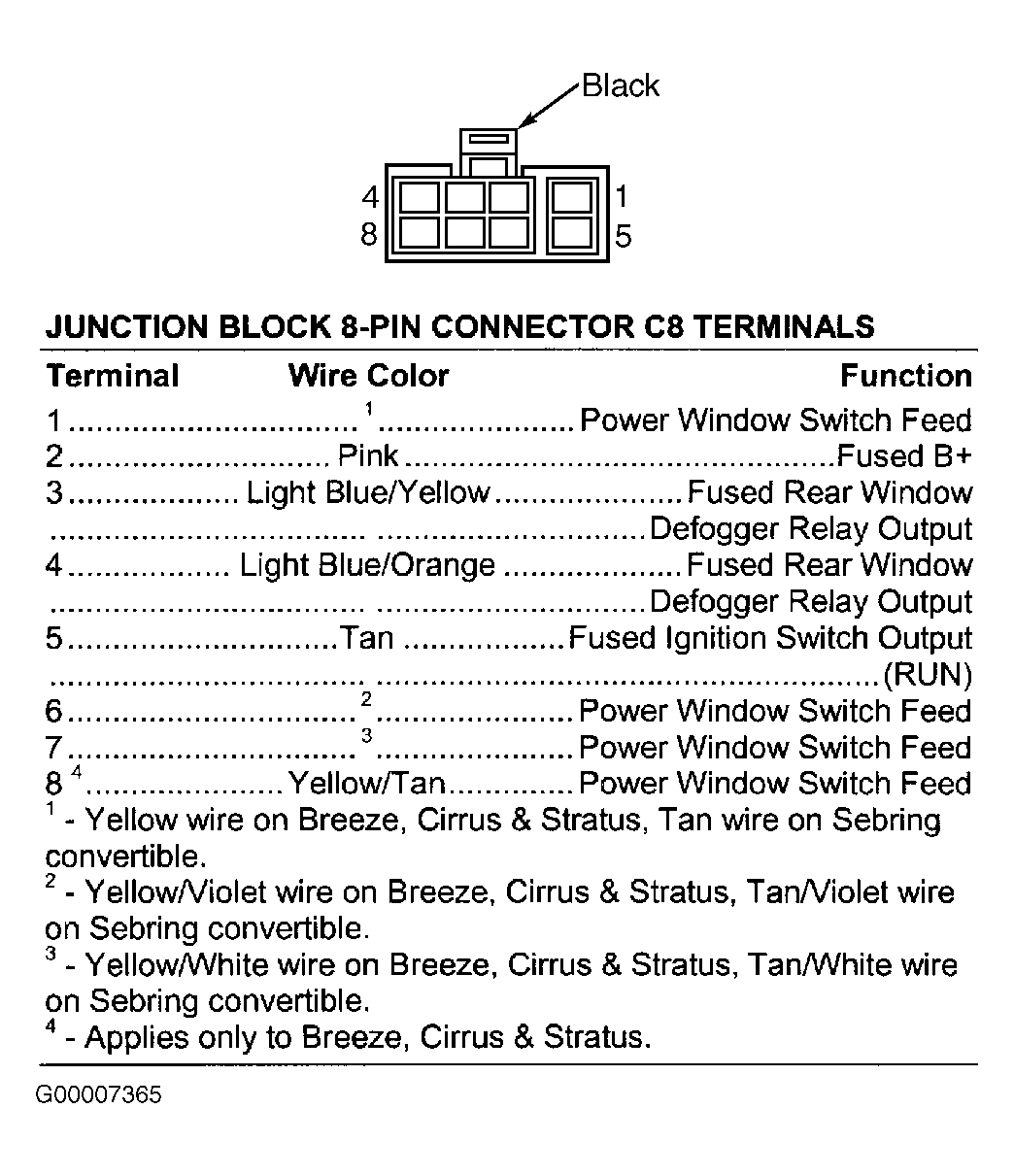

Fig 8: Identifying Junction Block Connector C8 Terminals
G00007365Courtesy of DAIMLERCHRYSLER CORP.

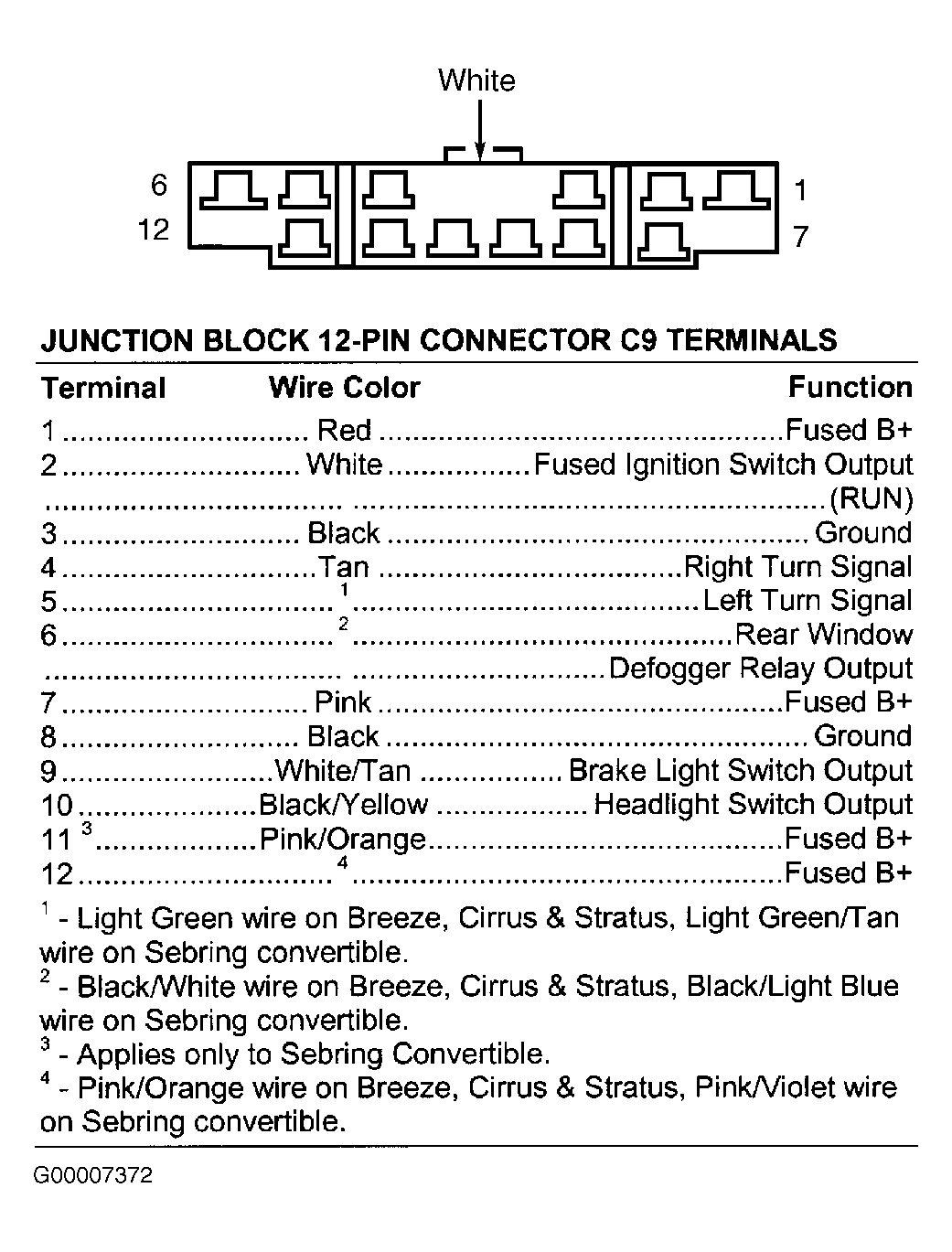

Fig 9: Identifying Junction Block Connector C9 Terminals
G00007372Courtesy of DAIMLERCHRYSLER CORP.

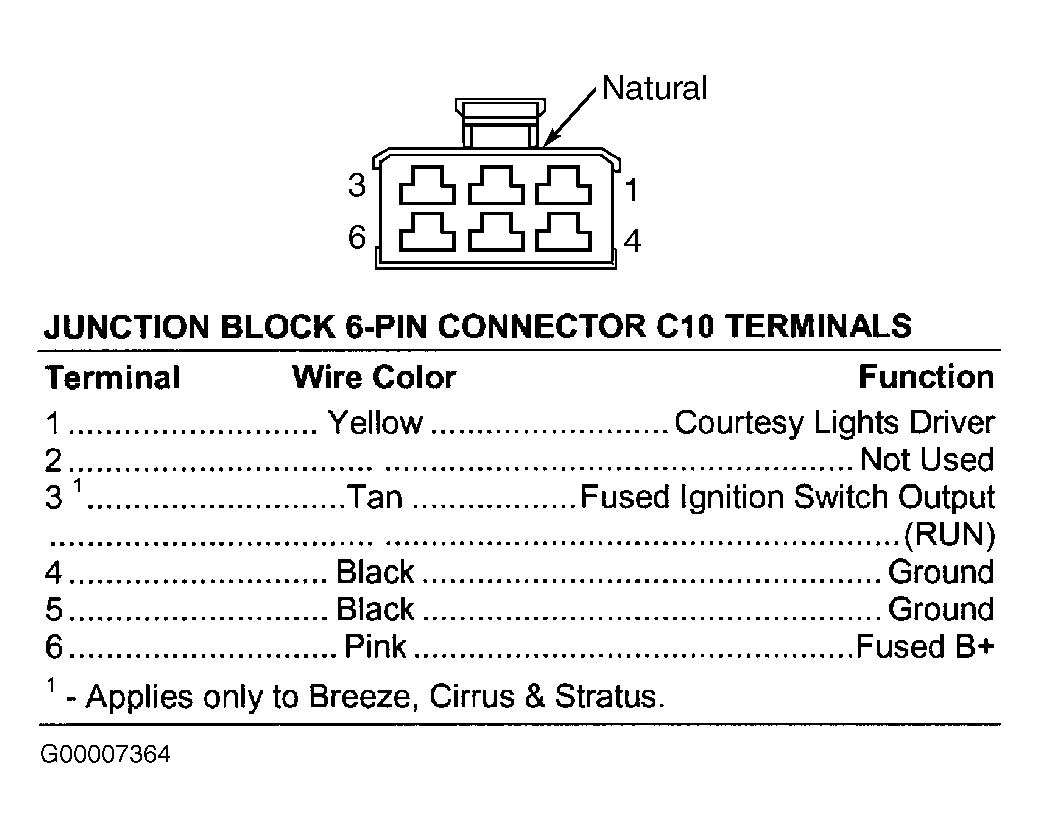

Fig 10: Identifying Junction Block Connector C10 Terminals
G00007364Courtesy of DAIMLERCHRYSLER CORP.

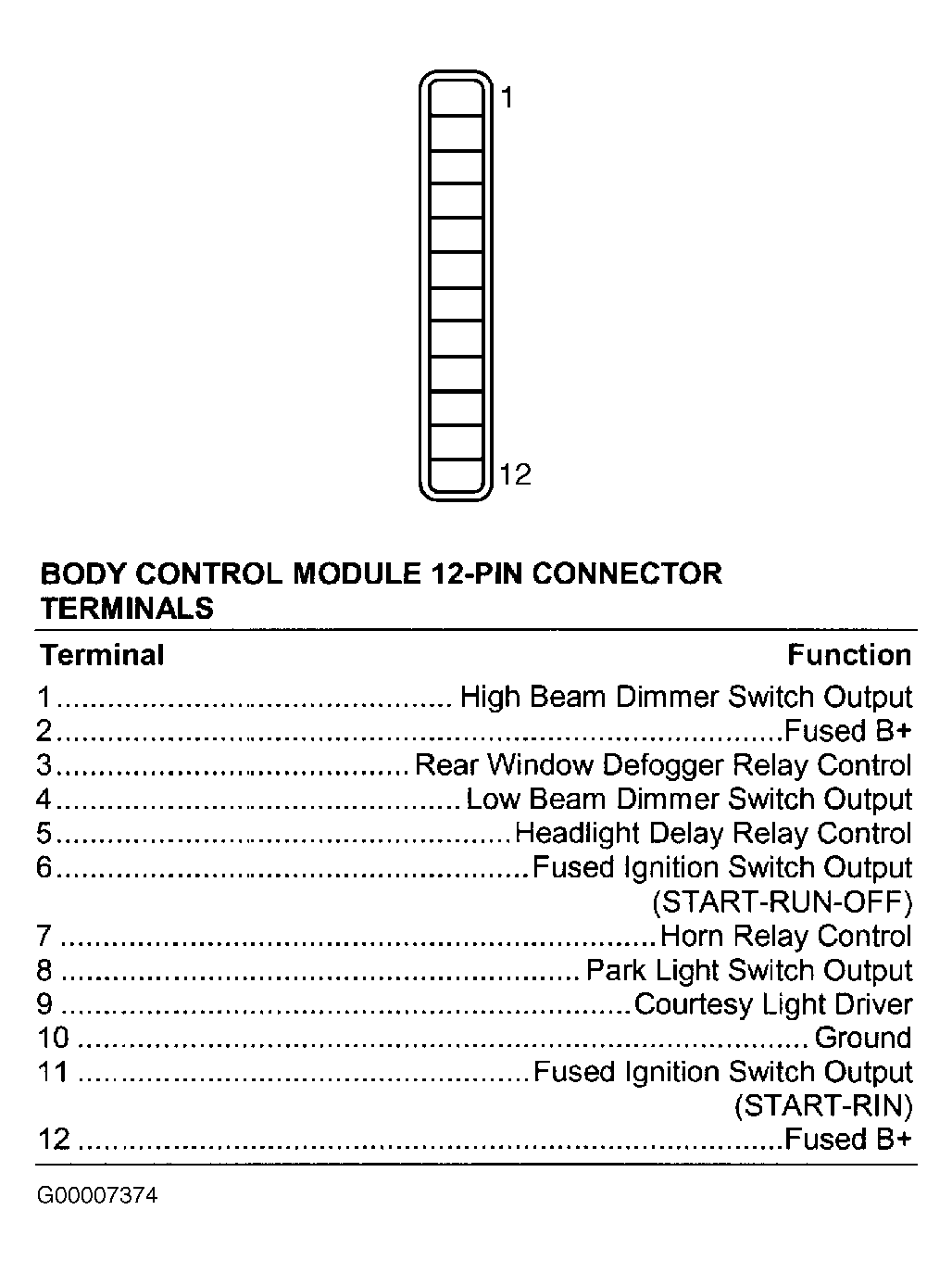

Fig 11: Identifying Body Control Module Internal Connector Terminals
G00007374Courtesy of DAIMLERCHRYSLER CORP.

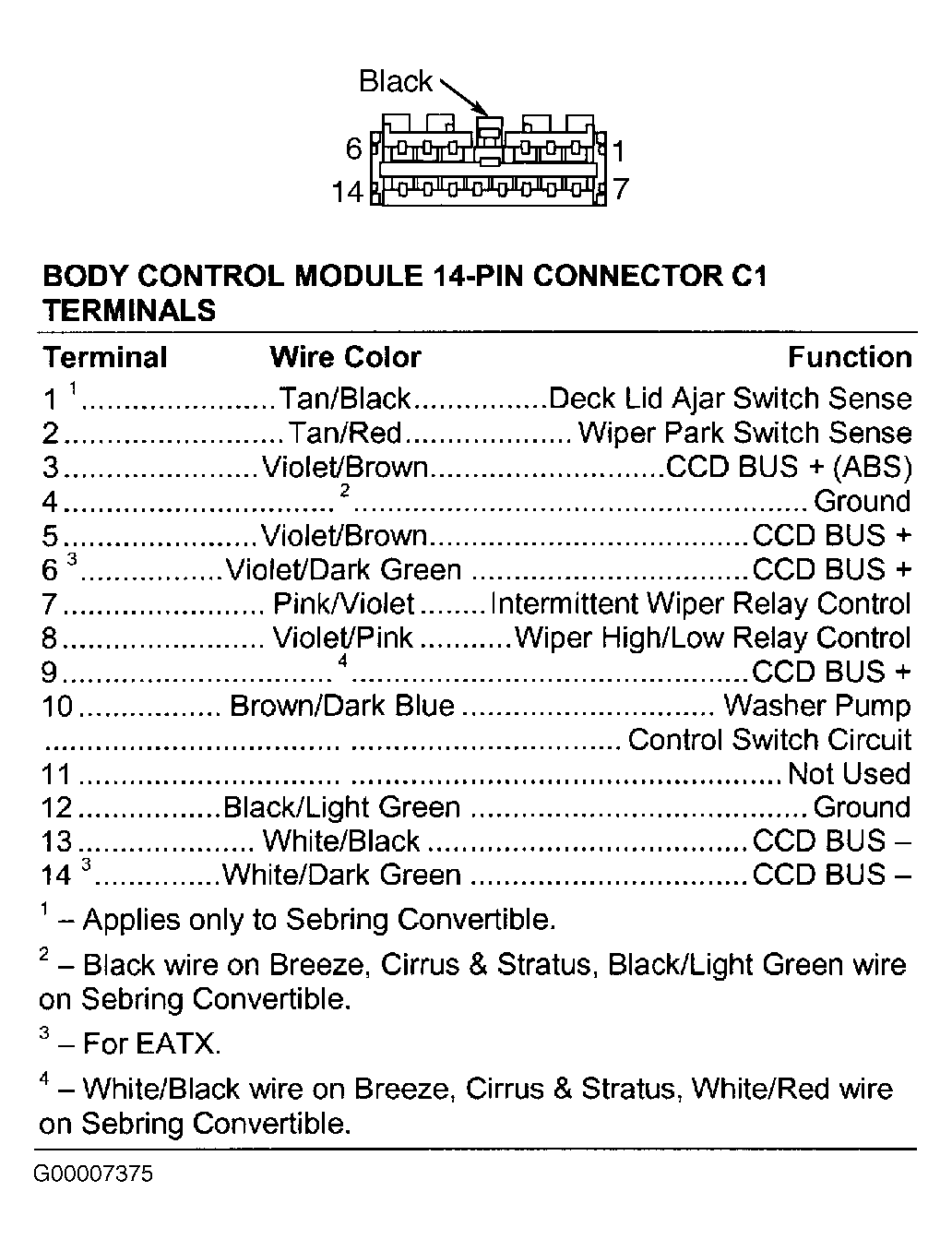

Fig 12: Identifying Body Control Module Connector C1 Terminals
G00007375Courtesy of DAIMLERCHRYSLER CORP.

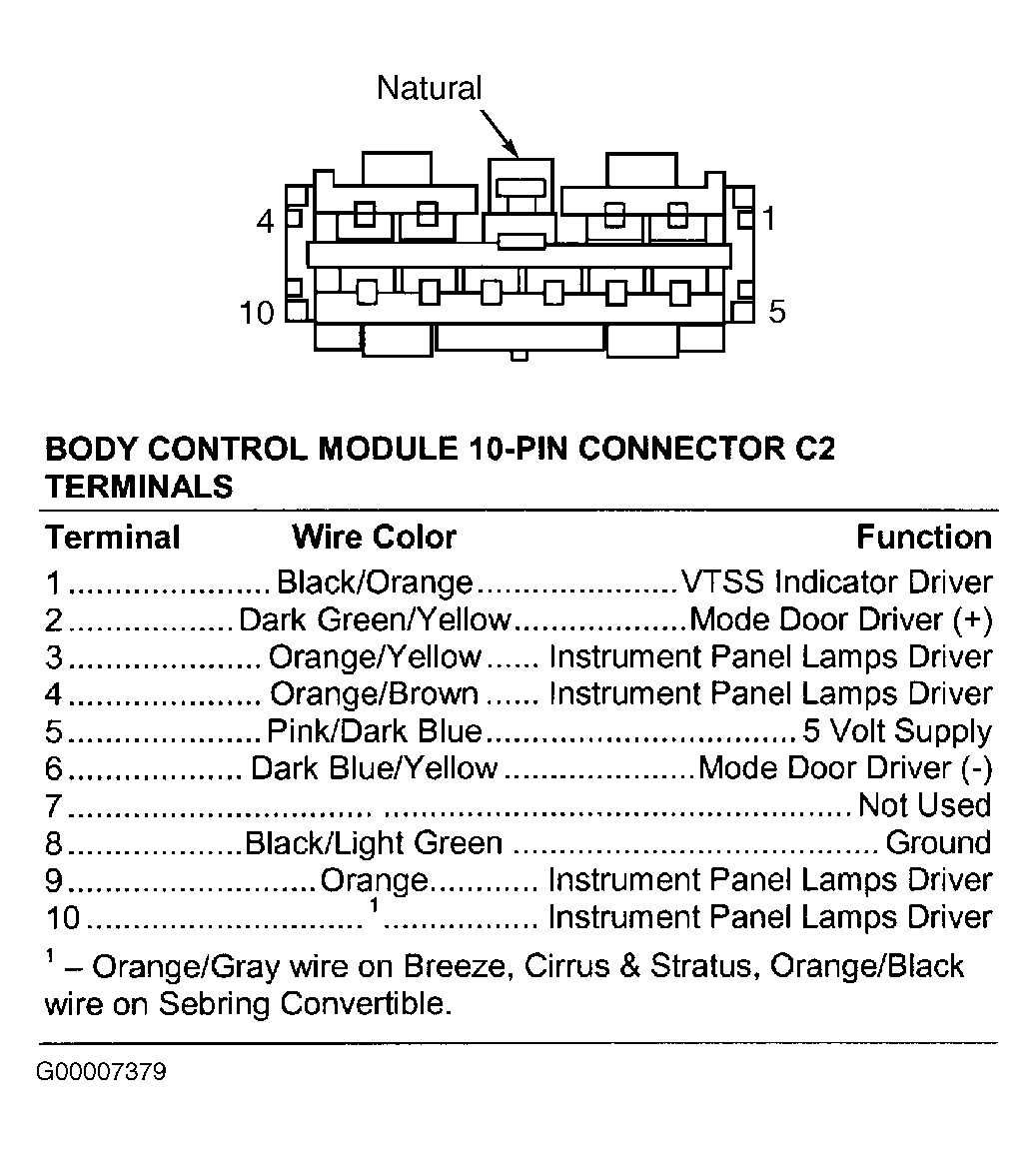

Fig 13: Identifying Body Control Module Connector C2 Terminals
G00007379Courtesy of DAIMLERCHRYSLER CORP.

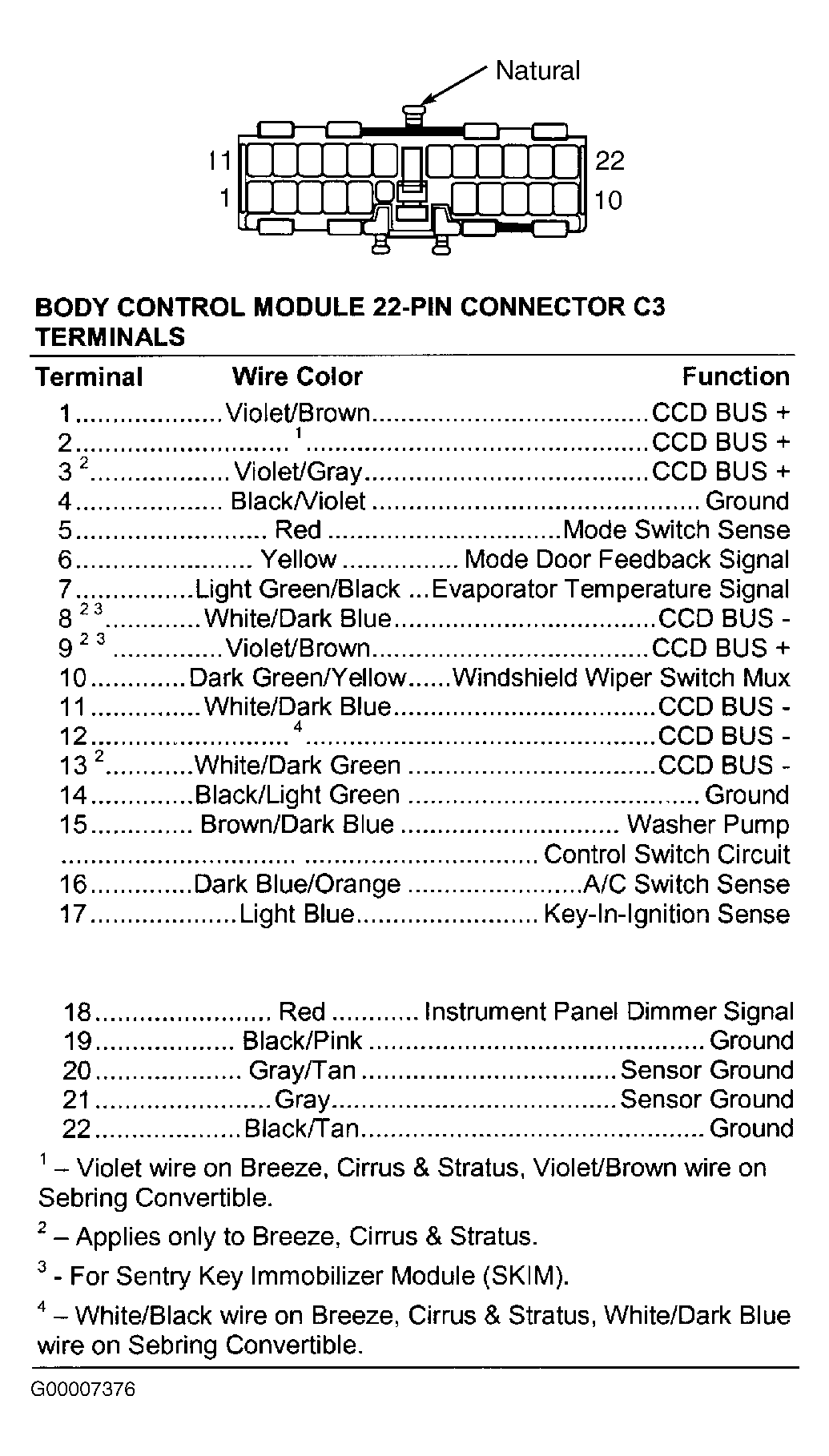

Fig 14: Identifying Body Control Module Connector C3 Terminals
G00007376Courtesy of DAIMLERCHRYSLER CORP.

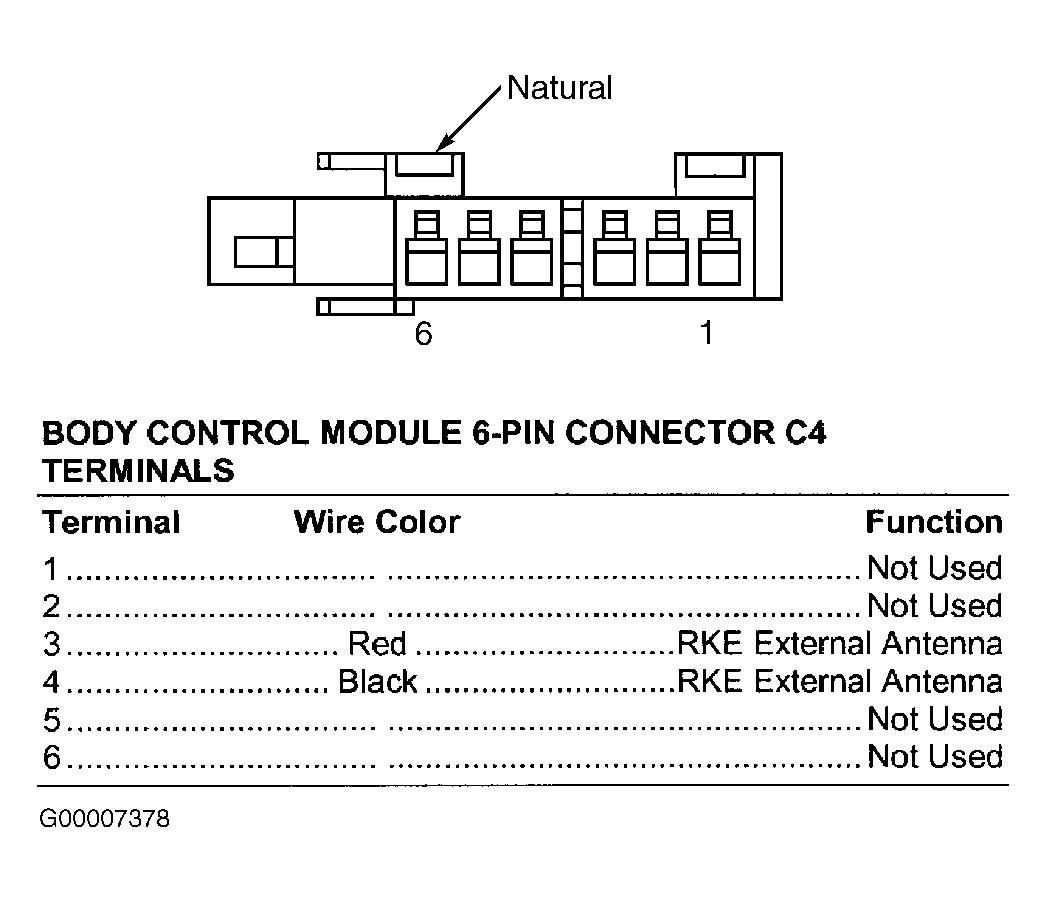

Fig 15: Identifying Body Control Module Connector C4 Terminals
G00007378Courtesy of DAIMLERCHRYSLER CORP.

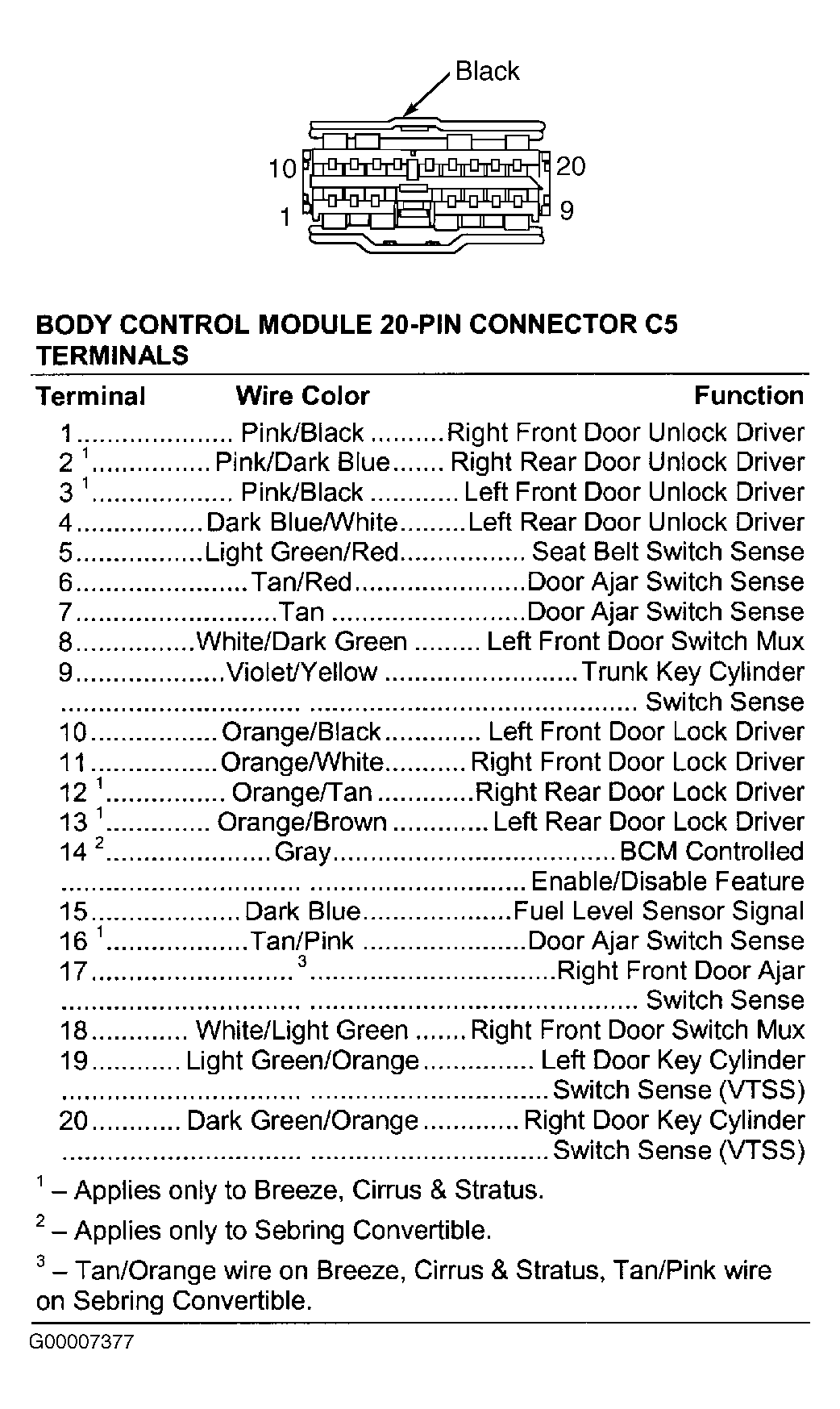

Fig 16: Identifying Body Control Module Connector C5 Terminals
G00007377Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Locating BCM/Junction Block
G95F13297Courtesy of CHRYSLER LLC
Fig 18: Locating BCM/Junction Block Connectors
G95B13566Courtesy of CHRYSLER LLC
Fig 19: Identifying Junction Block Components
G95J13564Courtesy of CHRYSLER LLC
Fig 20: Locating Instrument Panel Connectors
G00007353Courtesy of DAIMLERCHRYSLER CORP.
