Radiator Fan Relay: Notes
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

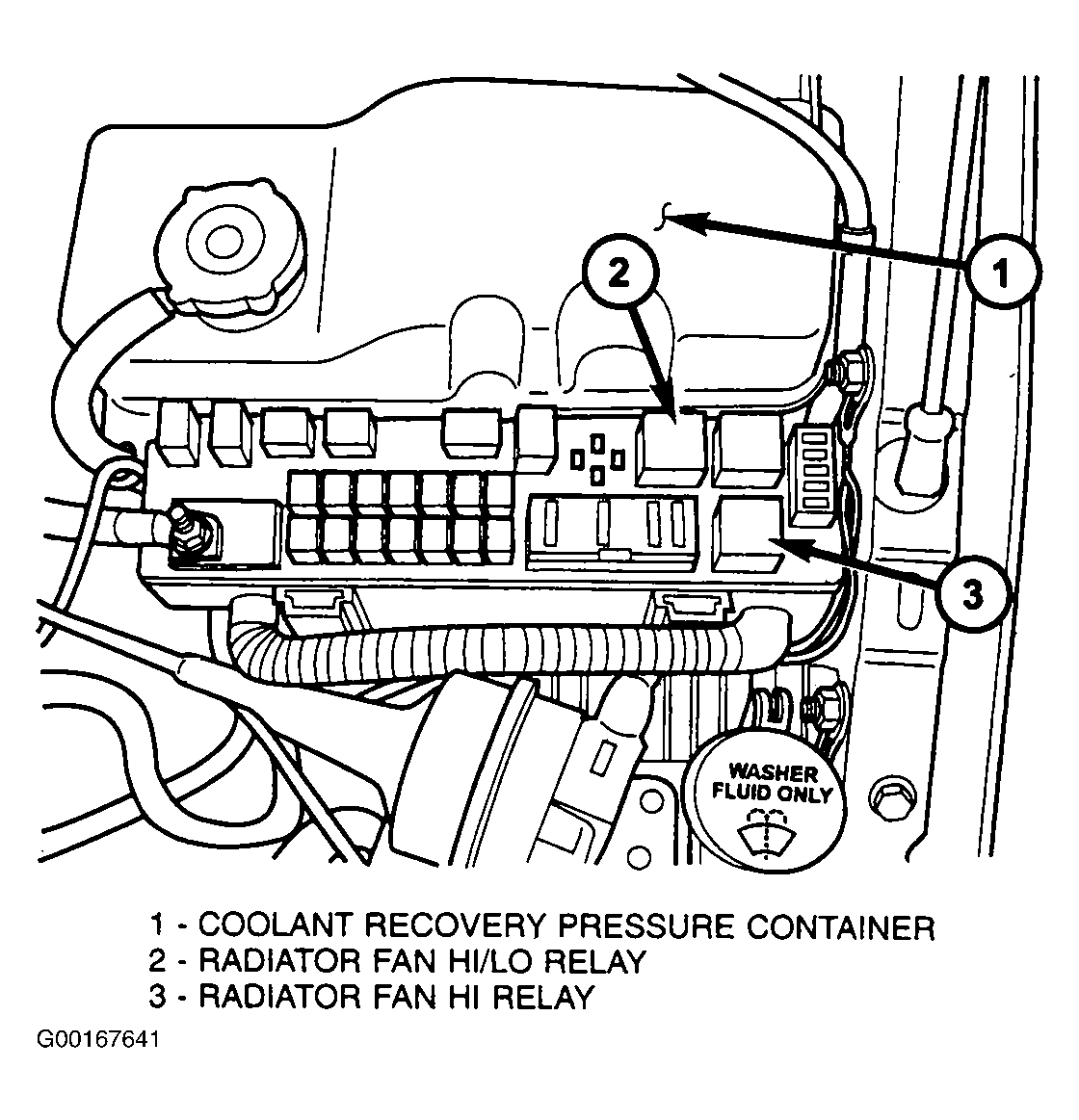

The HI/LO and HI radiator fan relays are located in the Power Distribution Center (PDC) near the coolant recovery pressure container. See Figure . A decal on the inside of the PDC covers shows the location of each relay and fuse contained in the PDC. It is an ISO relay. All vehicles (except 2.7L base) are also equipped with No. 1 and No. 2 radiator fan relays that are mounted to the radiator fan motor shroud. See Figure .
