ICU - Integrated Control Unit: Description

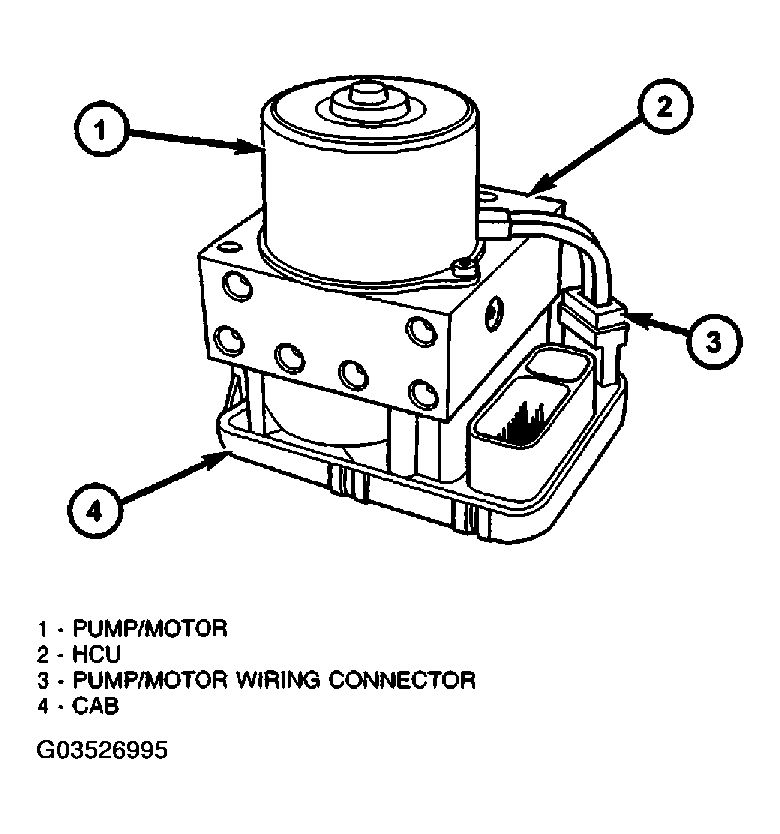

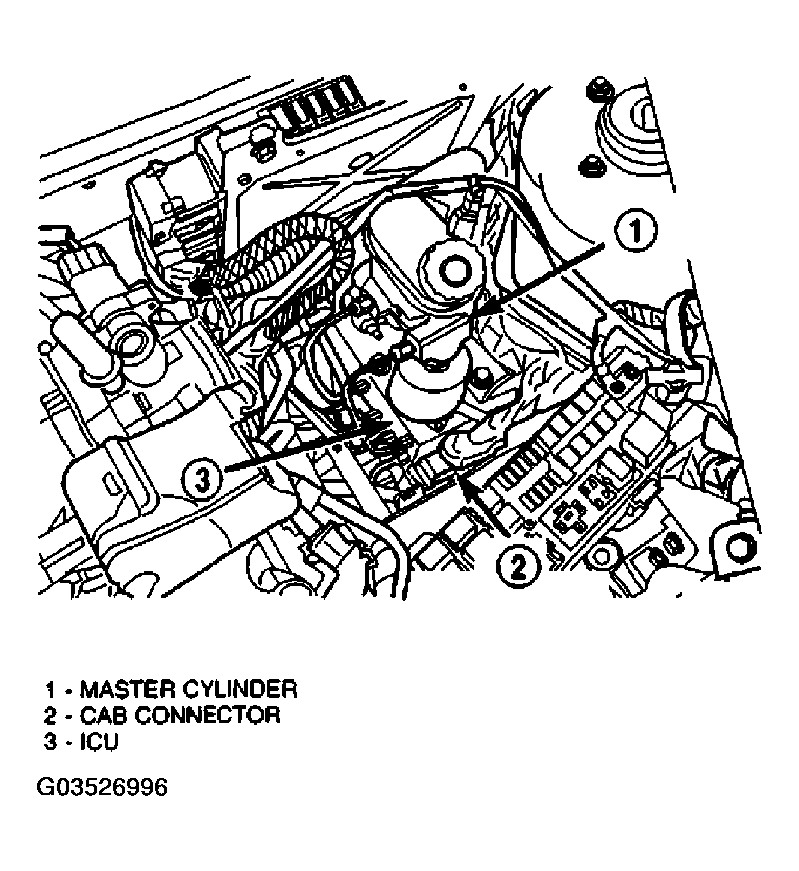

The hydraulic control unit (HCU) and the controller antilock brake (CAB) used with this antilock brake system are combined (integrated) into one unit, which is called the integrated control unit (ICU) (Fig 1 ). The ICU is located on the driver's side of the vehicle, below the master cylinder (Fig 2 ).
Two different ICU's (HCU and CAB) are used on this vehicle depending on whether or not the vehicle is equipped with traction control. The HCU on a vehicle equipped with traction control has a valve block that is approximately one inch longer than a HCU on a vehicle that is equipped with ABS only.
The ABS-only ICU consists of the following components: the CAB, eight (build/decay) solenoid valves (four inlet valves and four outlet valves), valve block, fluid accumulators, a pump, and an electric motor.
The ABS with traction control ICU consists of the following components: the CAB, eight (build/decay) solenoid valves (four inlet valves and four outlet valves), two traction control solenoid valves, two hydraulic shuttle valves, valve block, fluid accumulators, a pump, and an electric pump/motor.
The replaceable components of the ICU are the HCU and the CAB. No attempt should be made to service any components of the HCU or CAB.
For additional information on the CAB, (Refer to CONTROLLER ANTILOCK BRAKE ). For additional information on the HCU, (Refer to DESCRIPTION - HYDRAULIC CONTROL UNIT (HCU) ).
