Module-Front Control: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

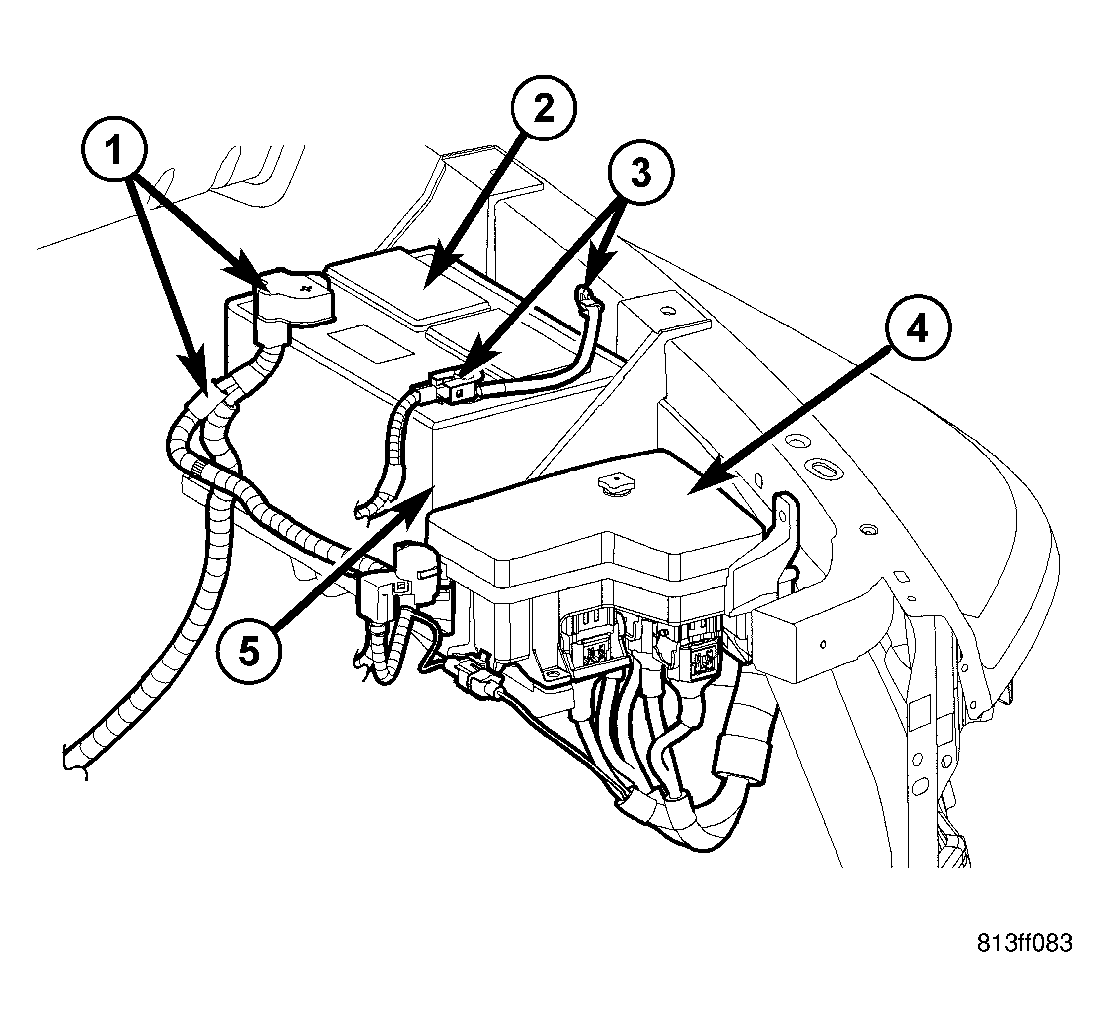

Fig 1: Identifying Front Control Module & Integrated Power Module
GC0006119Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the Front Control Module (FCM) onto the Integrated Power Module (IPM) (4) by pushing the 49-way electrical connector straight in.
  2. Install the FCM retaining screws. Torque the screws to 7 in. lbs.
  3. Install the IPM (Refer to ELECTRICAL/POWER DISTRIBUTION/INTEGRATED POWER MODULE - INSTALLATION) .
  4. Connect the battery negative cable.
  5. Verify normal vehicle operation.
