Starter Relay: Notes
WARNING: This page is about a different car, the 2004 Dodge Pickup, 2004 Dodge Cab & Chassis, 2003 Dodge Pickup, and 2003 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

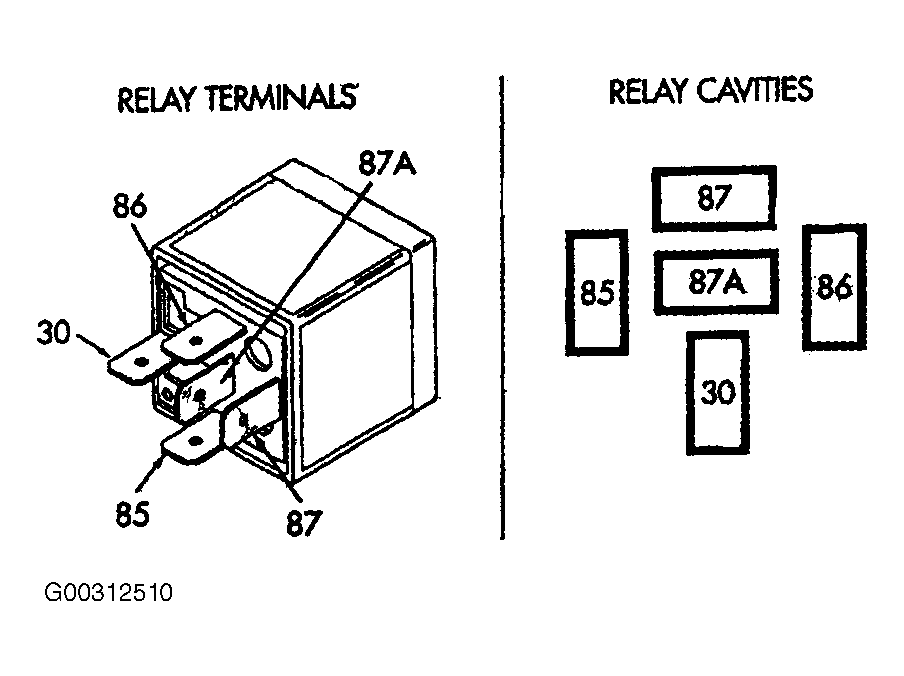

The starter relay is located in Power Distribution Center (PDC). See Fig 1 . Refer to PDC cover for relay identification and location. For complete starter relay wiring circuit diagrams, see WIRING DIAGRAMS .
- Remove starter relay from PDC.
- A relay in de-energized position should have continuity between terminals 87A and 30, and no continuity between terminals 87 and 30. If OK, go to next step. If not OK, replace faulty relay.
- Resistance between terminals 85 and 86 (electromagnet) should be 75 +/- 5 ohms. If OK, go to next step. If not OK, replace faulty relay.
- Connect 12V battery to terminals 85 and 86. There should now be continuity between terminals 30 and 87, and no continuity between terminals 87A and 30. If OK, perform Relay Circuit Test that follows. If not OK, replace faulty relay.
TERMINAL LEGEND
| Number | Identification |
|---|---|
| 30 | Common Feed |
| 85 | Coil Ground |
| 86 | Coil Battery |
| 87 | Normally Open |
| 87A | Normally Closed |
