Removal & Installation
WARNING: This page is about a different car, the 2002 Dodge Grand Caravan, 2002 Dodge Caravan, 2002 Chrysler Voyager, and 2002 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

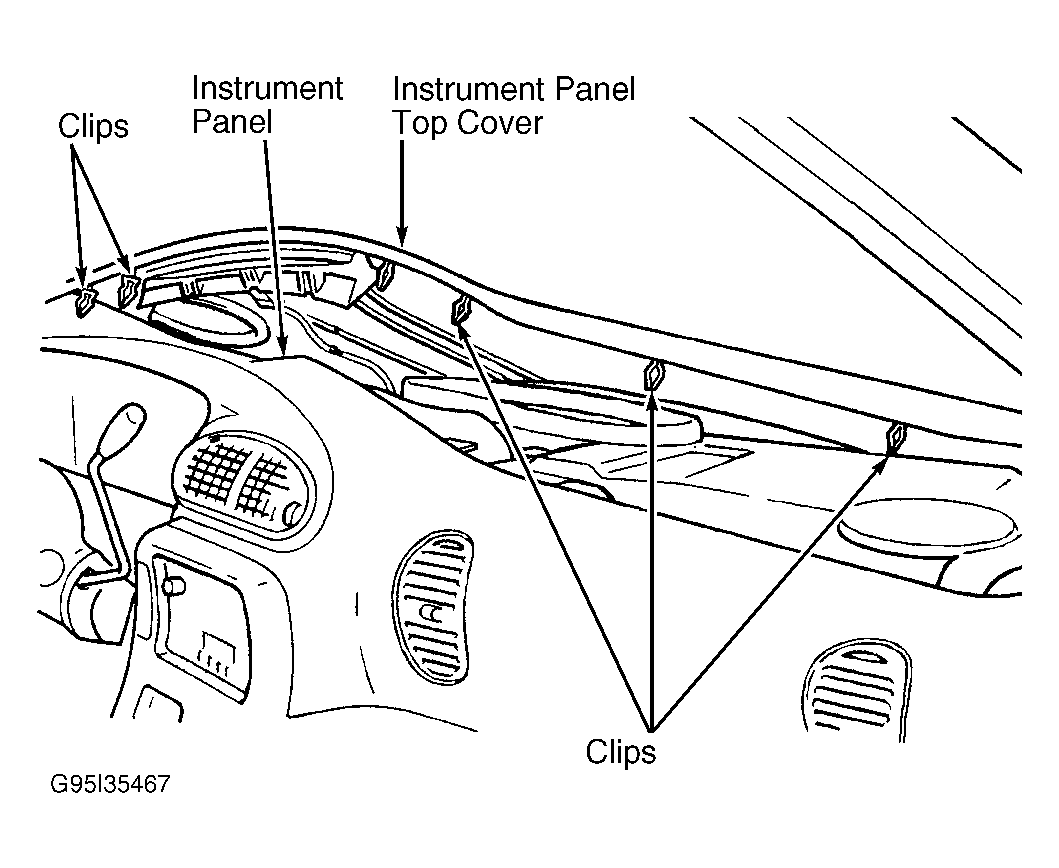

- Remove instrument panel top cover. See Fig 1.
- Remove screws holding RKE module to instrument panel.
- Disconnect wire connector from RKE module. See Figure.
- Remove the RKE module from vehicle.
- To install, reverse removal procedure.
Courtesy of DAIMLERCHRYSLER CORP.
