Antilock Brake Module: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

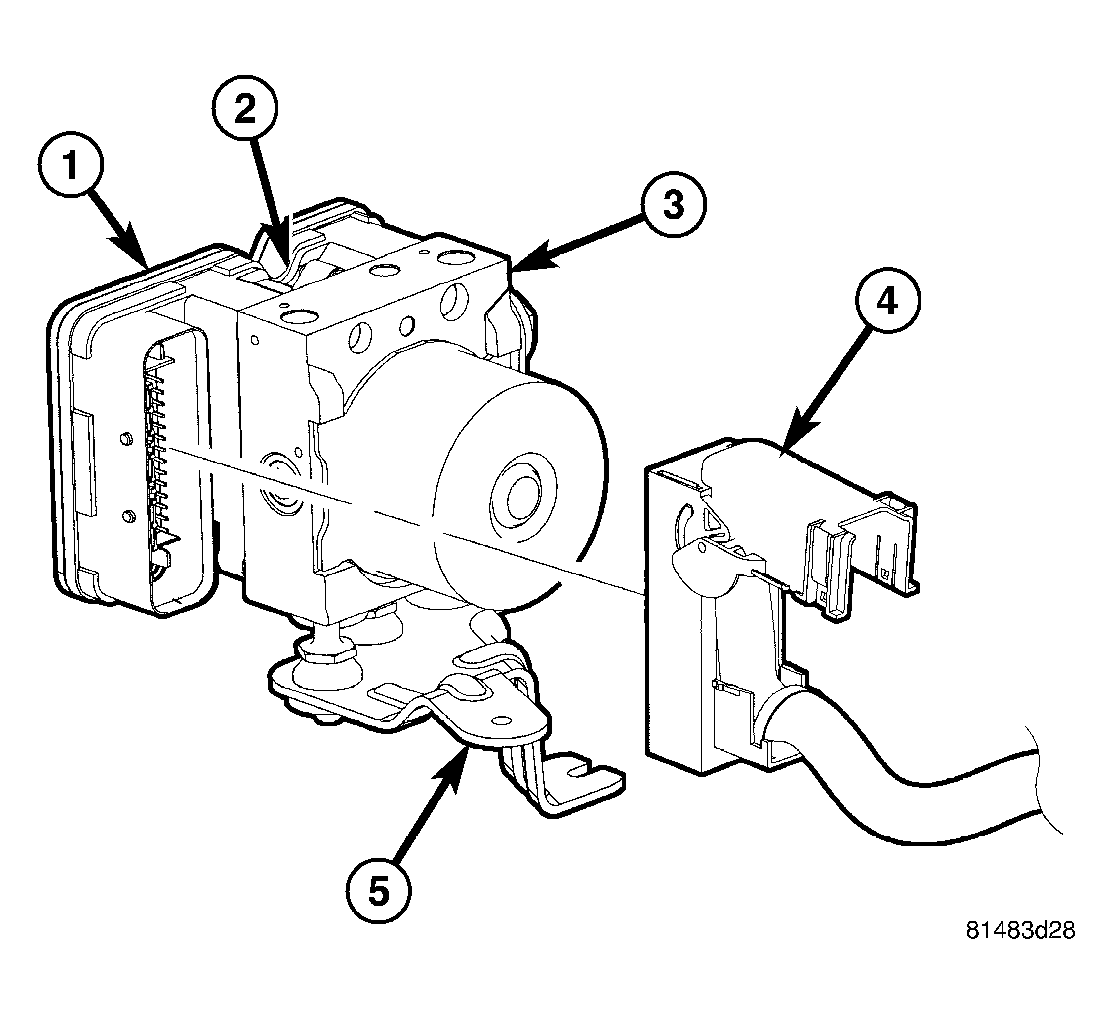

| 1 - ABM MODULE |
| 2 - ABM MODULE MOUNTING SCREWS |
| 3 - ABM UNIT |
| 4 - ELECTRICAL CONNECTOR |
| 5 - MOUNTING BRACKET |
The Antilock Brake Module (ABM) (1) is mounted to the Hydraulic Control Unit (HCU) (3) and operates the ABS system. See Fig 1.
