Front Control Module: Removal

WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative and positive battery cables from the battery.
Remove the battery (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .
Using a long flat-bladed screwdriver, gently twist the Integrated Power Module (IPM) retaining clip outboard to free the IPM from its mounting bracket. See Fig 1. Rotate IPM upward to access the Front Control Module (FCM) retaining screws.

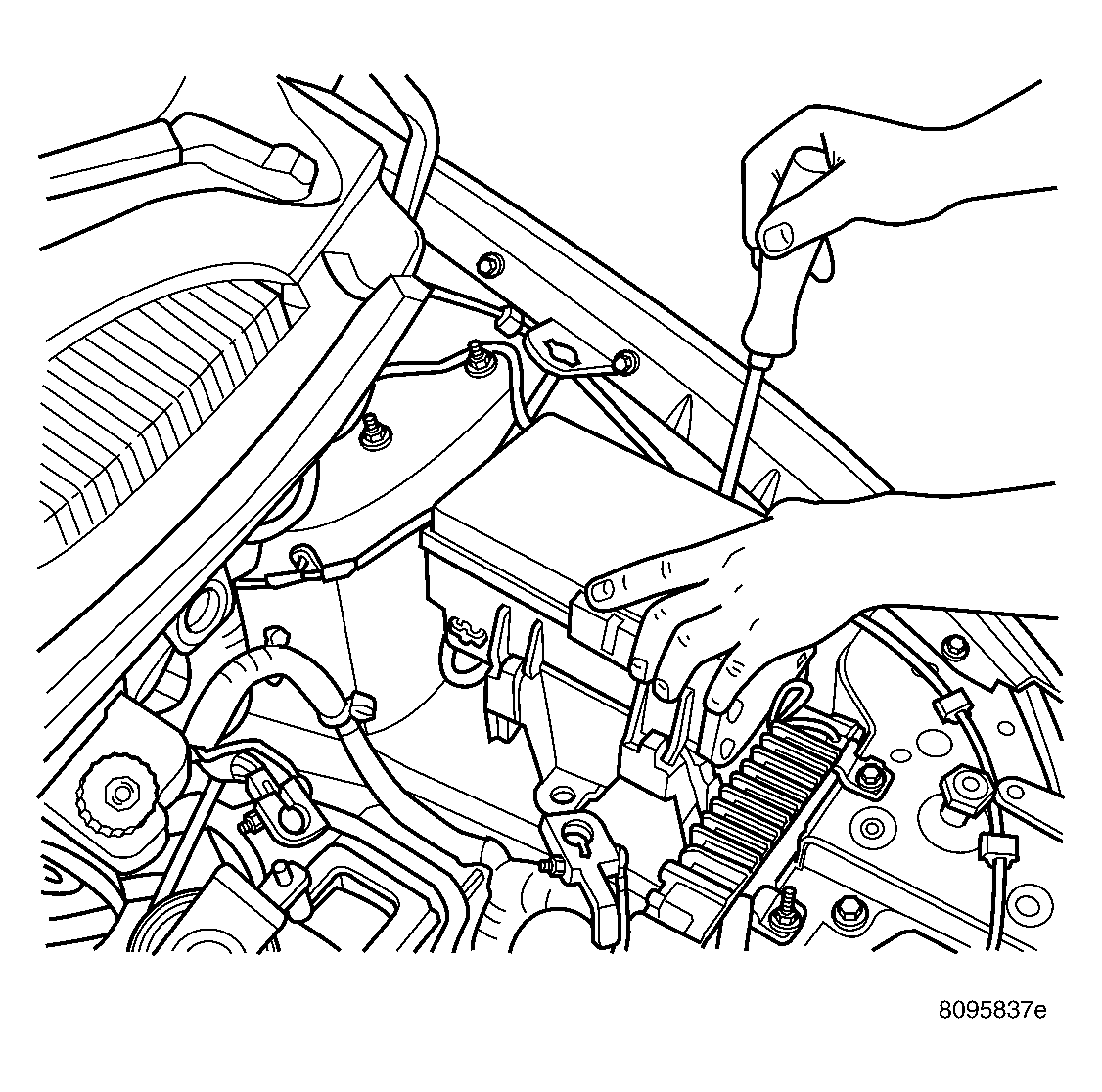

Fig 1: REMOVING INTEGRATED POWER MODULE
Courtesy of DAIMLERCHRYSLER CORP.
Remove the front control module retaining screws.
Pull the FCM straight from the IPM assembly to disconnect the electrical connector and remove the FCM from the vehicle. See Fig 2.

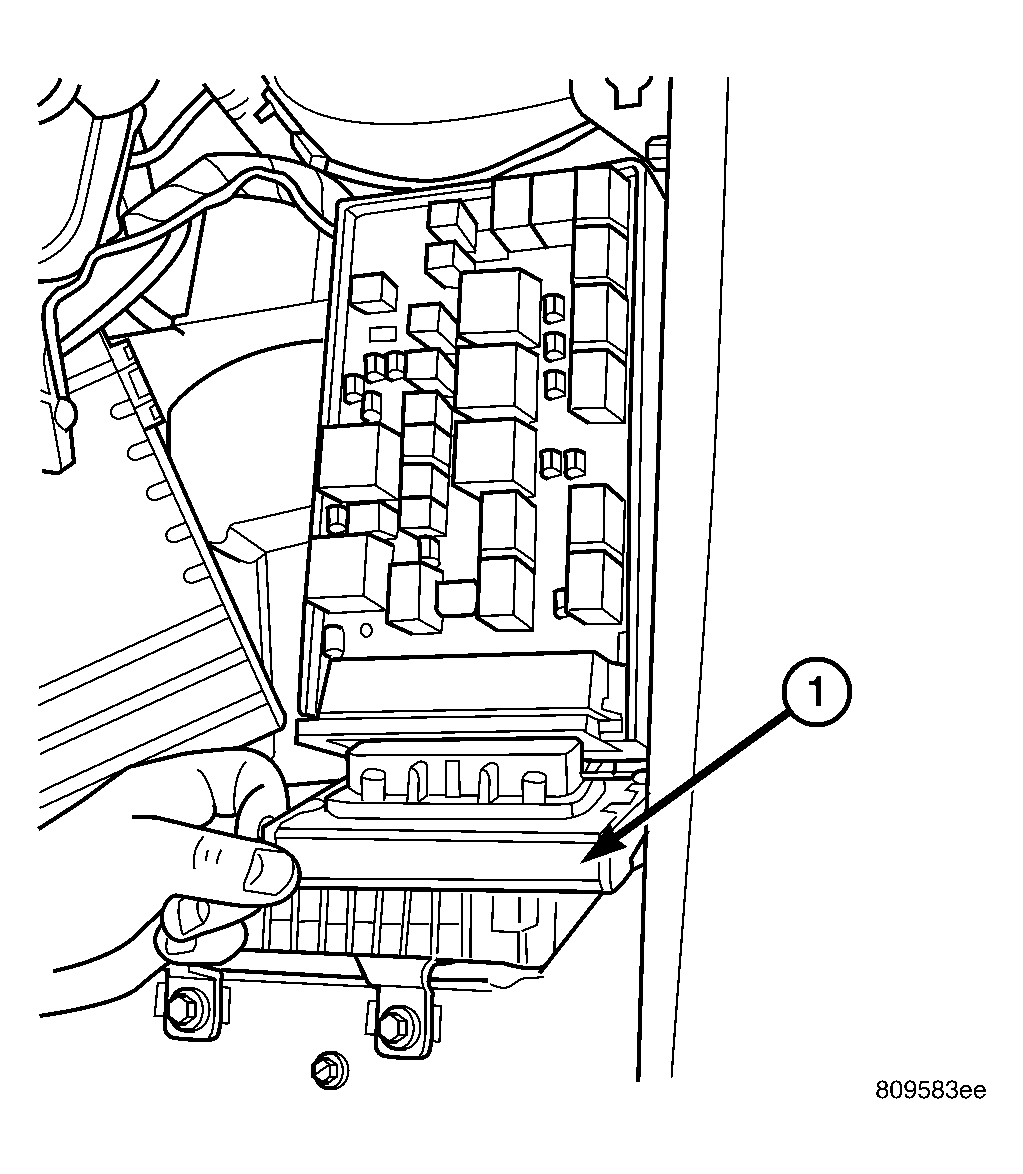

Fig 2: FRONT CONTROL MODULE

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT CONTROL MODULE
