Removal - SBEC Controller

WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the battery shield, refer to BATTERY SYSTEM for more information.
Remove the 2 upper PCM bracket bolts. See Fig 1.

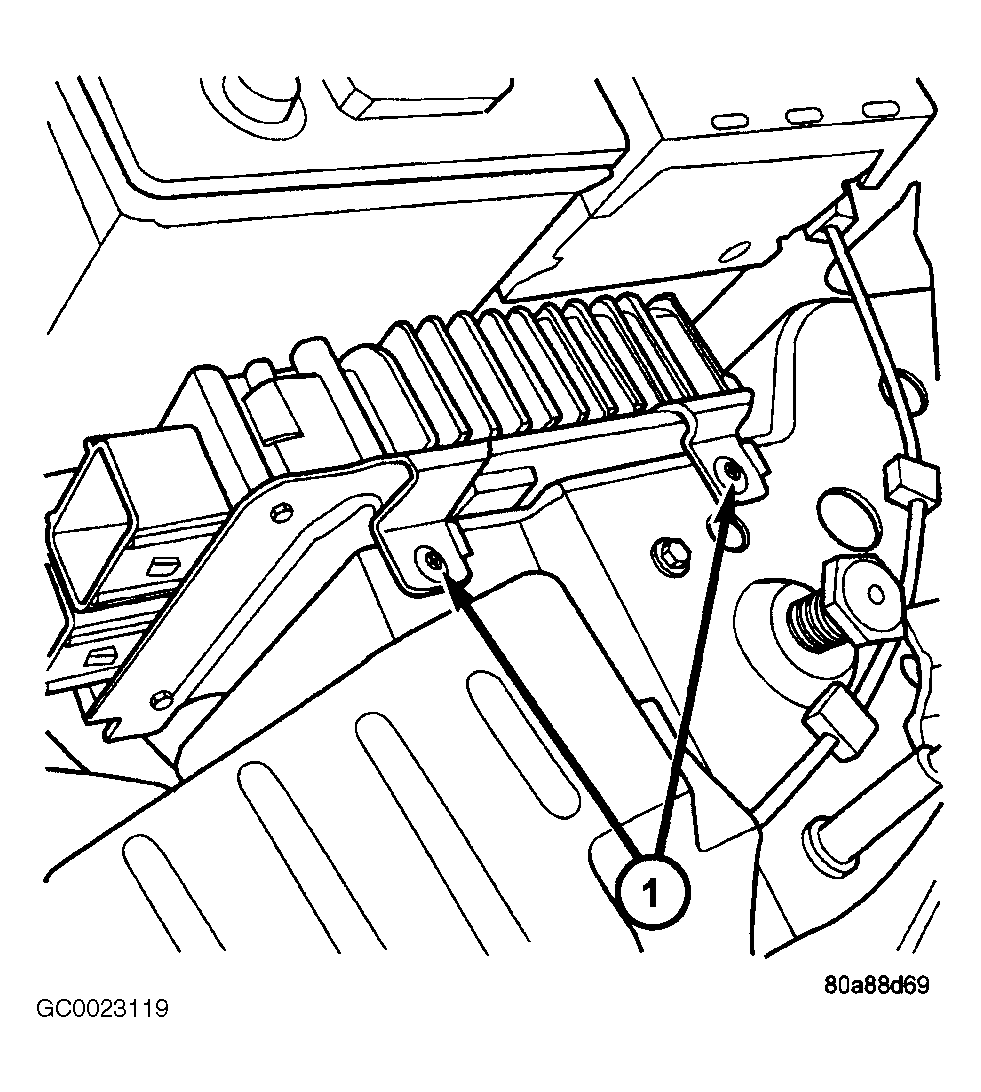

Fig 1: PCM
Courtesy of DAIMLERCHRYSLER CORP.

1 - Attaching Bolts
Remove the 2 PCM connectors.
Remove the headlamp, refer to HEADLAMP for more information.
Remove the lower PCM mounting bolt. See Fig 2.

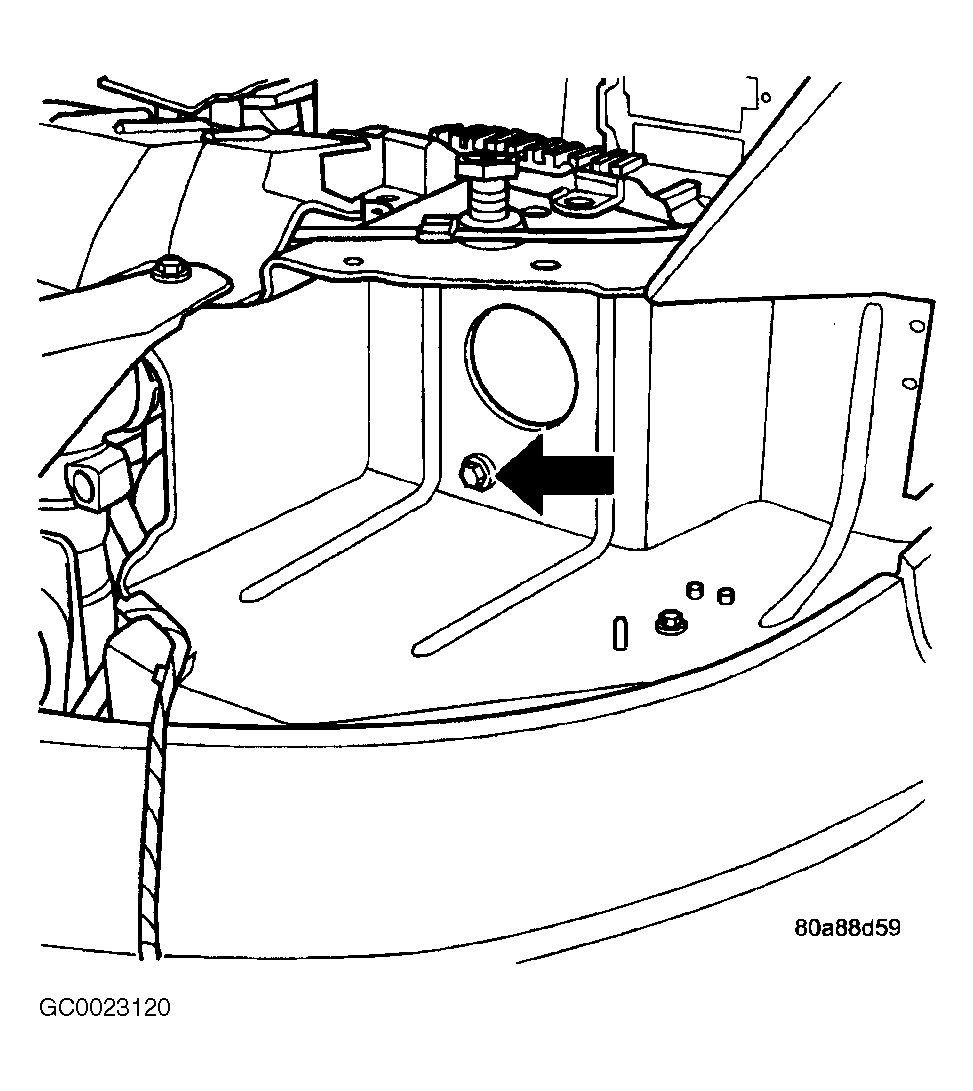

Fig 2: PCM LOWER BOLT
Courtesy of DAIMLERCHRYSLER CORP.
Remove PCM.
