Fuel Level Sending Unit
WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
- Noting their previous positions, connect wires from 2-wire harness into its connector.
- Plug 2-wire harness connector into pump module electrical connector.

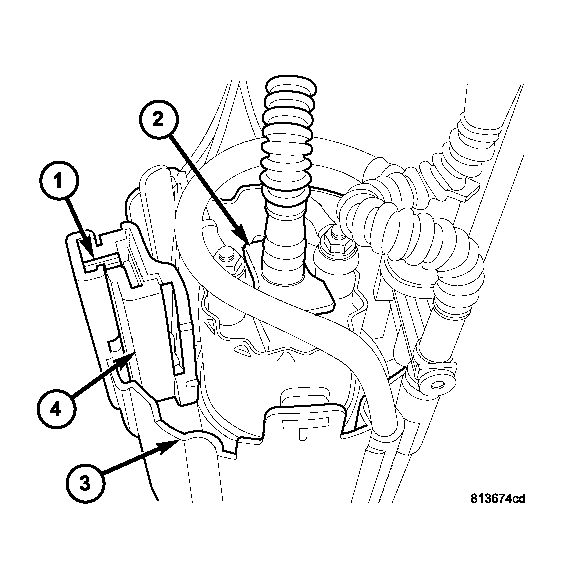

- Position sending unit (4) to tracks on fuel pump module. Slide and snap into place. See Fig 1.
- Install fuel pump module.
| 1 - RELEASE TABS |
| 2 - ELECTRIC FUEL PUMP |
| 3 - BOTTOM OF FUEL PUMP MODULE |
| 4 - SENDING UNIT |
