Test 13A: Repairing "No Response" From Powertrain Control Module

NOTE: Perform Test 1A  before proceeding. For Diagnostic flow chart, see Fig 1 . For Figure references within flow charts, refer to Fig 2 .

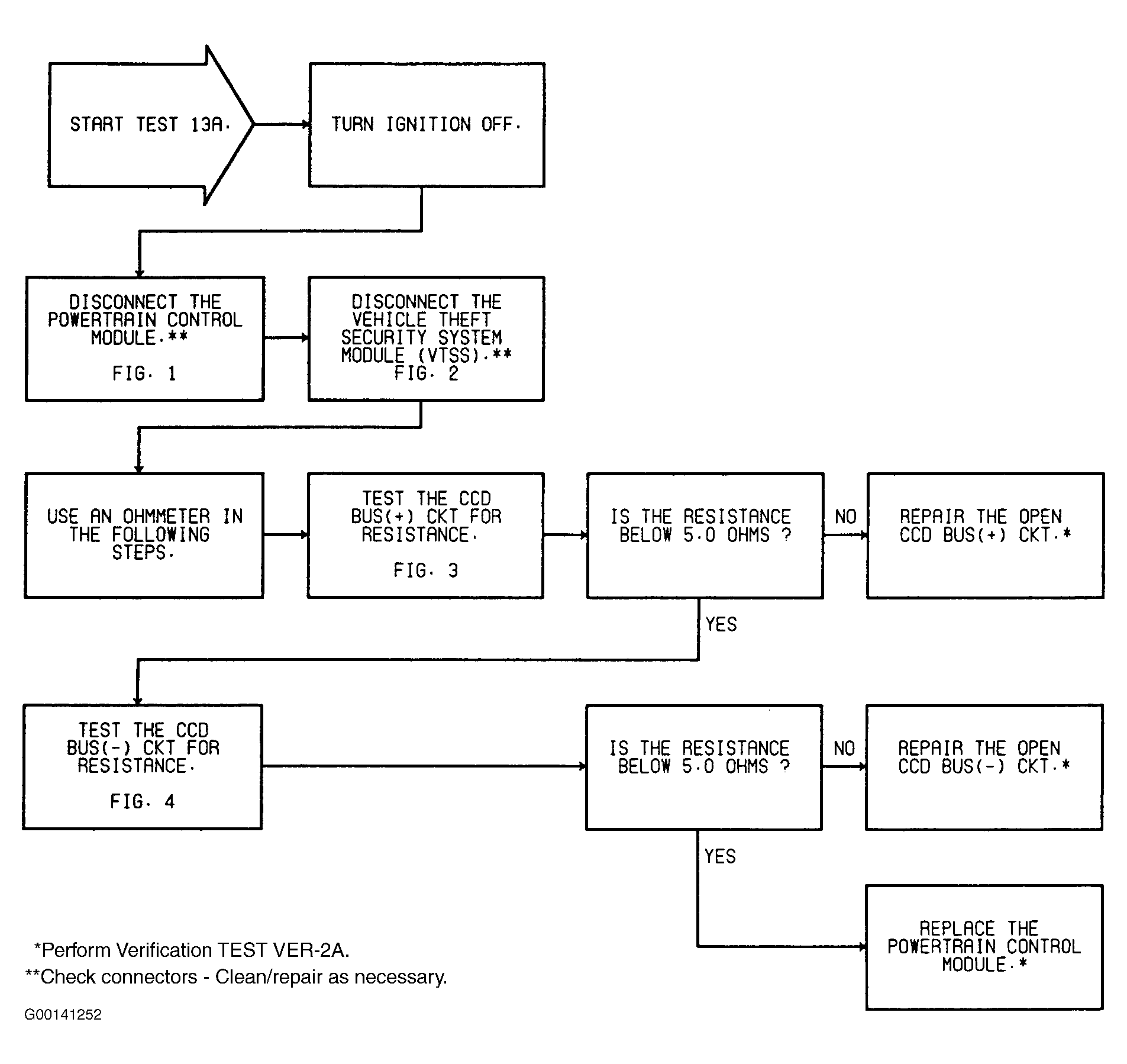

Fig 1: Test 13A: Repairing "No Response" From Powertrain Control Module Diagnostic Flow Chart

Courtesy of CHRYSLER CORP.

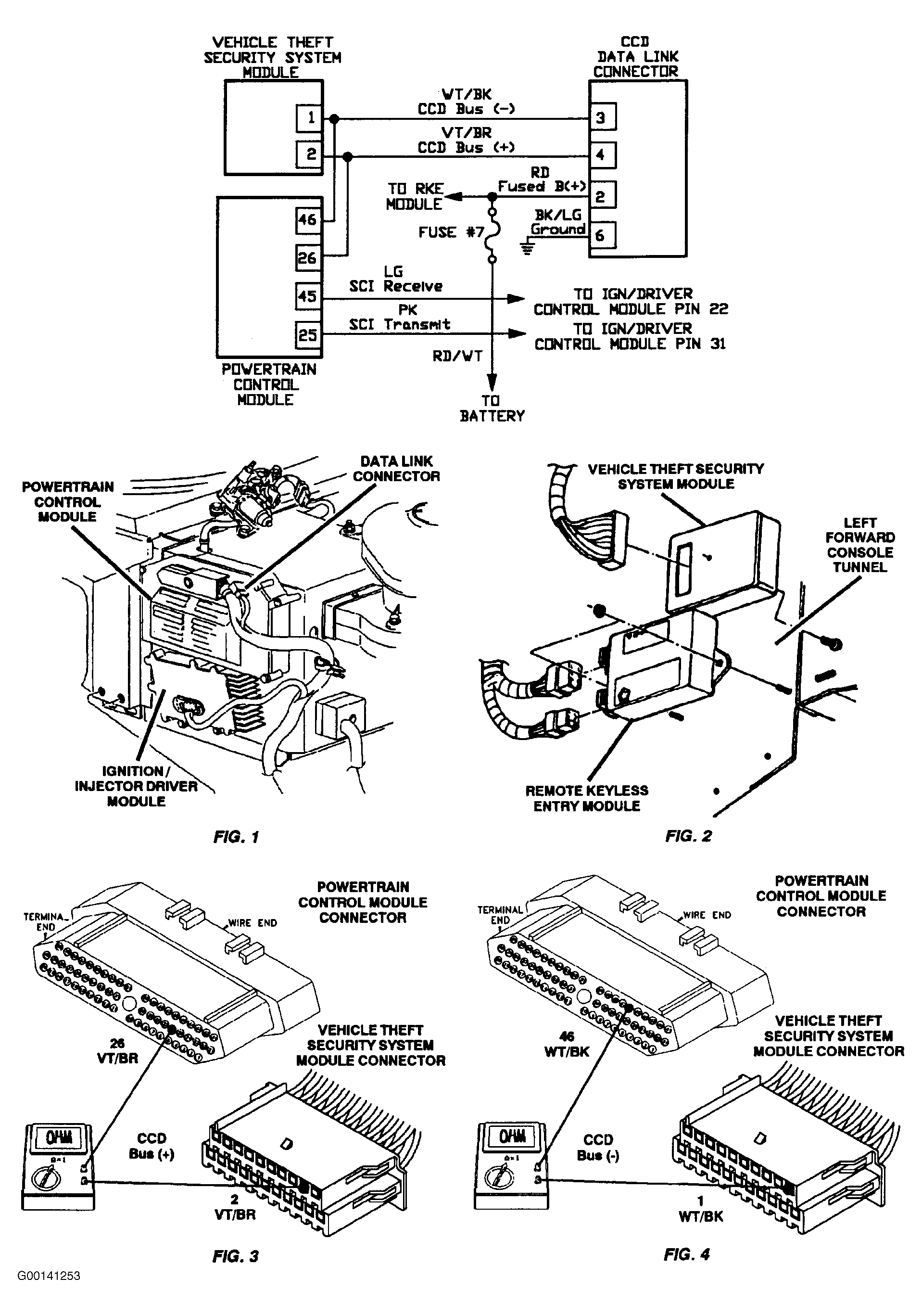

Fig 2: Test 13A: Circuit Connector Views & Component Locations

Courtesy of CHRYSLER CORP.
