Test 4A: Repairing Ignition Switch Output Circuit To VTSS Module (Run/Start)

NOTE: Perform Test 1A  before proceeding. For Diagnostic flow chart, see Fig 1 and Fig 2 . For Figure references within flow charts, refer to Fig 3 .

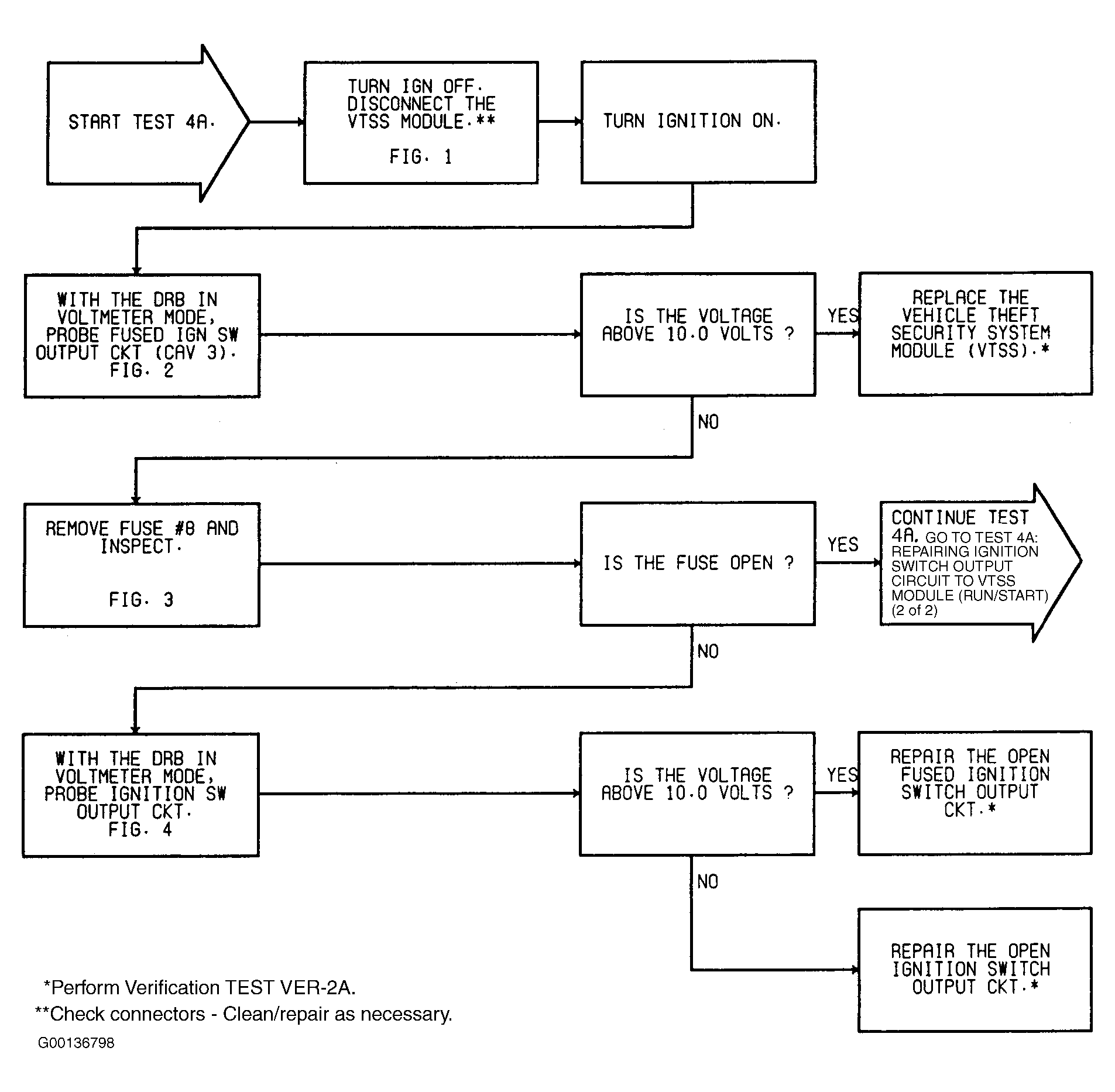

Fig 1: Test 4A: Repairing Ignition Switch Output Circuit To VTSS Module (RUN/START) Diagnostic Flow Chart (1 Of 2)

Courtesy of CHRYSLER CORP.

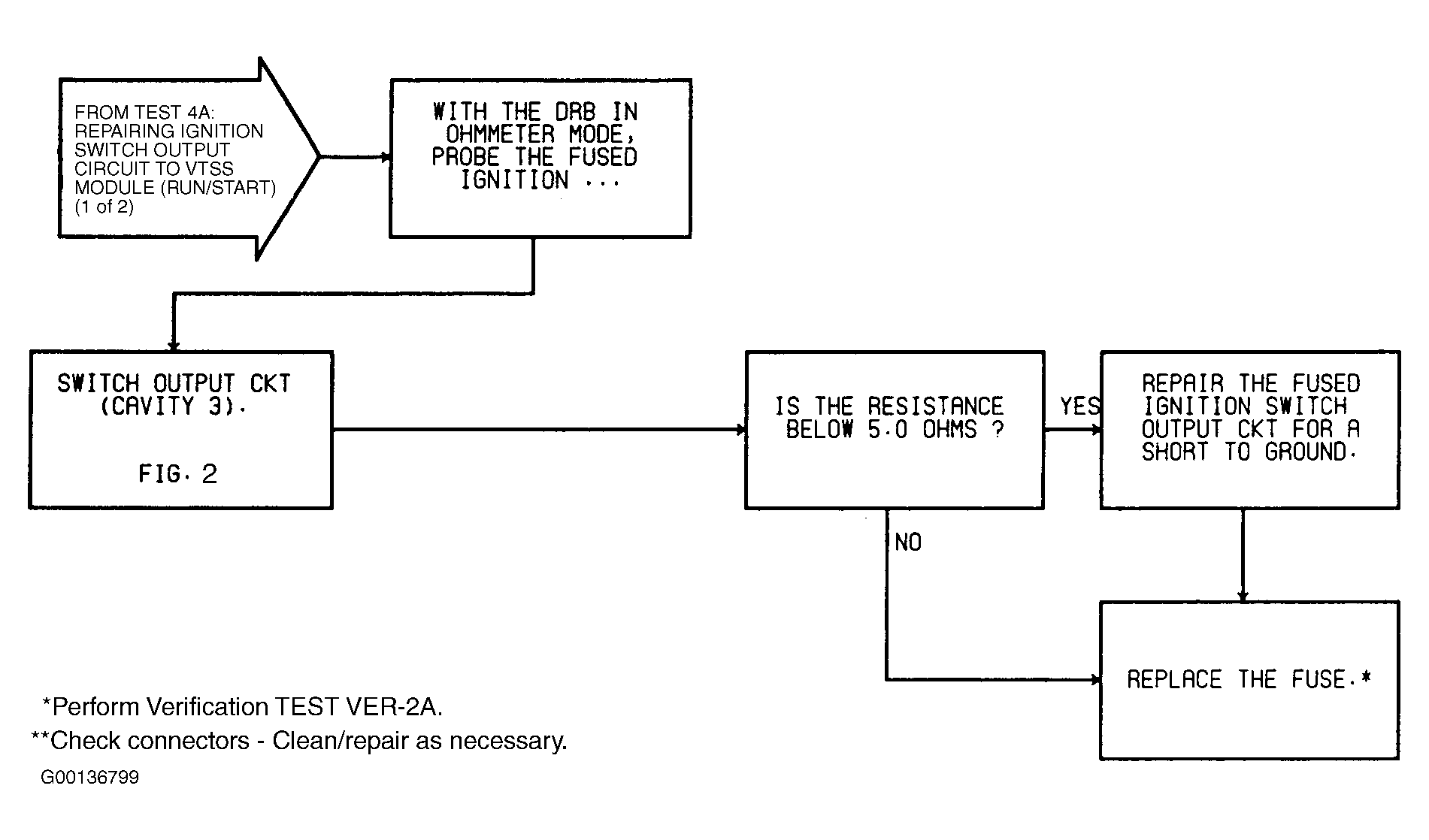

Fig 2: Test 4A: Repairing Ignition Switch Output Circuit To VTSS Module (RUN/START) Diagnostic Flow Chart (2 Of 2)

Courtesy of CHRYSLER CORP.

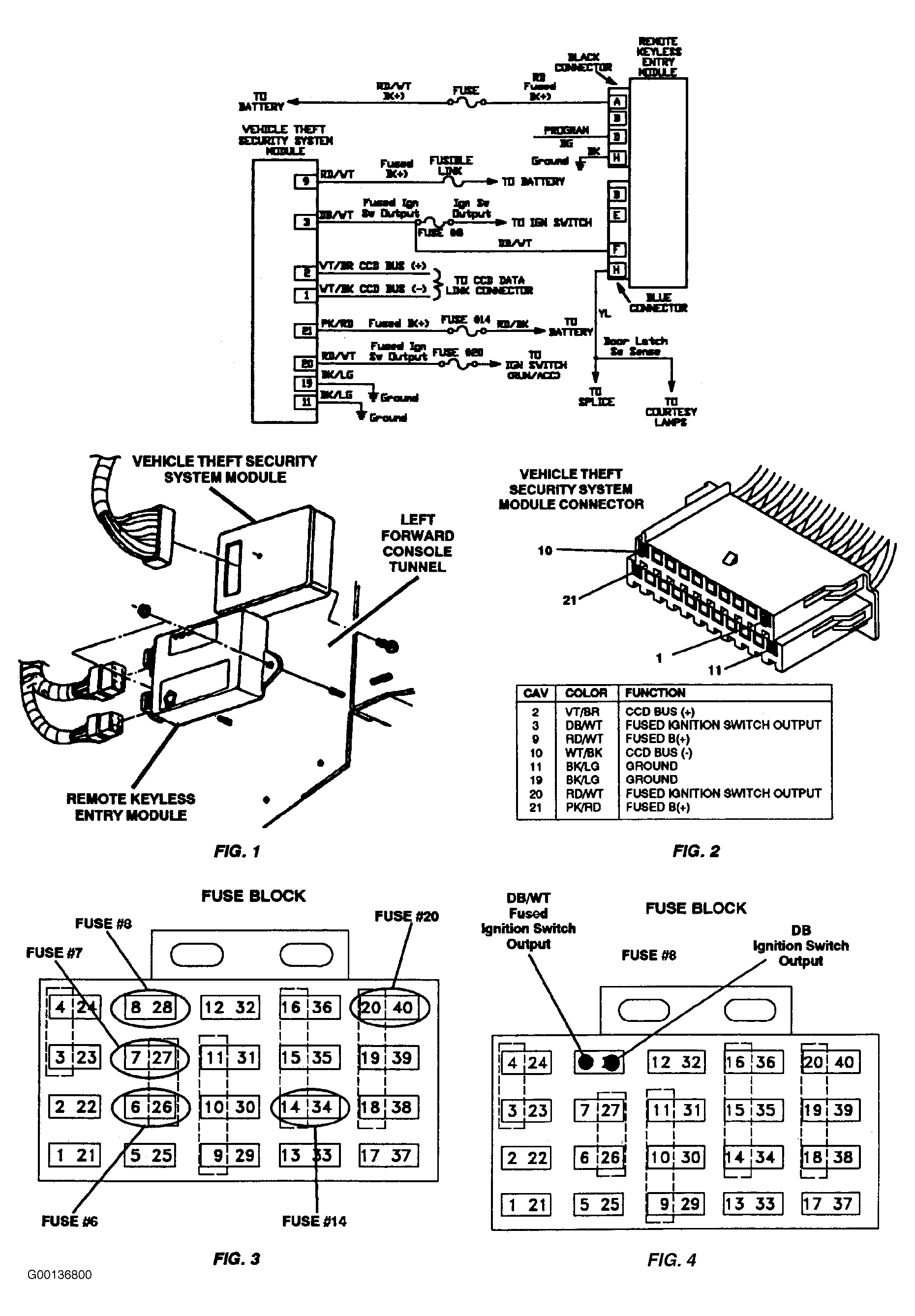

Fig 3: Test 4A: Circuit Connector Views & Component Locations

Courtesy of CHRYSLER CORP.
