Controller Anti-Lock Brake (CAB) Module Connector C1 End View

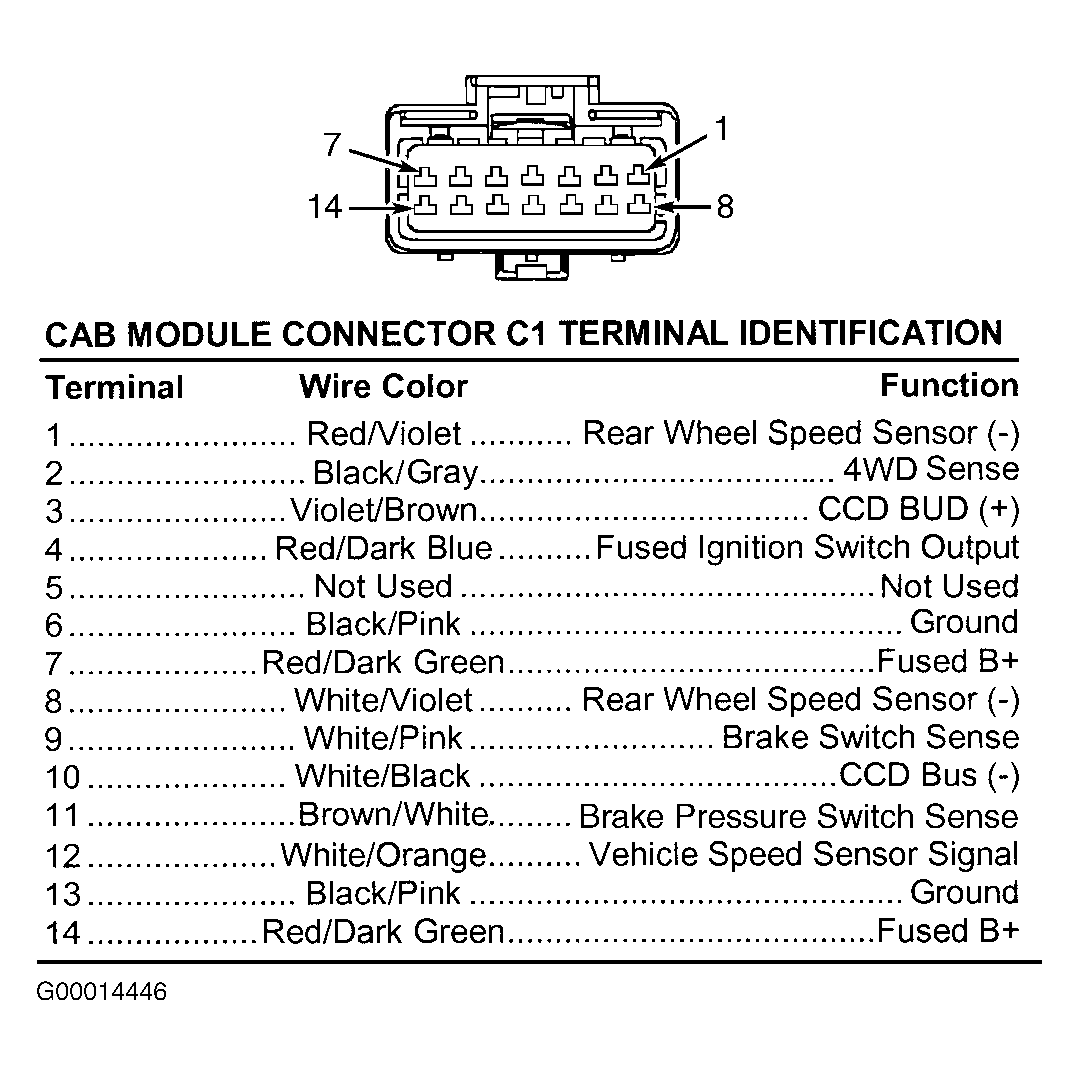

Fig 1: Identifying Controller Anti-Lock Brake (CAB) Module Connector C1 Terminals
G00014446Courtesy of DAIMLERCHRYSLER CORPORATION
