Modular Clutch: Installation

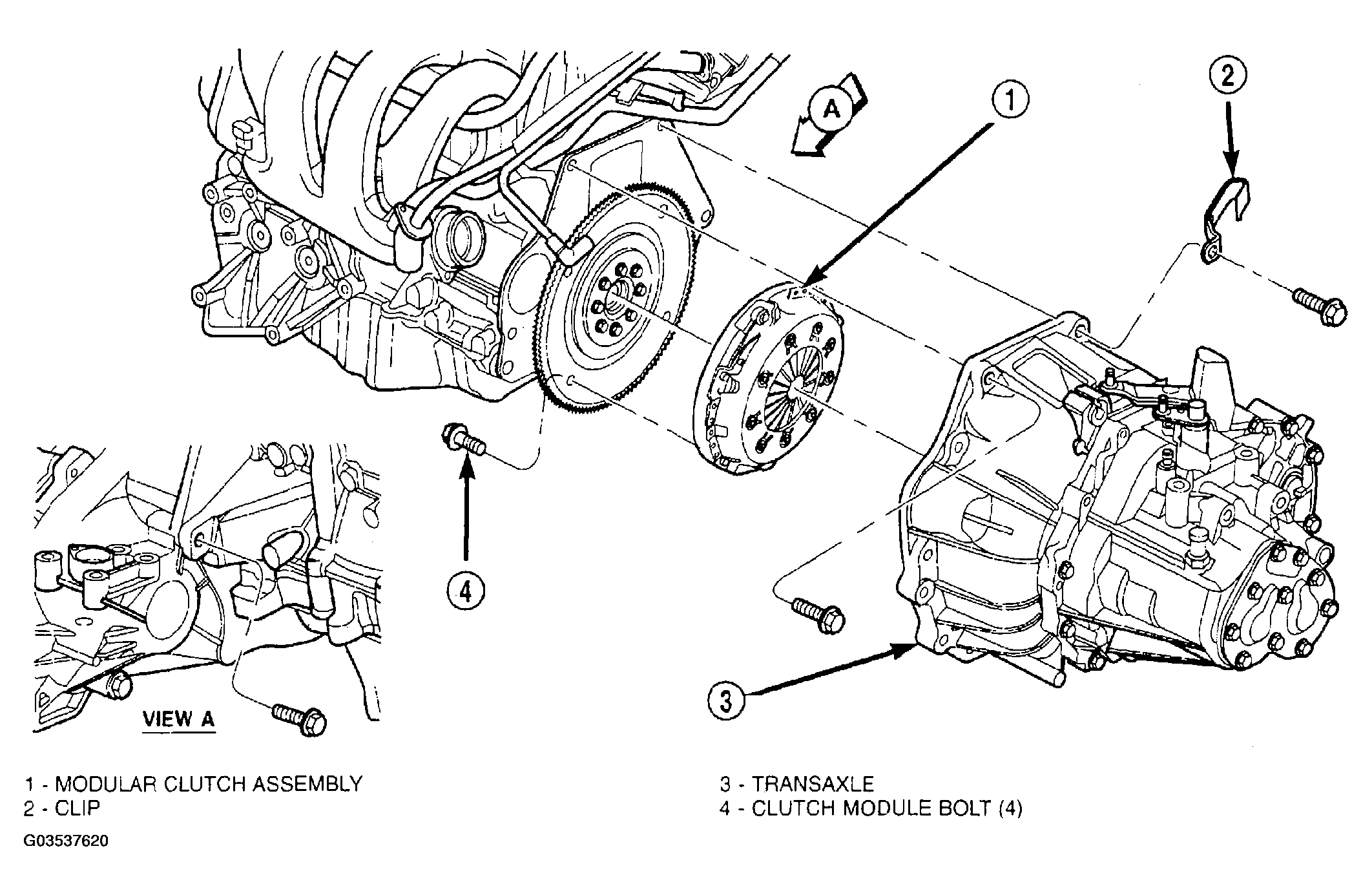

  1. Install clutch module (Figure) onto input shaft.
  2. Install transaxle into vehicle. (Refer to INSTALLATION or T850 MANUAL TRANSAXLE ).
