Fuel Level Sensor: Removal

Remove fuel pump module. Refer to FUEL PUMP MODULE  in this section (Fig 1 ).

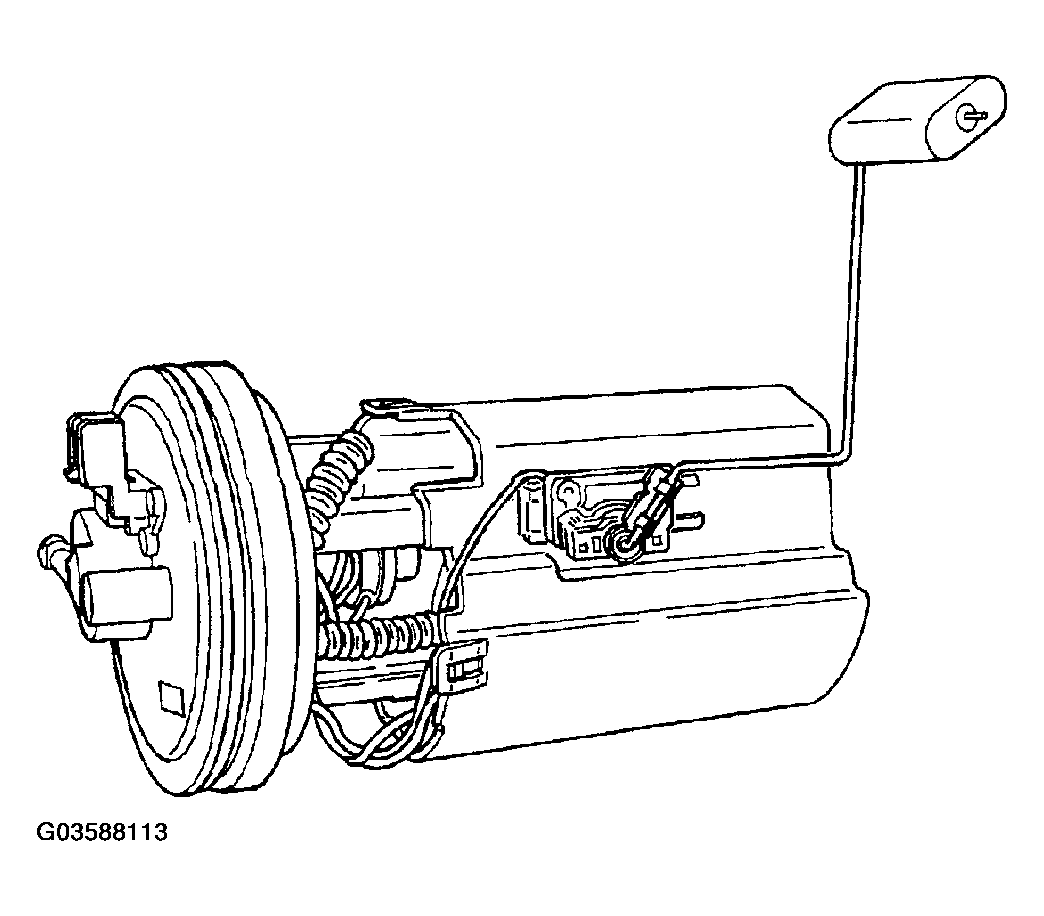

Fig 1: Identifying Fuel Pump Module

Courtesy of DAIMLERCHRYSLER CORP.

1. Depress retaining tab and remove the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector (Fig 2 ).

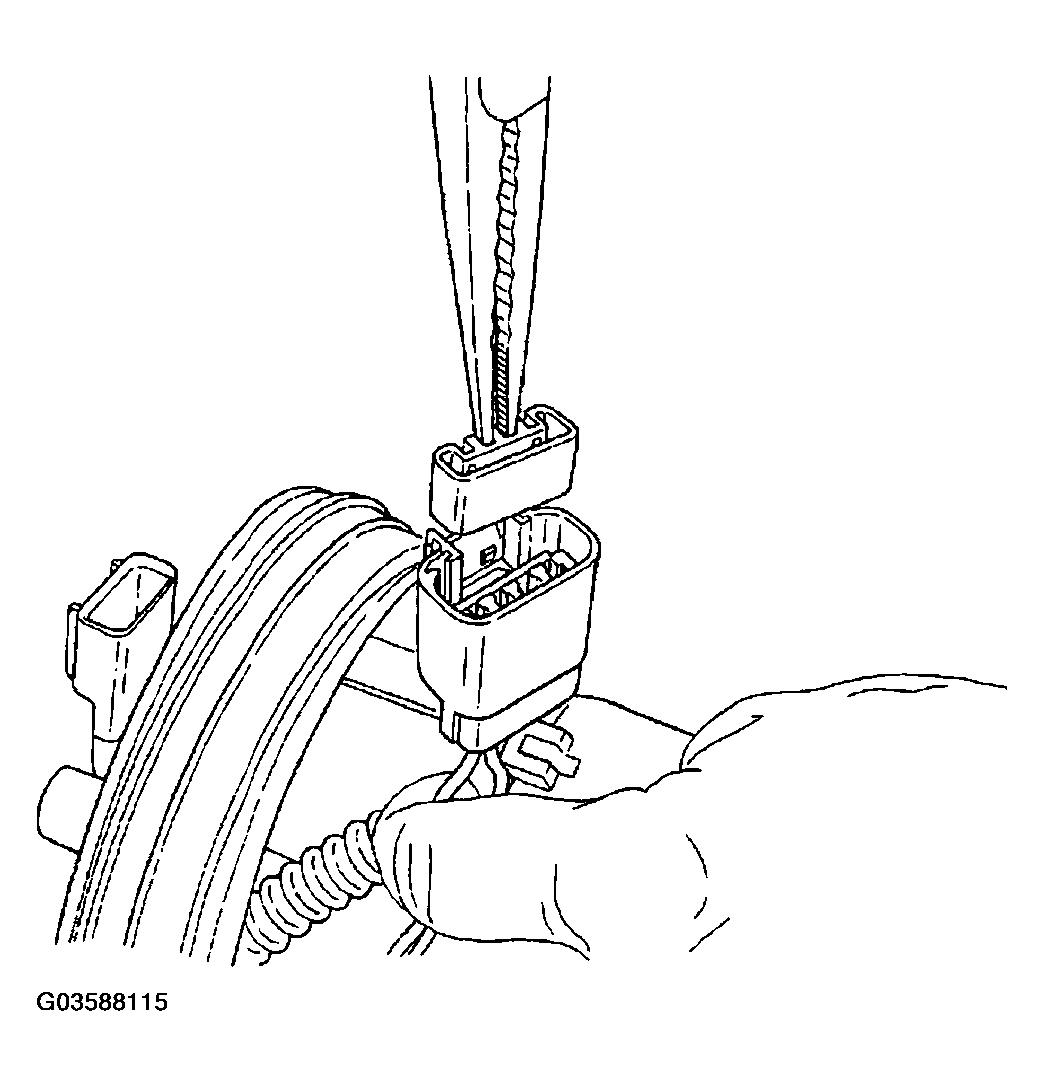

   Fig 2: Disconnecting Fuel Pump/Level Sensor Electrical Connector

   Courtesy of DAIMLERCHRYSLER CORP.
2. Pull out the locking wedge (Fig 3 )

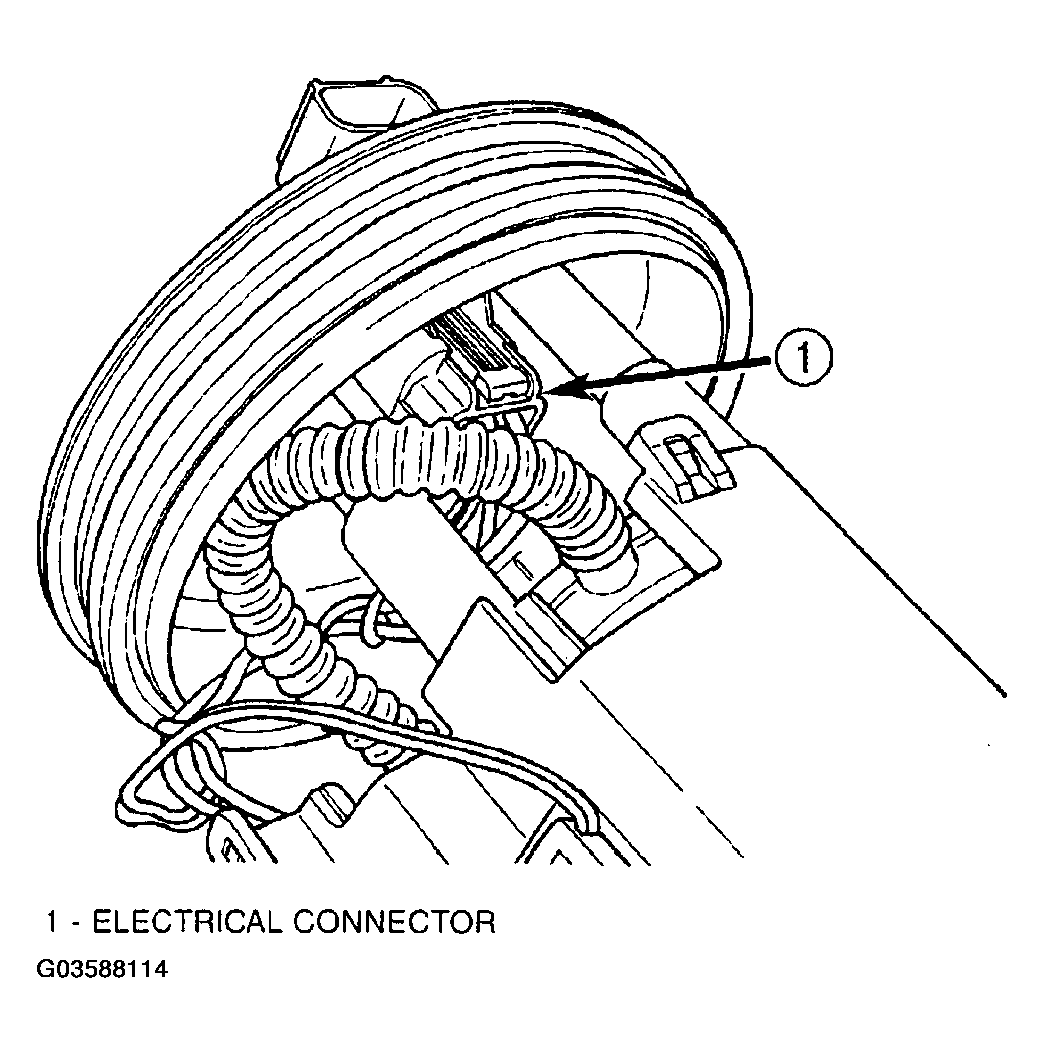

   Fig 3: Pulling Out Locking Wedge

   Courtesy of DAIMLERCHRYSLER CORP.
3. Using a small screwdriver lift locking finger away from terminal and push terminal out of connector (Fig 4 ).

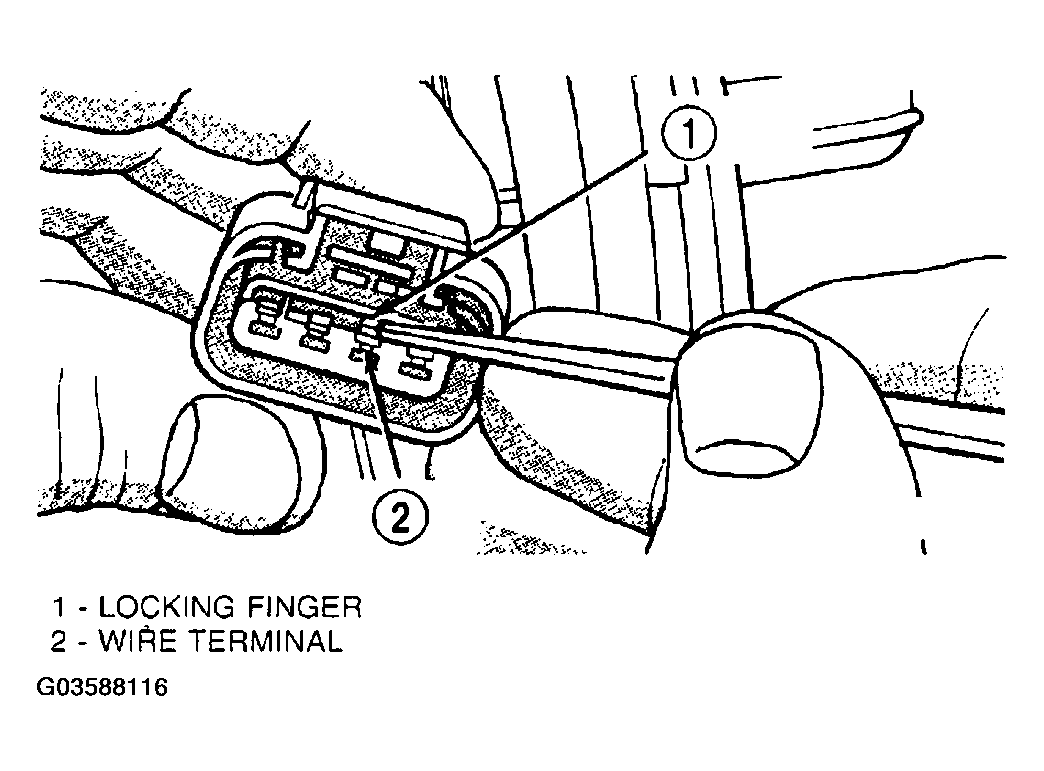

   Fig 4: Removing Wire Terminal Locking Finger

   Courtesy of DAIMLERCHRYSLER CORP.
4. Push level sensor signal and ground terminals out of the connector (Fig 4 ).
5. Push down on the tab and push level sensor down and out of channel on the side of the pump module (Fig 5 ).

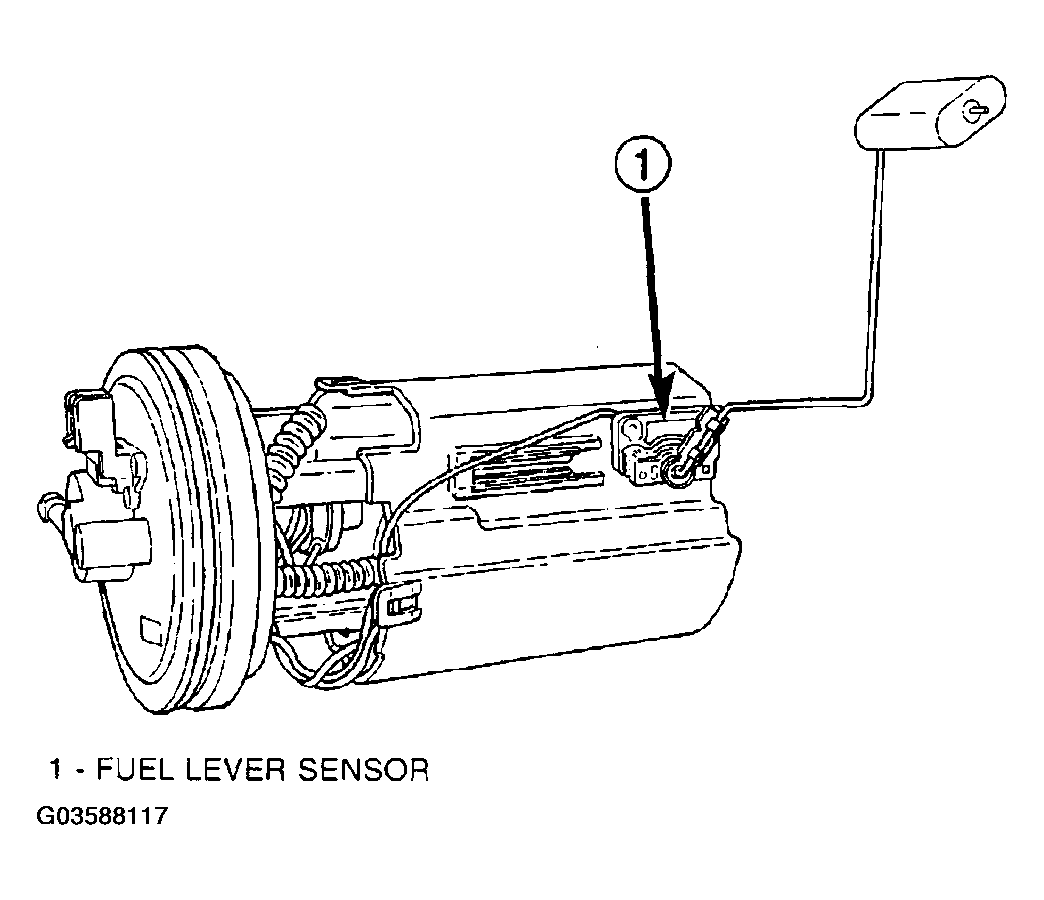

   Fig 5: Identifying Fuel Level Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
