Component Locations

For additional component location information, see Fig 1 -Fig 6 .

COMPONENT LOCATIONS

Name

Location

Accelerator Pedal Switch (A/T)

At Base Of Accelerator Lever. See Fig 2 .

Auto-Cruise Control Actuator

Left Side Of Engine Compartment On Firewall. See Fig 1 .

Auto-Cruise Control Switch

On Steering Column Multi Switch

Auto-Cruise Control Unit

Under Left Side Of Dash, Next To Fuse Block. See Fig 3 .

Auto-Cruise Indicator Light

Lower Left Corner Of Instrument Panel

Body Ground No. 6 ⁽¹⁾

Behind Instrument Cluster, On Dash Support Bar.

Body Ground No. 8 ⁽¹⁾

Behind Center Console, Right Side.

Clutch Pedal Switch (M/T)

At Base Of Clutch Pedal. See Fig 3 .

Inhibitor Switch (A/T)

Right Front Of Transaxle, Below Battery. See Fig 1

Junction Block

Under Driver's Side Of Instrument Panel. See Fig 7 .

Overdrive Switch (A/T)

On Back Side Of Shift Lever. See Fig 2 .

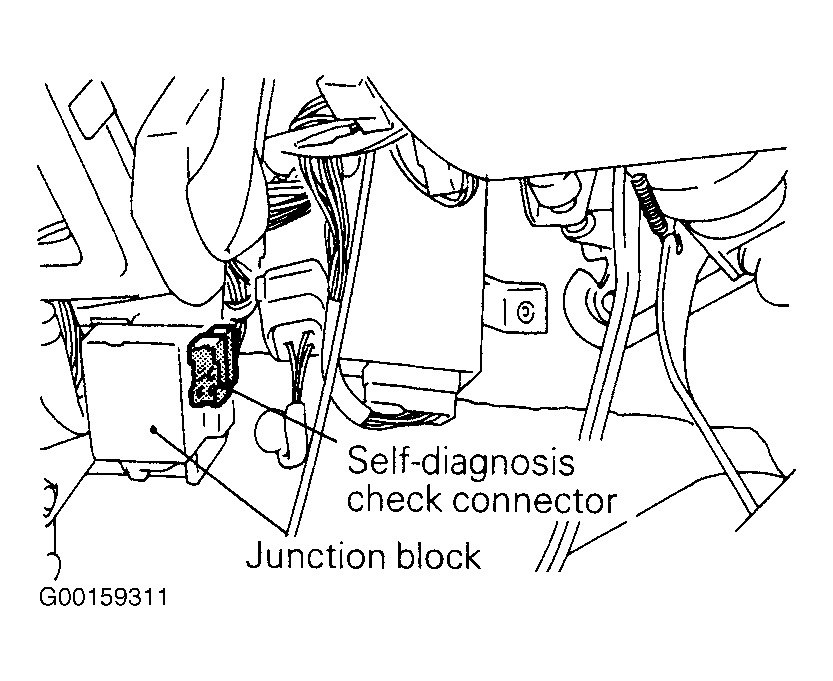

Self-Diagnosis Check Connector

Under Driver's Side Of Instrument Panel. See Figure .

Stop Light Switch (A/T)

At Base Of Parking Brake Lever. See Fig 3 .

Vehicle Speed Sensor (Reed Switch)

On Rear Of Speedometer Assembly. See Fig 2 .

4-A/T Control Unit

Behind Center Console Panel. See Fig 2 .

⁽¹⁾	See WIRING DIAGRAMS .

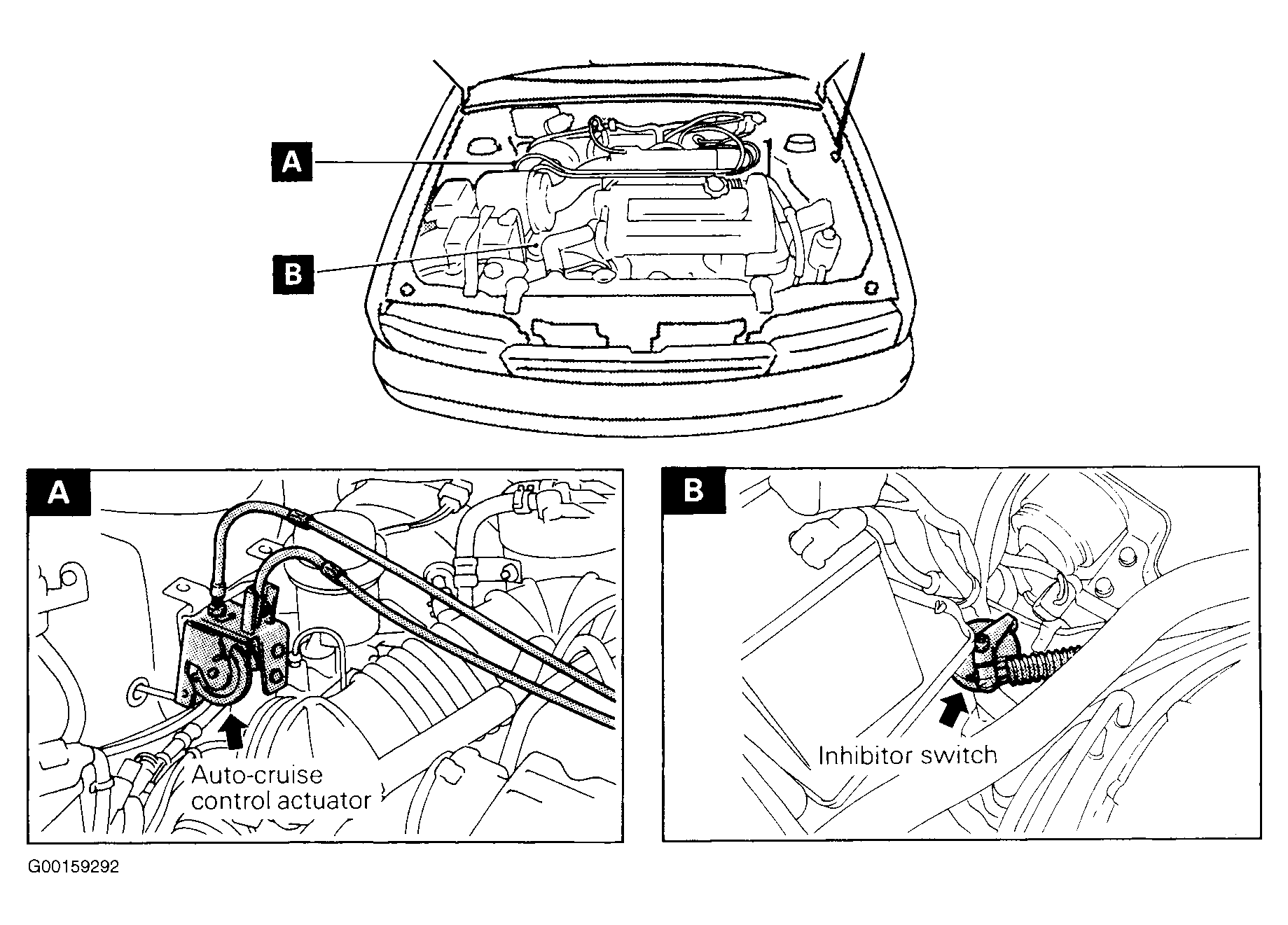

Fig 1: Identifying Engine Compartment Component Locations

Courtesy of CHRYSLER CORP.

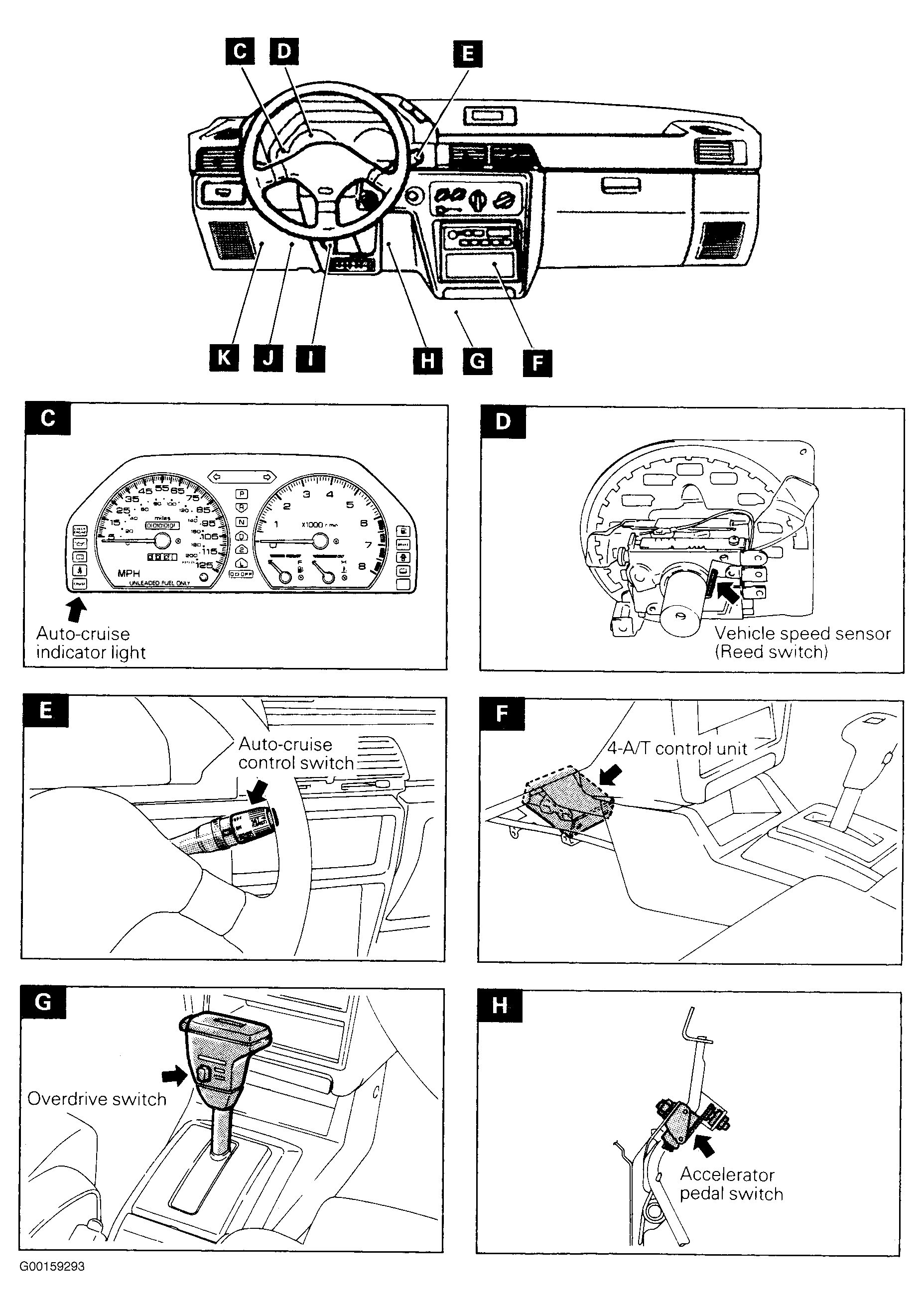

Fig 2: Identifying Interior Component Locations (1 Of 2)

Courtesy of CHRYSLER CORP.

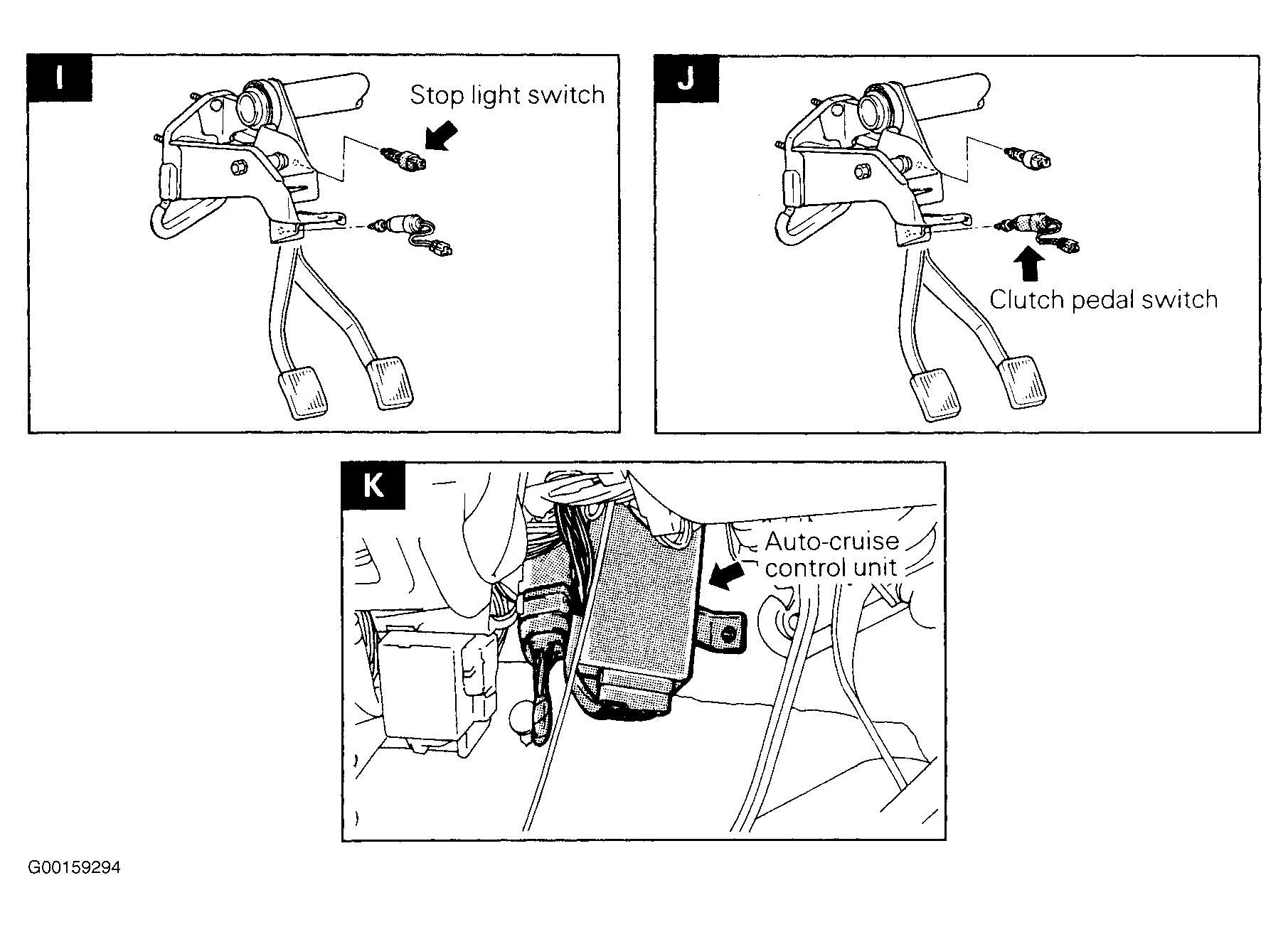

Fig 3: Identifying Interior Component Locations (2 Of 2)

Courtesy of CHRYSLER CORP.

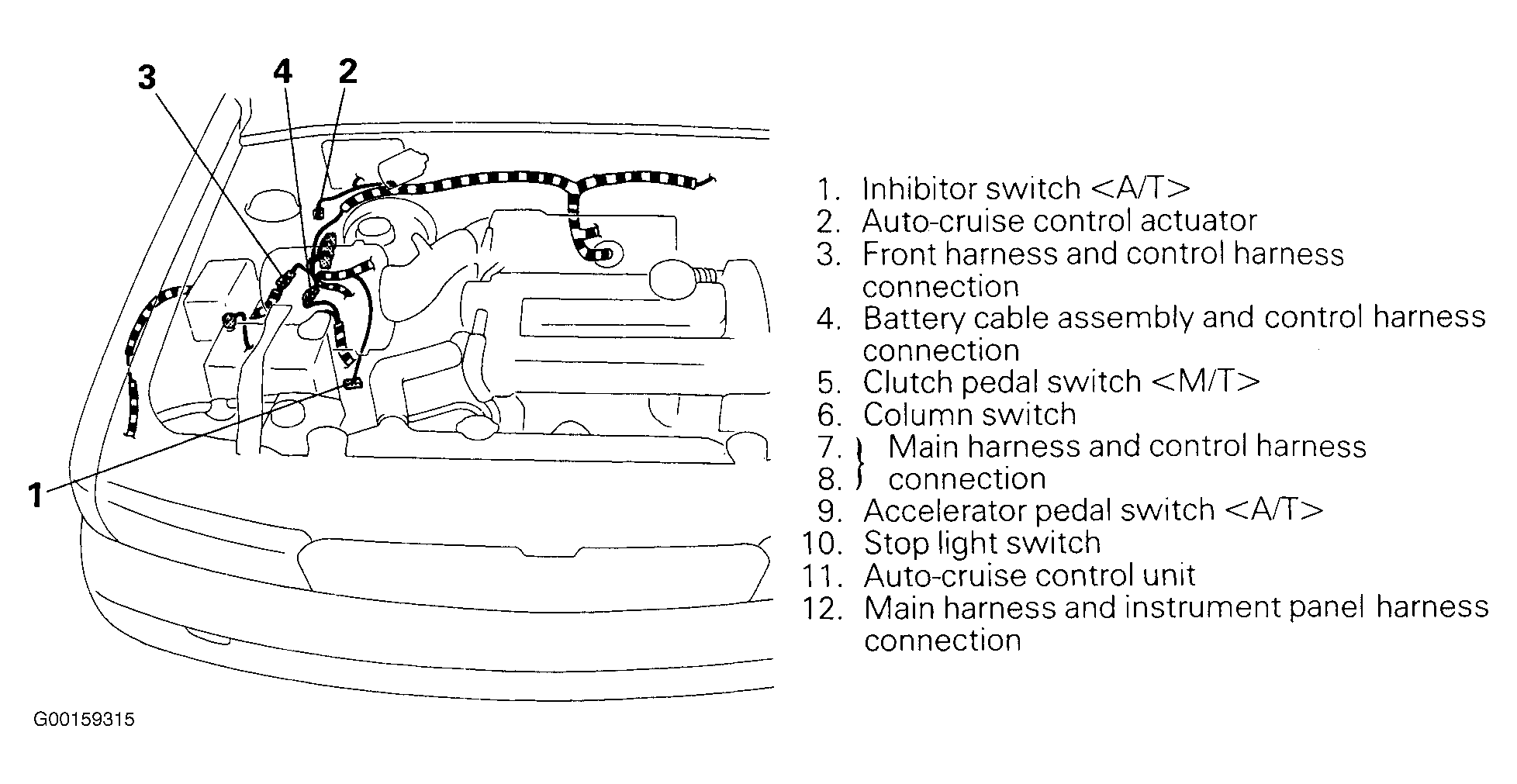

Fig 4: Identifying Control Related Harness In Engine Compartment

Courtesy of CHRYSLER CORP.

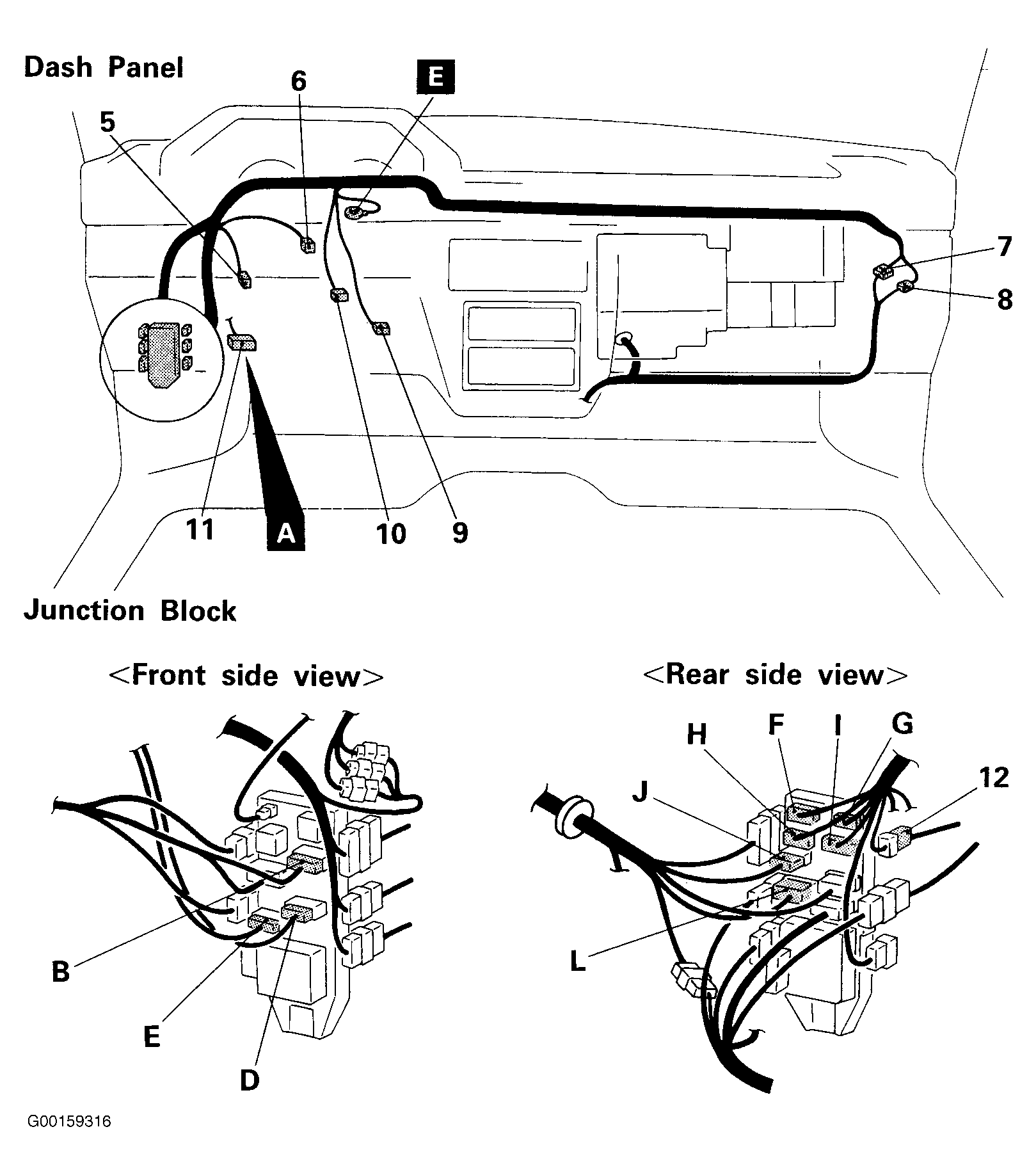

Fig 5: Identifying Control Related Harness Inside Cabin

Courtesy of CHRYSLER CORP.

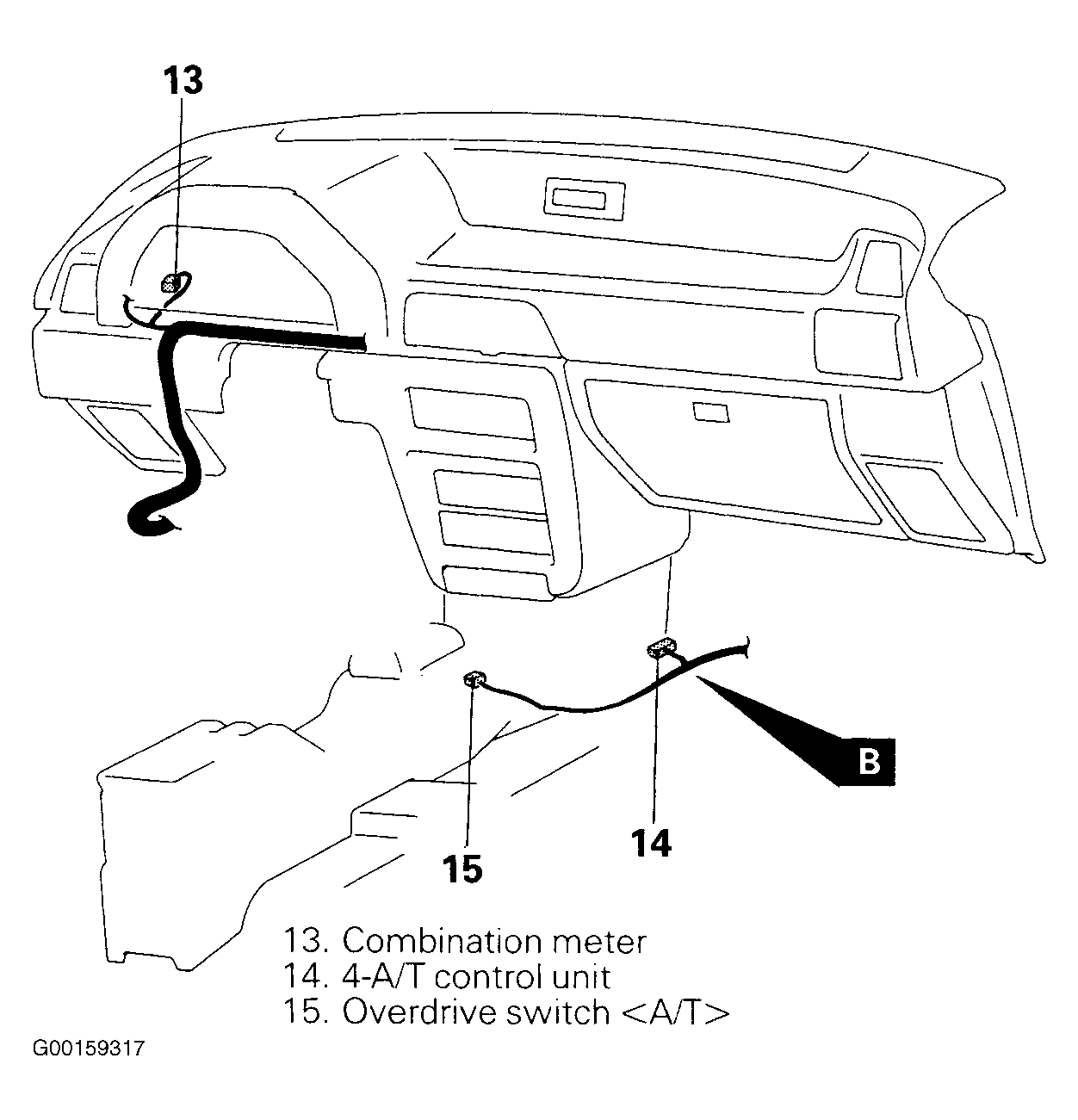

Fig 6: Identifying Control Related Harness In Instrument Panel & Floor Console

Courtesy of CHRYSLER CORP.

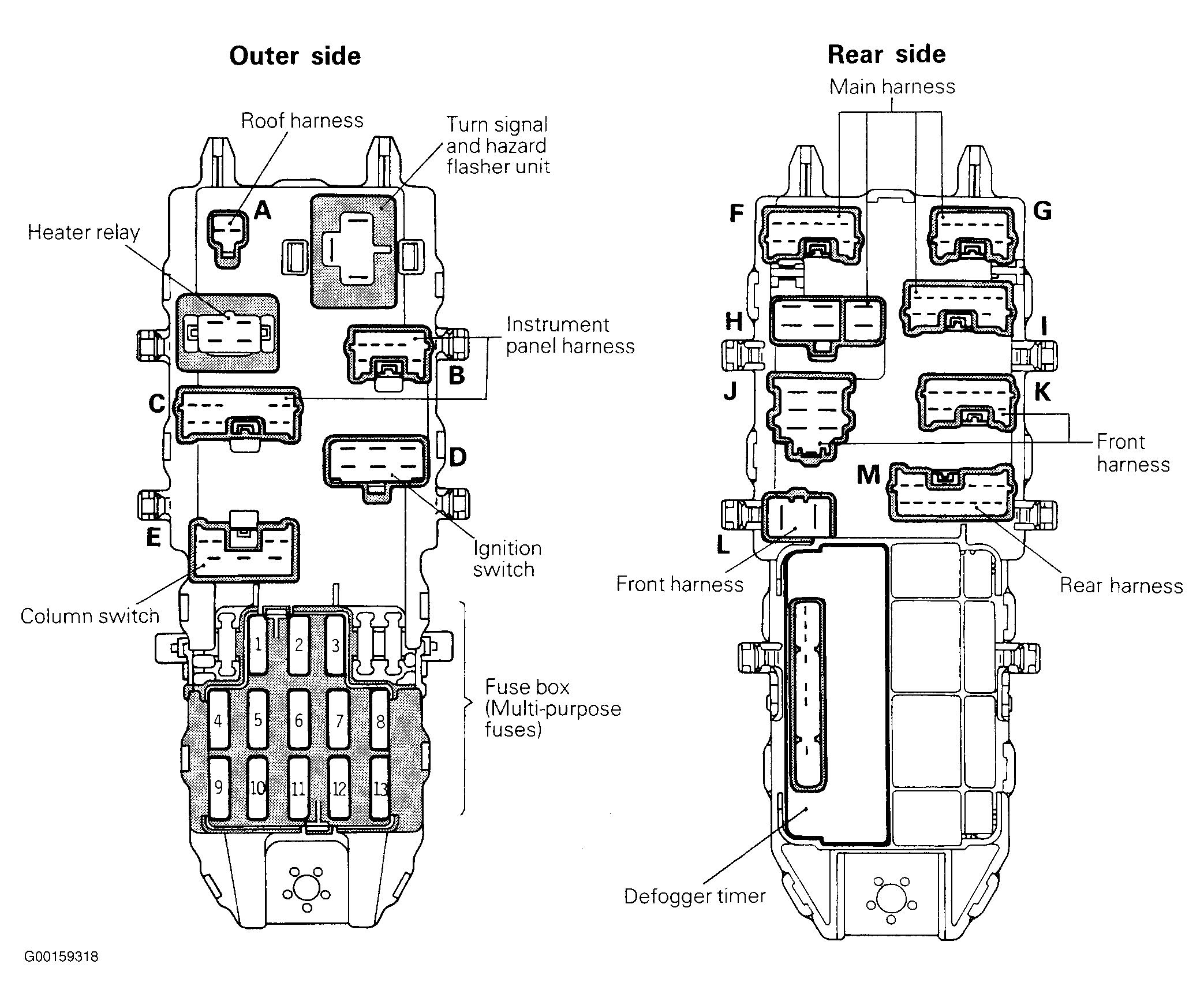

Fig 7: Identifying Junction Block Components

Courtesy of CHRYSLER CORP.
