Idle Position Switch (IPS)

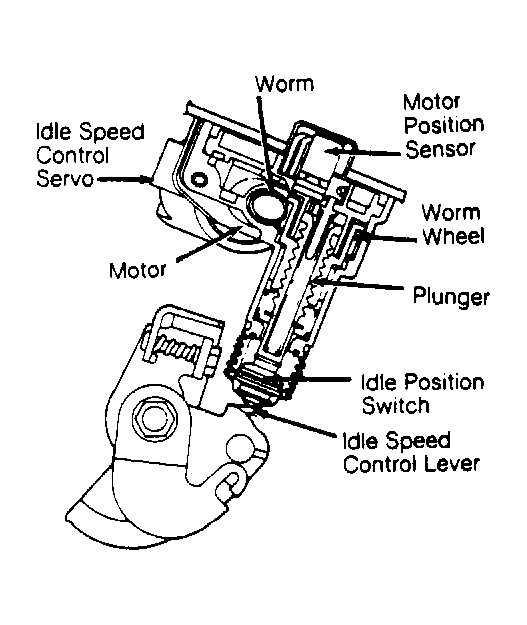

On 2.0L engines, IPS is located on throttle body. On 1.8L engines, IPS is part of idle speed control servo, located on throttle body. See Figure . IPS is a contact-type switch, which detects operation of accelerator pedal and sends signal to ECM. IPS also serves as a throttle stop screw.
