Removal & Installation

Remove wiring harness connectors from solenoid control module. See Fig 1 . Depress 2 locking tabs on bottom of control module and rotate control module upward, until retaining tabs can be removed from steering gear end cap. See Fig 2 . To install, reverse removal procedure.

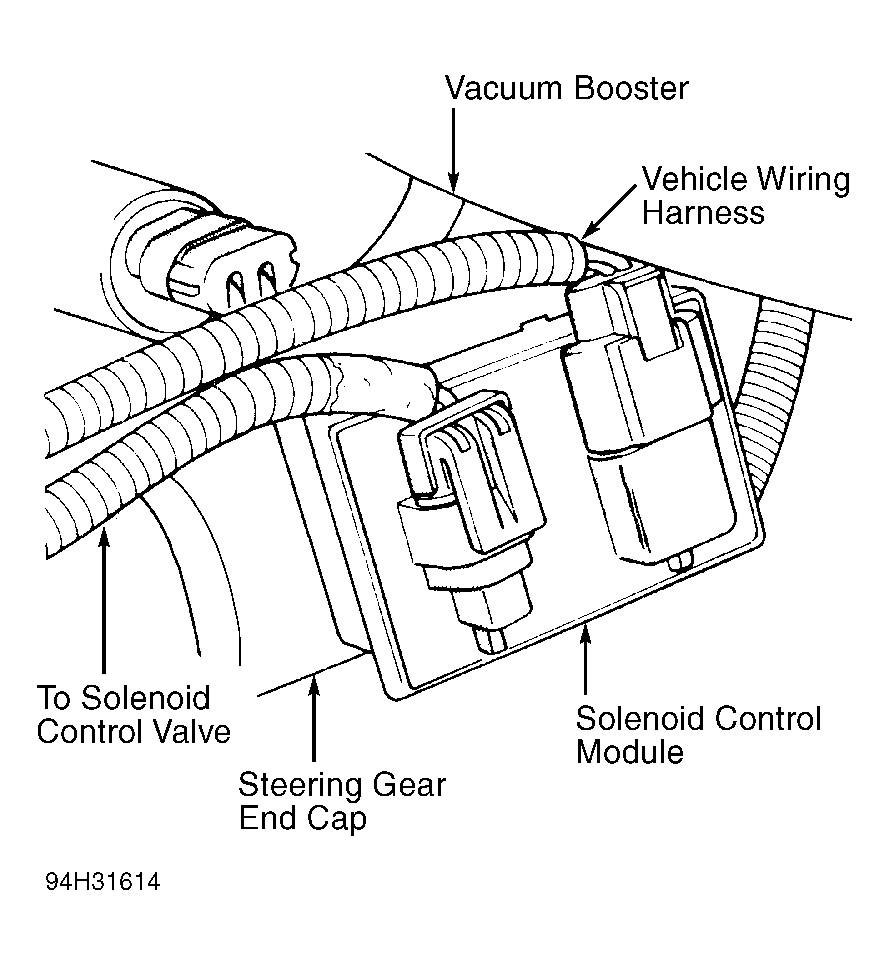

Fig 1: Locating Solenoid Control Module (Concord & Intrepid Are Shown; Other Models Are Similar)

Courtesy of CHRYSLER CORP.

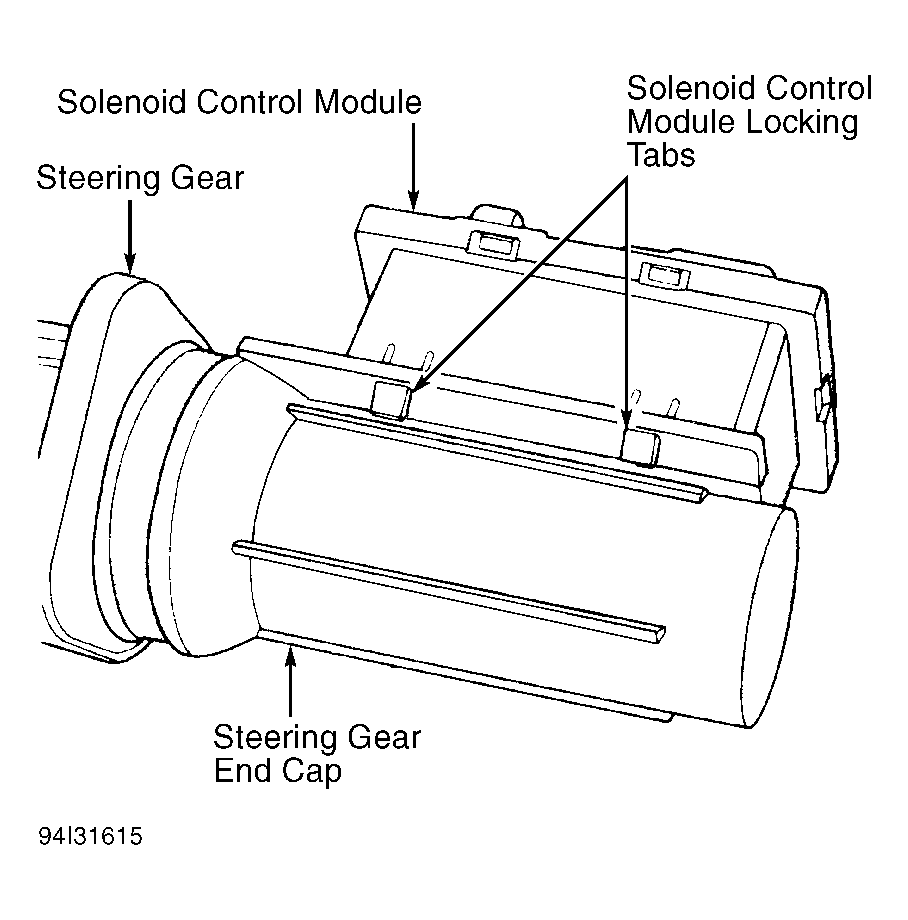

Fig 2: Removing Solenoid Control Module (Concord & Intrepid Are Shown; Other Models Are Similar)

Courtesy of CHRYSLER CORP.
