Component Locations

COMPONENT LOCATIONS

Component Location
Convenience Center Under Left Side of Instrument Panel. See Fig 1
Window Motor, Left Front Inside Left Front Door
Window Motor, Right Front Inside Right Front Door
Window Motor, Left Rear Inside Left Rear Door
Window Motor, Right Rear Inside Right Rear Door. See Fig 3
Window Switch, Left Front On Left Trim Panel
Window Switch, Left Rear On Rear Door Trim Panel
Window Switch, Master On Left Front Door Trim Panel
Window Switch, Right Front On Right Door Trim Panel
Window Switch, Right Rear On Rear Door Trim Panel. See Fig 3
C240 At Convenience Center. See Fig 4 .
C244 At Radio
C247 At Convenience Center. See Fig 4 .
C257 At Convenience Center. See Fig 4 .
C325 Left Body Hinge Pillar. See Fig 4 .
C326 Left Body Hinge Pillar. See Fig 4 .
C328 Right Body Hinge Pillar. See Fig 4 .
C330 Right Body Hinge Pillar. See Fig 4 .
C331 Right Body Hinge Pillar. See Fig 4 .
C332 Left Body Hinge Pillar. See Fig 4 .
C341 At Left Center Pillar. See Fig 5 .
C342 At Right Center Pillar. See Fig 5 .
G202 At DLC Connector, Under Left Side Of Instrument Panel. See Fig 6 .
S207 Under Left Side Of Instrument Panel. See Fig 7 .
S213 Under Left Side Of Instrument Panel, Near S207
S272 Power Window And Door Locks Harness, Near Convenience Center Leads. See Fig 4 .
S277 Power Window And Door Locks Harness, Near Convenience Center Leads. See Fig 4 .
S279 Power Window And Door Locks Harness, Near Convenience Center Leads. See Fig 4 .
S500 Power Window And Locks Harness, Left Front Door, Near Power Window Motor Lead. See Fig 8 .
S501 Power Window And Locks Harness, Left Front Door, Near Power Window Motor Lead. See Fig 8 .

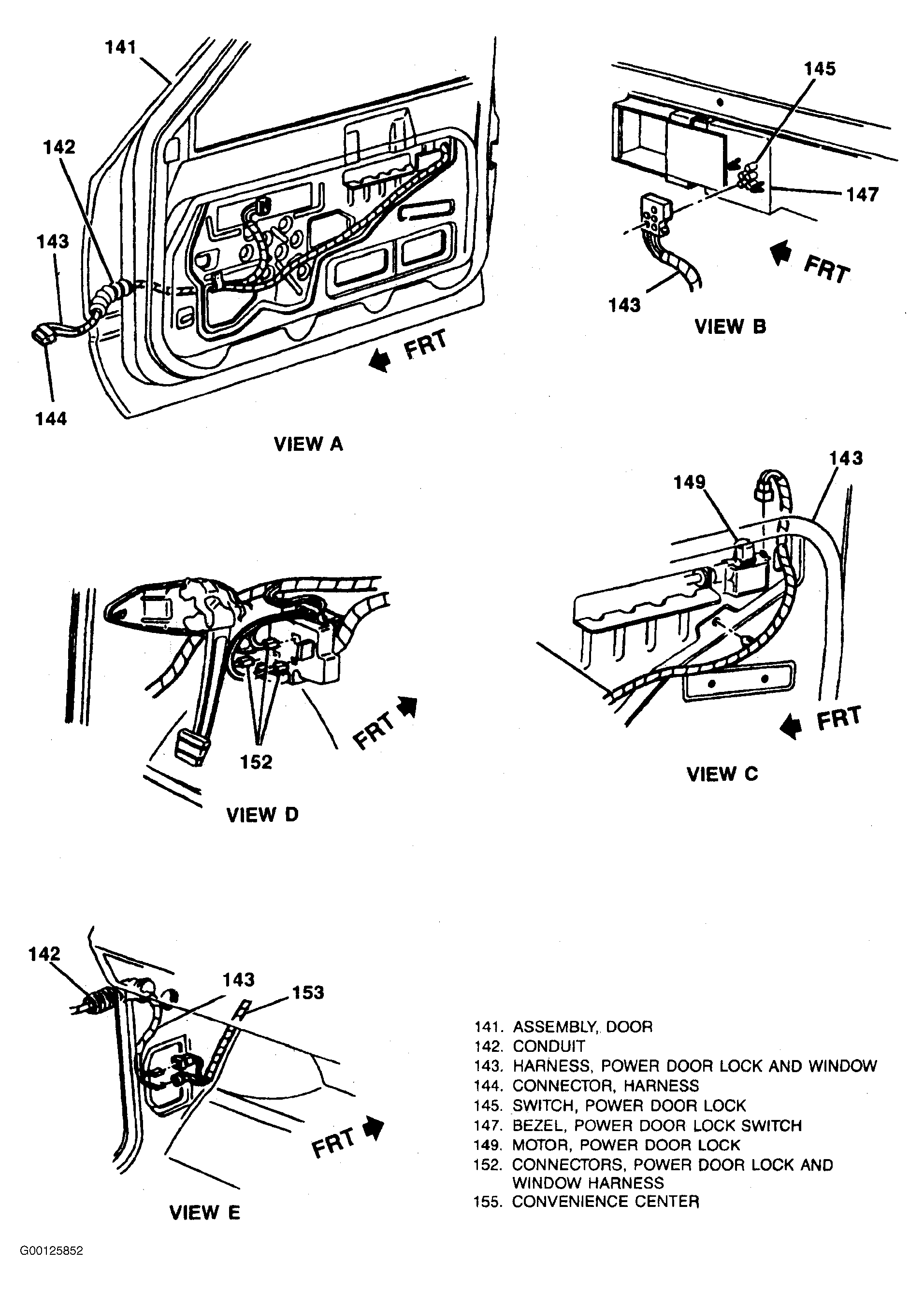

Fig 1: Identifying Power Windows Components & Convenience Center
G00125852Courtesy of GENERAL MOTORS CORP.

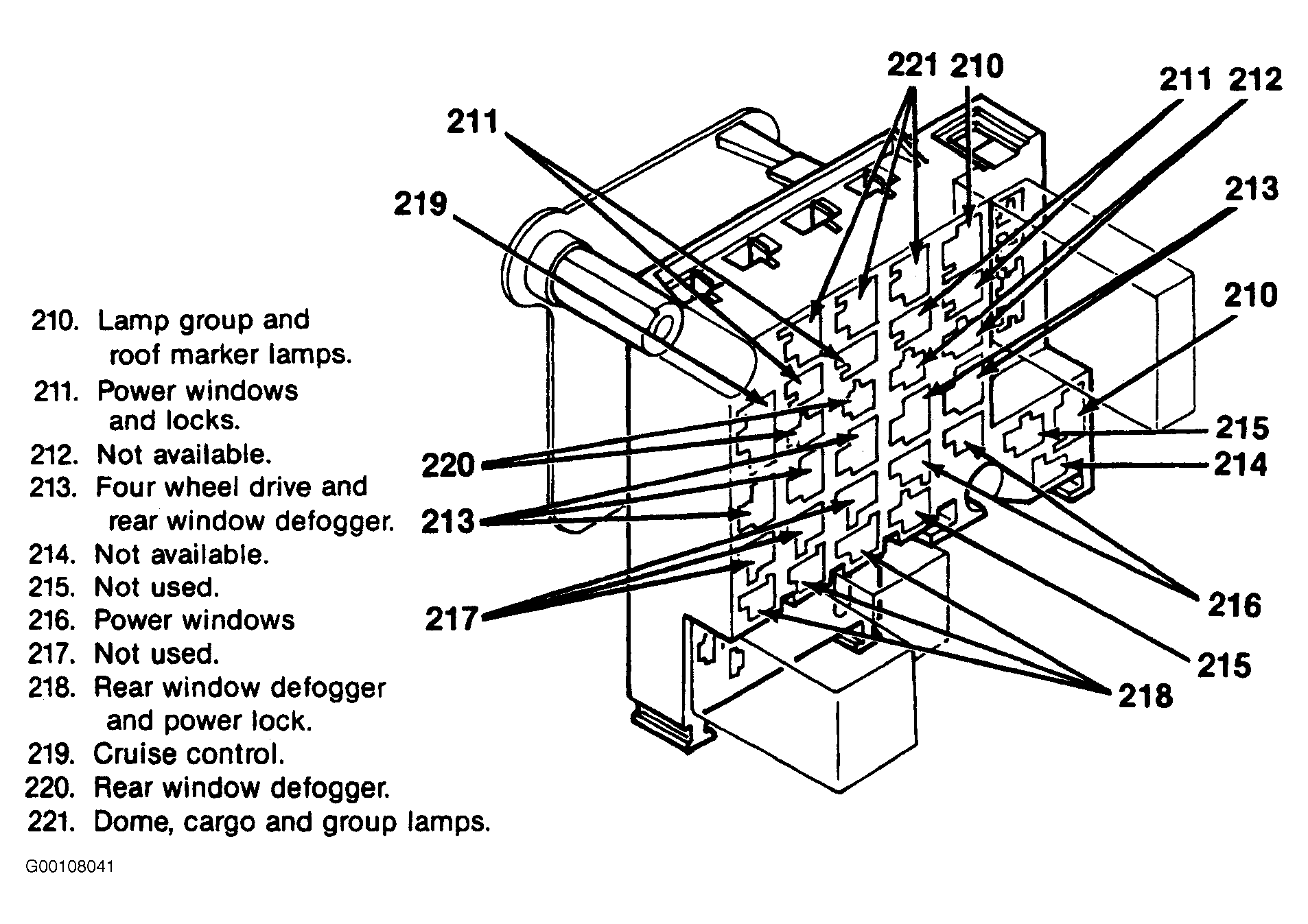

Fig 2: Identifying Convenience Center Fuses
G00108041Courtesy of GENERAL MOTORS CORP.

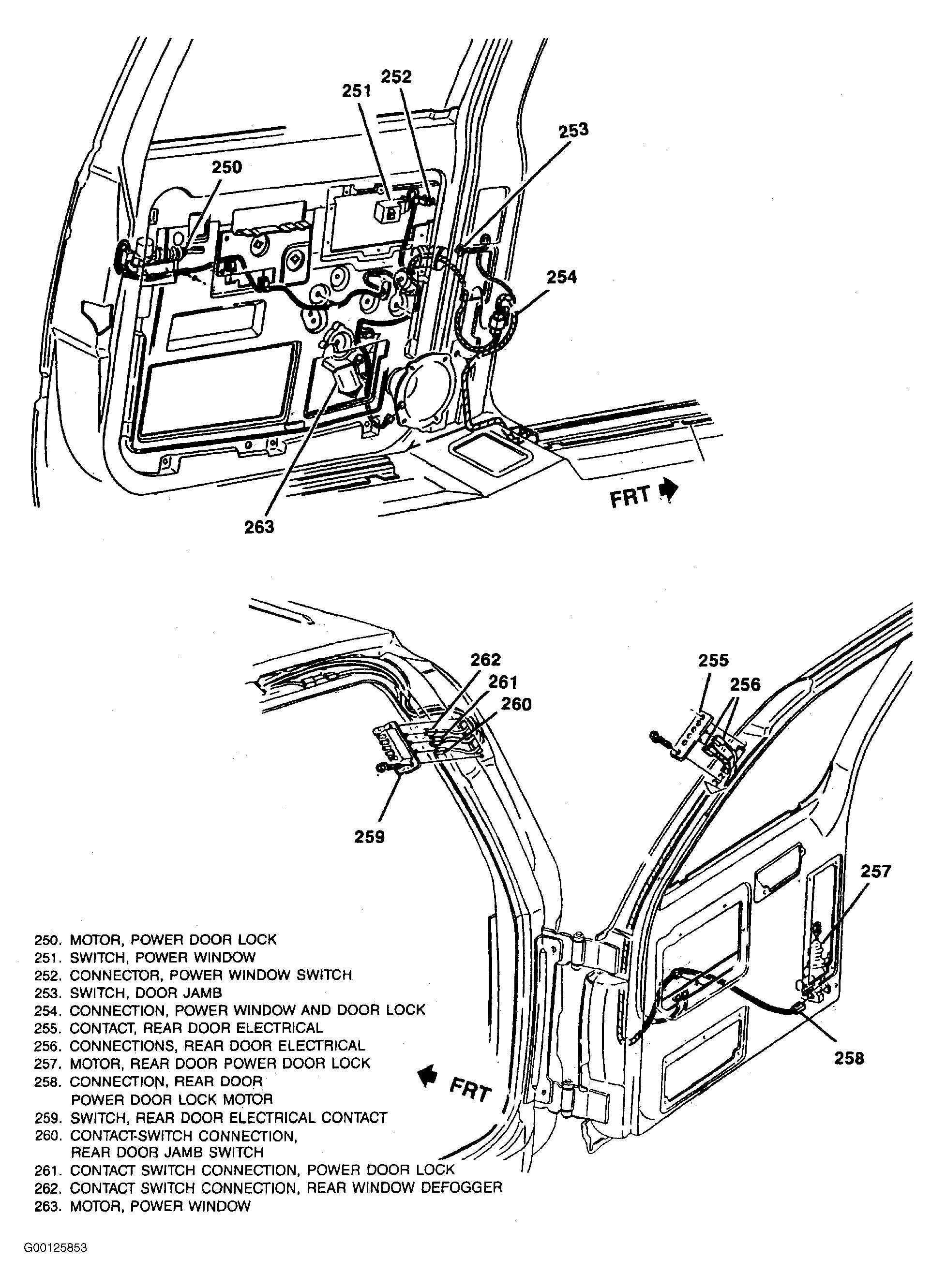

Fig 3: Identifying Power Window Harness Components
G00125853Courtesy of GENERAL MOTORS CORP.

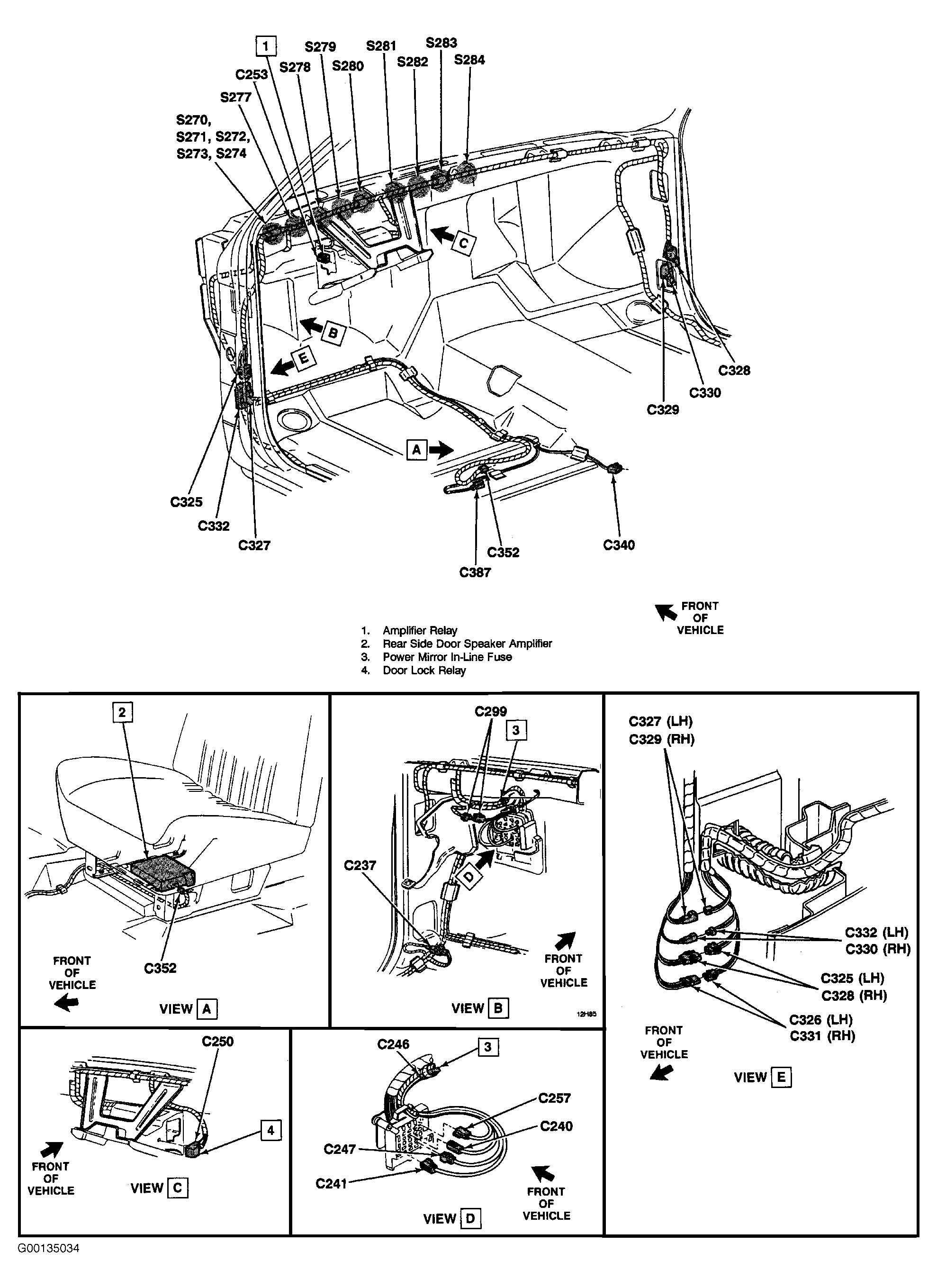

Fig 4: Locating Power Window Connectors & Splices (Suburban Shown; Pickup & Utility Are Similar)
G00135034Courtesy of GENERAL MOTORS CORP.

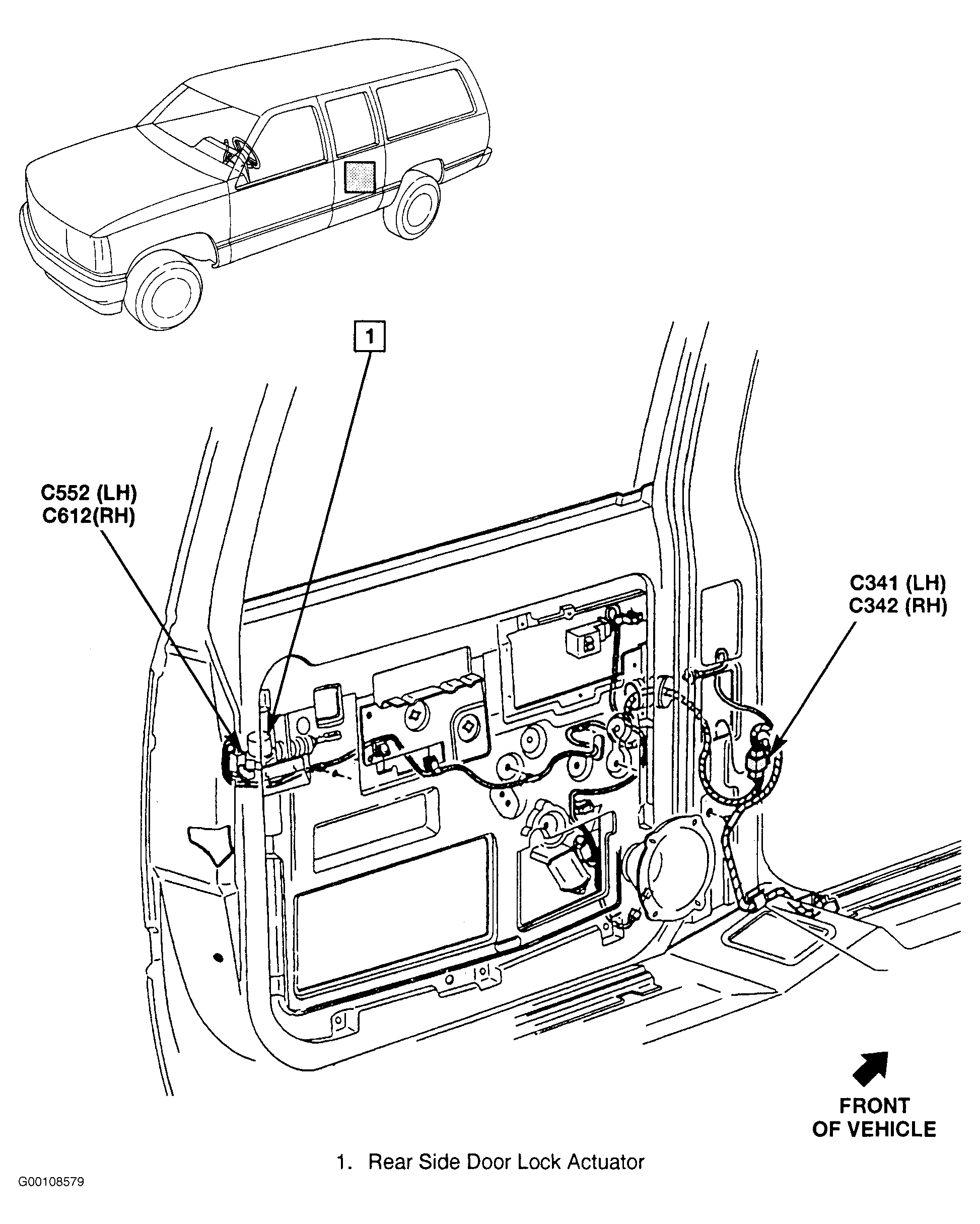

Fig 5: Locating C341 & C342
G00108579Courtesy of GENERAL MOTORS CORP.

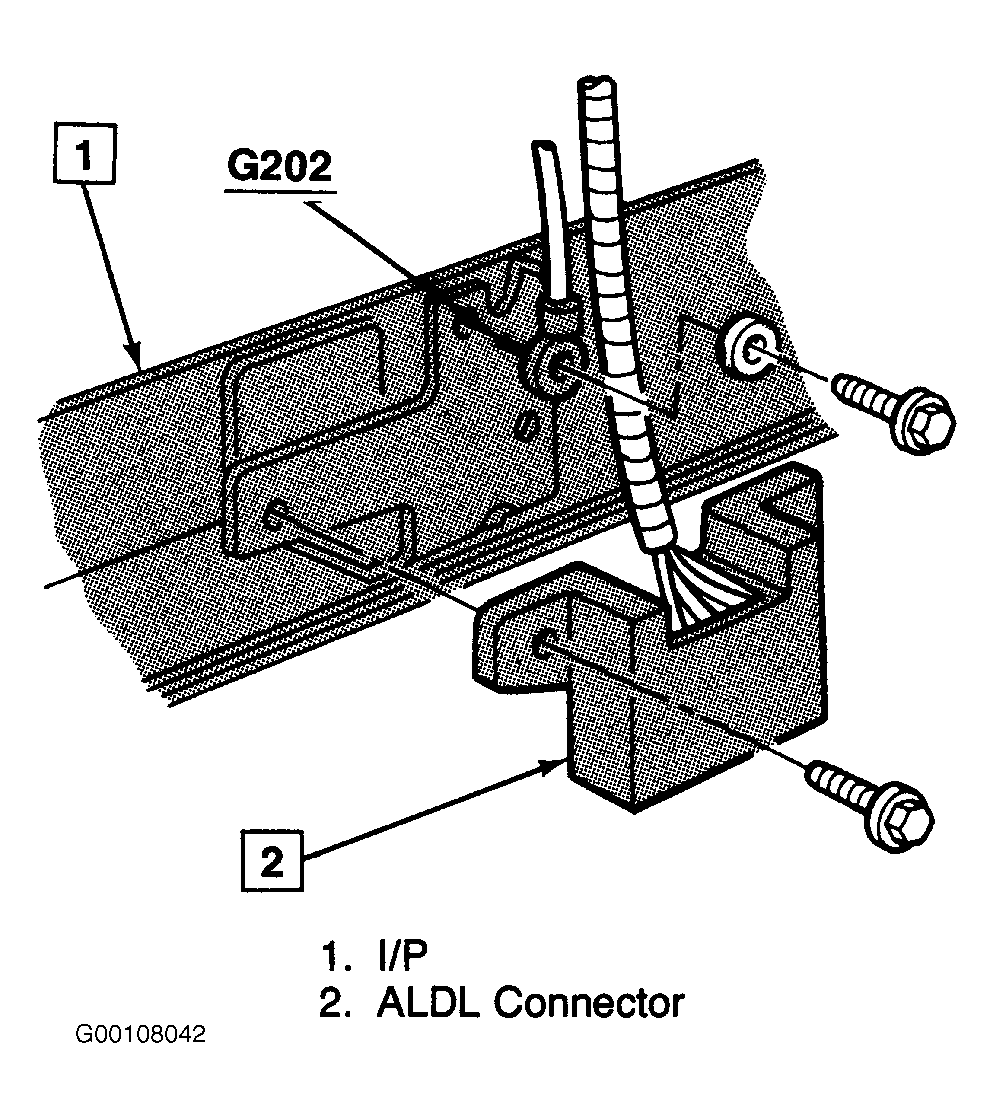

Fig 6: Locating Instrument Panel Ground G202
G00108042Courtesy of GENERAL MOTORS CORP.

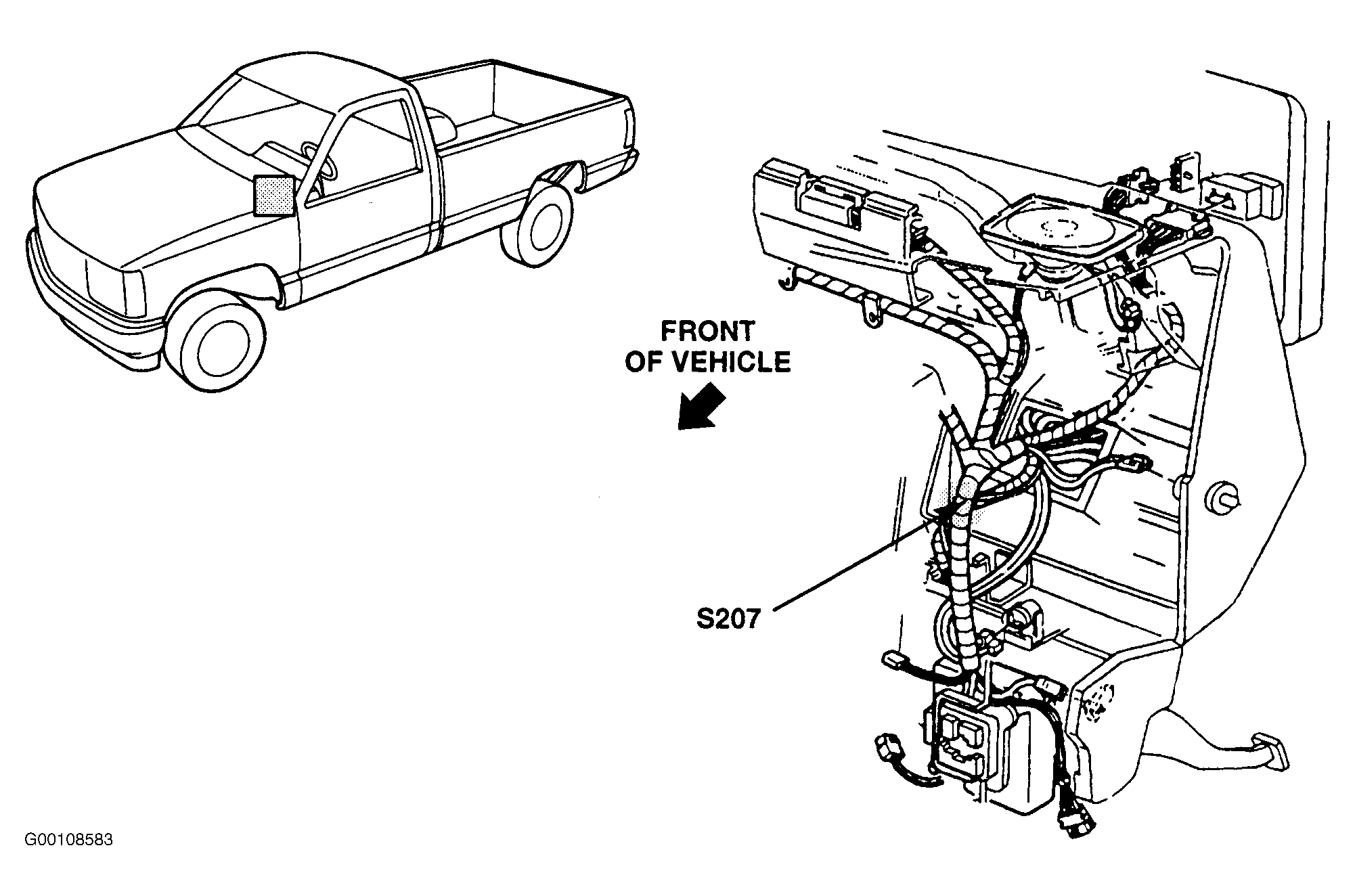

Fig 7: Locating Splice S207 In Left Side Of Instrument Panel
G00108583Courtesy of GENERAL MOTORS CORP.

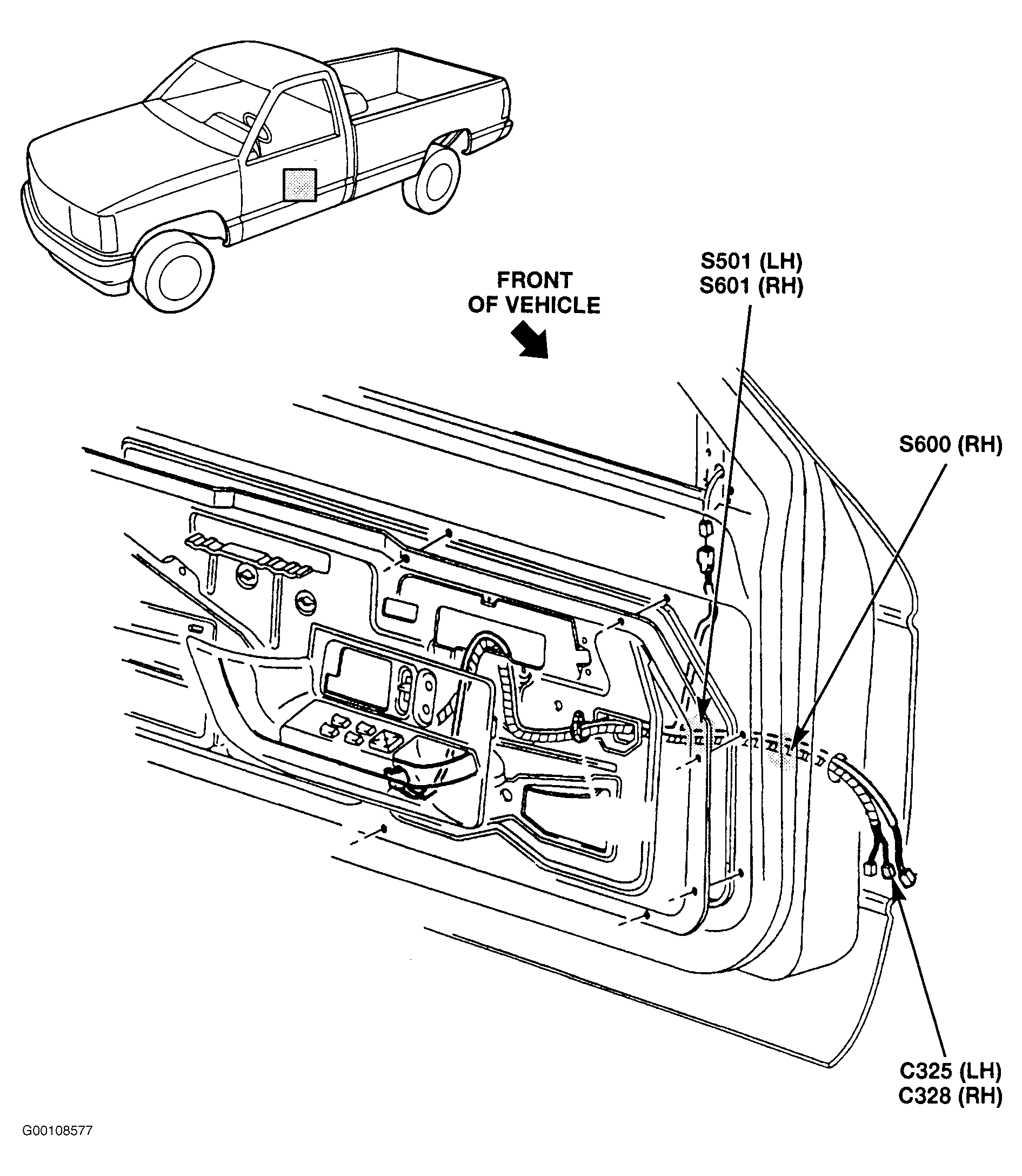

Fig 8: Locating Driver's Door Wiring Components
G00108577Courtesy of GENERAL MOTORS CORP.
