Front End Discriminating Sensor: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1996 GMC Vandura Special, 1996 GMC Vandura, 1996 GMC Savana Special, 1996 GMC Savana Camper Special, and 1996 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM .
Forward discriminating sensor is located below front end lower tie bar. Remove CPA clip and disconnect electrical connector. Remove sensor mounting fasteners. Remove sensor. See Fig 1 .

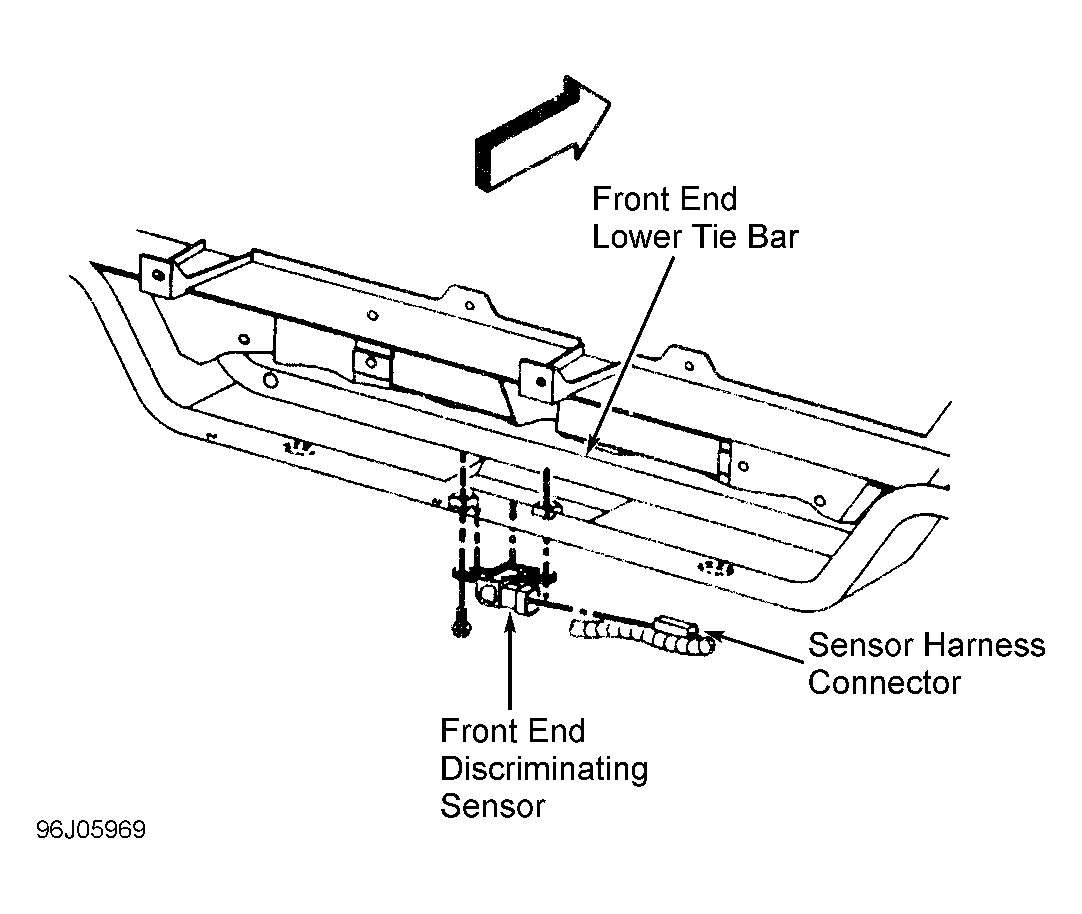

Fig 1: Removing Front End Discriminating Sensor

Courtesy of GENERAL MOTORS CORP.
