Installation Procedure

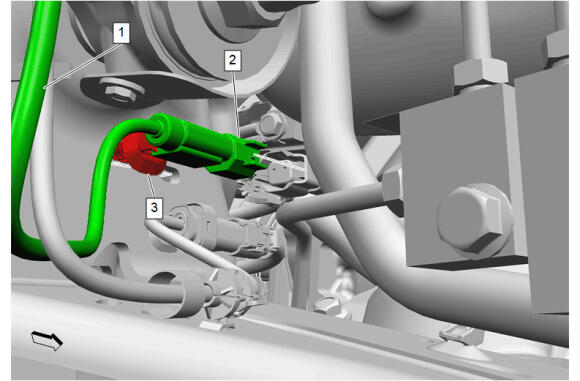

Front Wheel Speed Sensor Wiring Harness (1) - Install
- Connect the electrical connector. (2)
- Front Wheel Speed Sensor Retainer (3) - Install

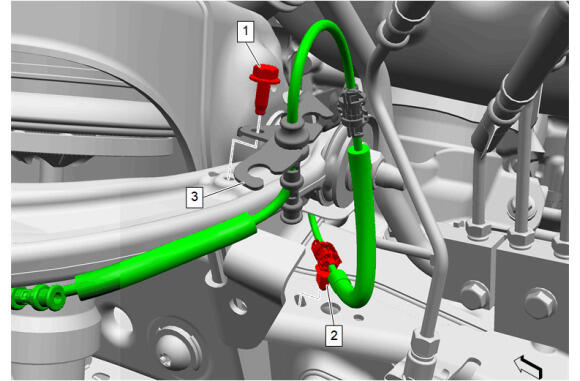

Front Wheel Speed Sensor Bracket (3) - Install
- Front Wheel Speed Sensor Retainer (2) - Install
- Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
- NOTE:
Typical front wheel speed sensor bracket shown, actual image may vary based on option content.

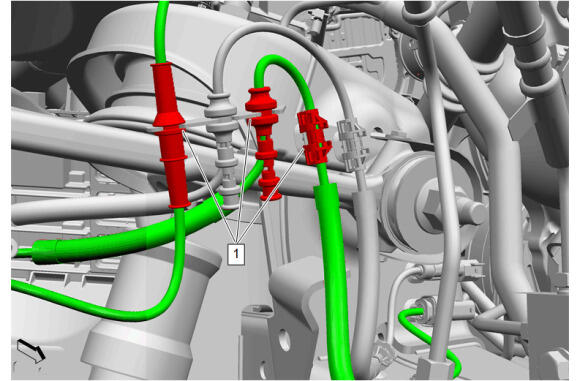

{If equipped} Wiring Harness (1) @ Front Wheel Speed Sensor Bracket - Install [ 3x ]

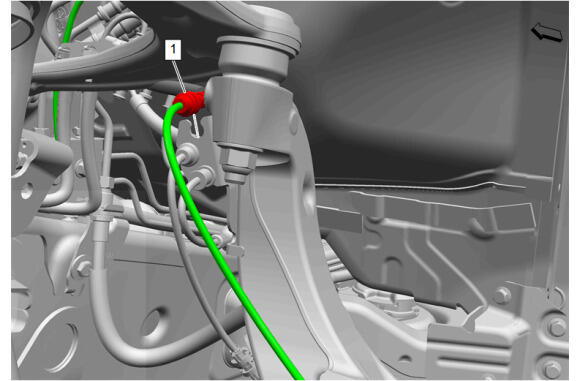

Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket - Install

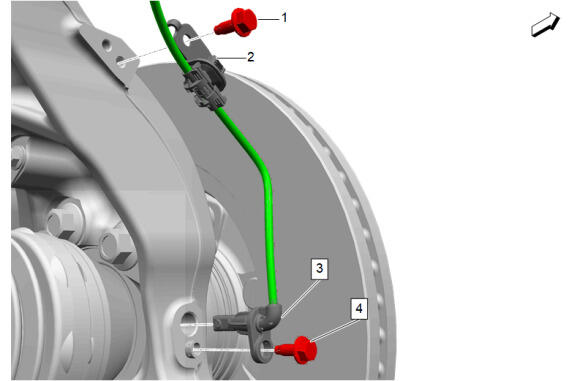

Front Wheel Speed Sensor Bracket (2) - Install
- Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (3) and mounting pad on the front steering knuckle. Adhesives, Fluids, Lubricants, and Sealers
- Front Wheel Speed Sensor (3) - Install
- Front Wheel Speed Sensor Bolt (4) - Install and tighten - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
- Verify the repair is complete. Diagnostic Repair Verification
CAUTION:
Refer to Fastener Caution .
