Engine Compartment Components - Bottom

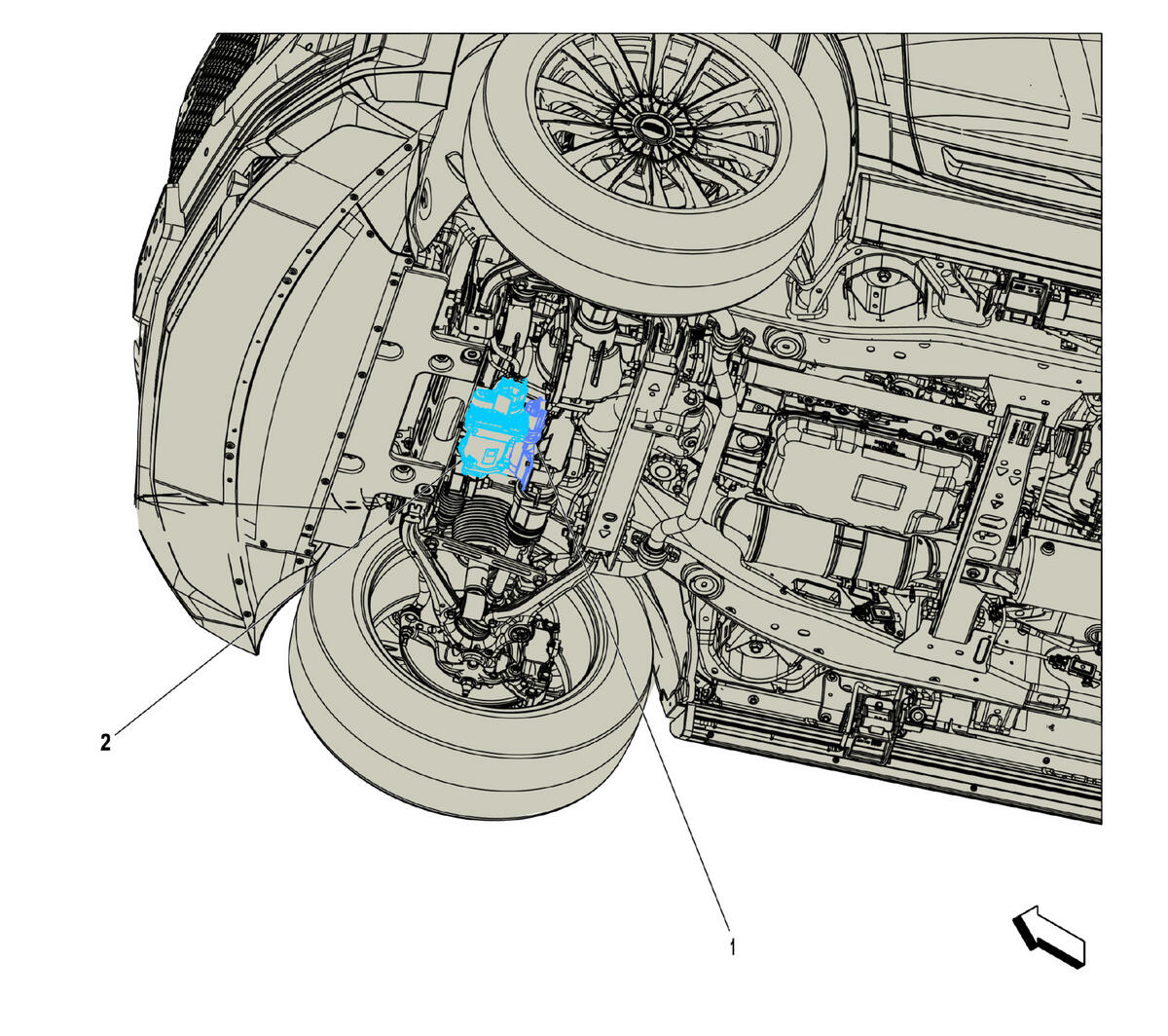

GM5731551Courtesy of GENERAL MOTORS COMPANY
Engine Compartment Components - Bottom

Items
1. M26 Front Drive Axle Actuator (NP0/NQH) M26 Front Drive Axle Actuator (NP0/NQH)
2. K43 Power Steering Control Module
K43 Power Steering Control Module X1 , or
K43 Power Steering Control Module X2 , or
K43 Power Steering Control Module X3 .
