Installation Procedure

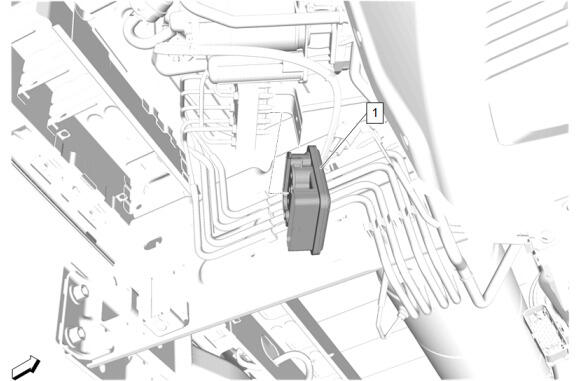

  1. GM5902565

    Air Suspension Control Module (1) - Install

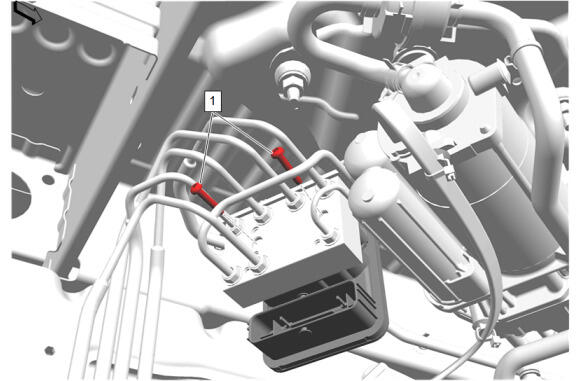

  2. GM5902561
    CAUTION:

    Refer to Fastener Caution .

    Automatic Level Control Air Compressor Bolt (1) - Install and tighten [2x] - Fastener Specifications

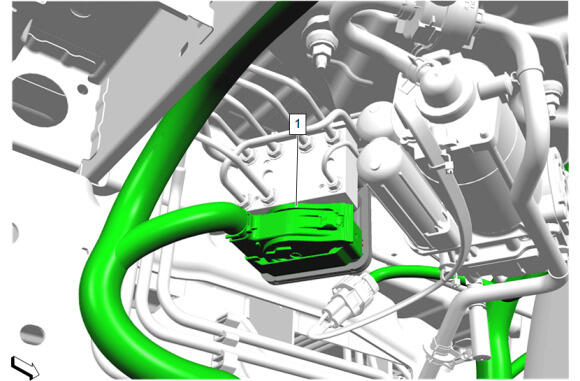

  3. GM5902560

    Electrical Connector (1) - Connect

  4. Remove the support and lower the vehicle.
  5. After installation, program the automatic level control module. Control Module References
  6. Perform the automatic level control trim height learn. Automatic Level Control Trim Height Learn
  7. GM5807720

    With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation
