Installation Procedure

  1. GM6049209

    Automatic Level Control Module (1) - Install

  2. GM6049208
    CAUTION:

    Refer to Fastener Caution .

    Automatic Level Control Air Compressor Nut (2) - Install and tighten [2x] - Fastener Specifications

  3. Automatic Level Control Air Compressor Bolt (1) - Install and tighten - Fastener Specifications
  4. GM6049206
    NOTE:

    The air lines and air suspension controller are color coded to aid with installation.

    Install and tighten the 5 air line nuts (3) in the air suspension controller. Fastener Specifications

  5. Install the 2 air line retaining clips (1).
  6. Connect the 2 electrical connectors (2).
  7. GM6049205

    Install the 6 air line retaining clips (2).

  8. Install the air intake line (1) in the body grommet.

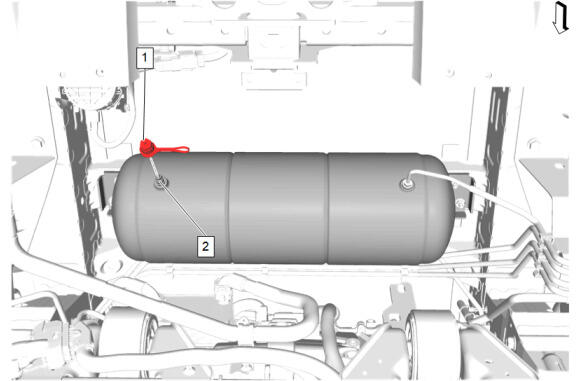

  9. GM5896840

    Remove the automatic level control air supply reservoir air valve cap (1).

  10. Install CH-52667  Air Spring Inflator to the automatic level control air supply reservoir air valve (2) and set the regulator on the nitrogen tank to 16 Bar (232 PSI).
  11. Using CH-52667  Air Spring Inflator, open the valve on the pressure gage to fill the automatic level control air supply reservoir.
  12. Using CH-52667  Air Spring Inflator and the shop nitrogen tank, fill the automatic level control air supply reservoir to 16 Bar (232 PSI).
  13. Close the pressure gauge valve and remove CH-52667  Air Spring Inflator from the automatic level control air supply reservoir.
  14. Install the automatic level control air supply reservoir air valve cap (1) and tighten. Fastener Specifications .
  15. Partially lower the vehicle, but DO NOT let the wheels touch the ground.
  16. Using GDS2 tool, use short-term inflate to increase pressure to the air springs:
    • Front: 6 Bar (87 PSI)
    • Rear: 5 Bar (73 PSI)
  17. Using GDS2, verify automatic level control air supply tank pressure is at 16 Bar (232 PSI), if not repeat steps 9 - 14.
  18. GM5902903

    install the rear cradle, and electric drive transmission module assembly (1) to the vehicle. Rear Suspension Cradle Removal and Installation

  19. GM5807720

    With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation

  20. Remove the support and lower the vehicle.
  21. After installation, program the automatic level control module. Control Module References
  22. Perform the automatic level control trim height learn. Automatic Level Control Trim Height Learn
