Installation Procedure

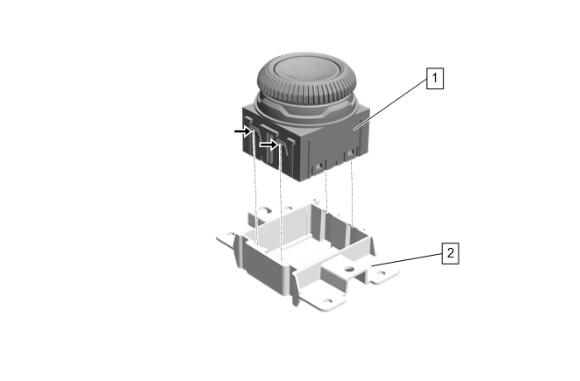

Install the Ride Control Switch (1) to Ride Control Switch Bracket (2)
- Ensure that the retaining tabs are fully secured.
Install the Ride Control Switchand Ride Control Switch Bracket (2) as an assembly.

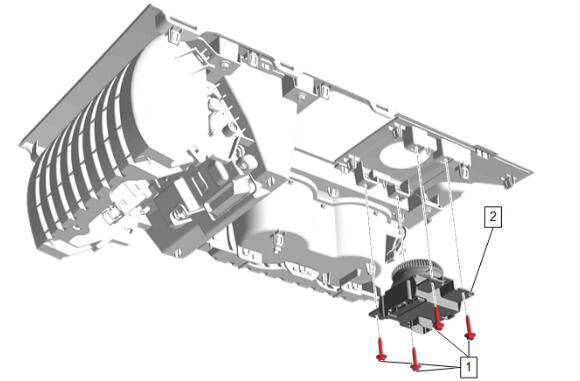

- Ride Control Switch Bracket Bolt (1) - Install and tighten [x4] Fastener Specifications
Connect the electrical connectors.
- Front Floor Console Cup Holder Trim Plate (1) - Install

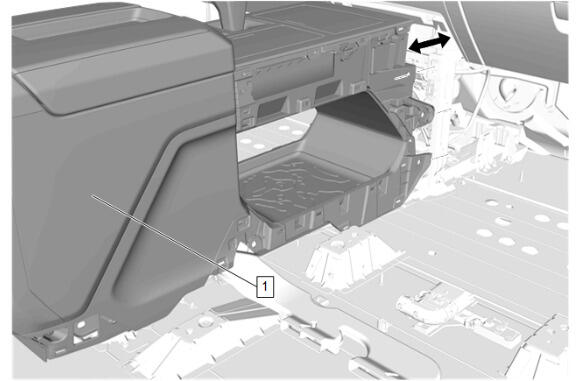

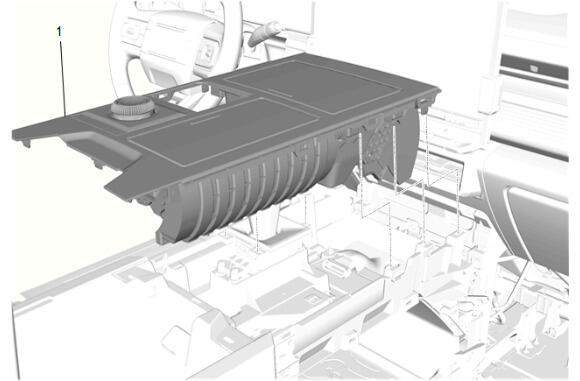

Front Floor Console (1) - Install
- Connect the electrical connectors to the front floor console (1).

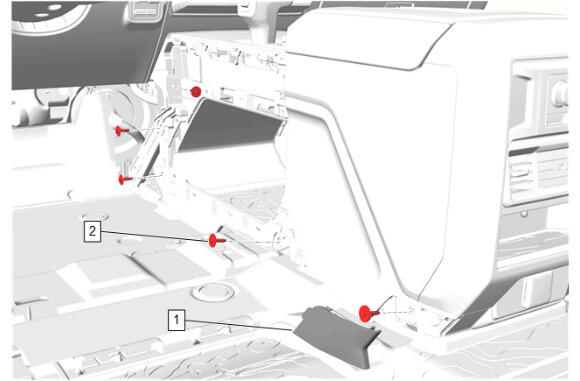

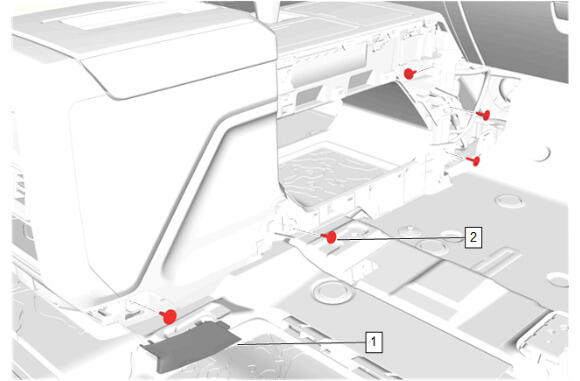

Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

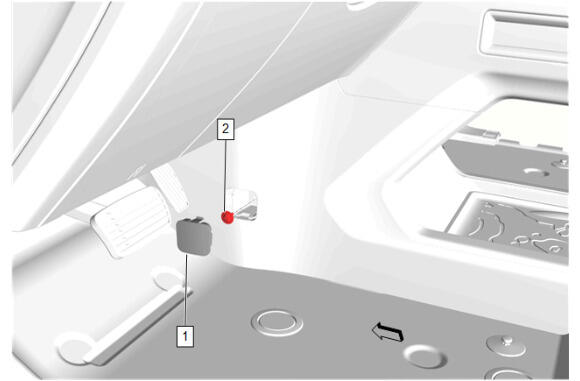

- Front Floor Console Bolt Access Hole Cover (1) - Install

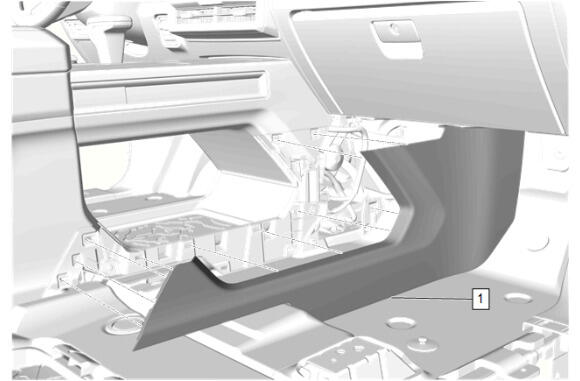

Front Floor Console Lower Applique (1) - Install

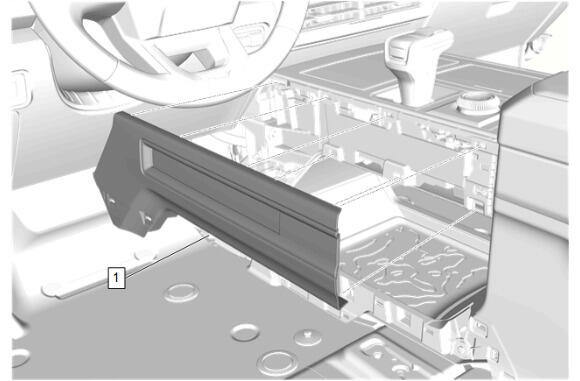

Front Floor Console Extension Panel (1) - Install
Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications
- Front Floor Console Bolt Access Hole Cover (1) - Install

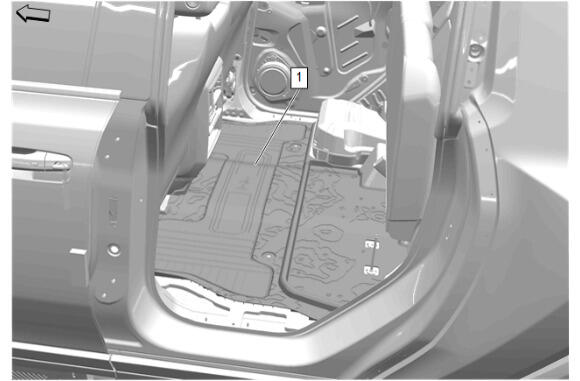

Rear Floor Mat (1) - Install
Tire Air Compressor (2) - Install
- Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten

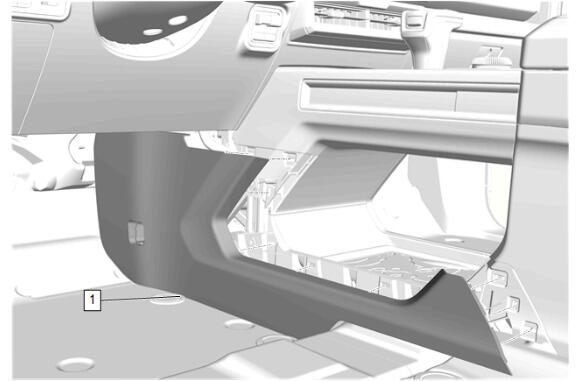

Front Floor Console Lower Applique (1) - Install

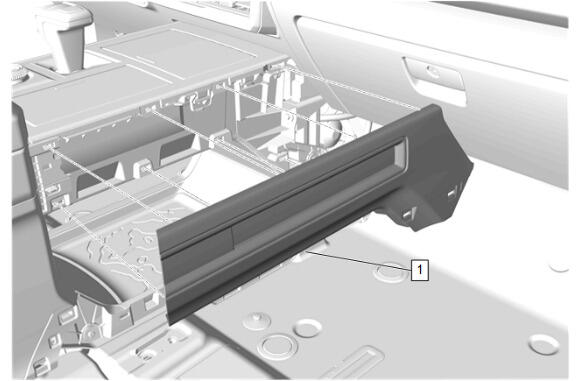

Front Floor Console Extension Panel (1) - Install
Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
- Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

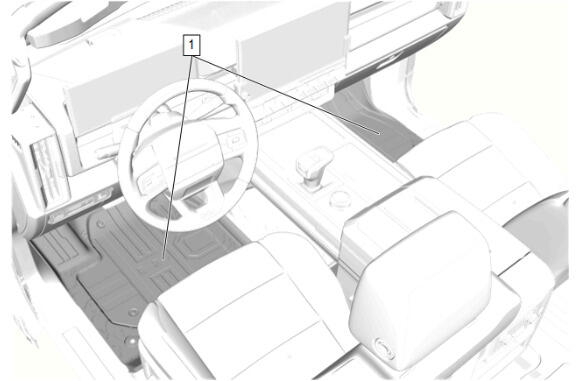

Install the left and right front floor mat (1).
- Return the seat to its original position.
Refer to Fastener Caution .
