Installation Procedure

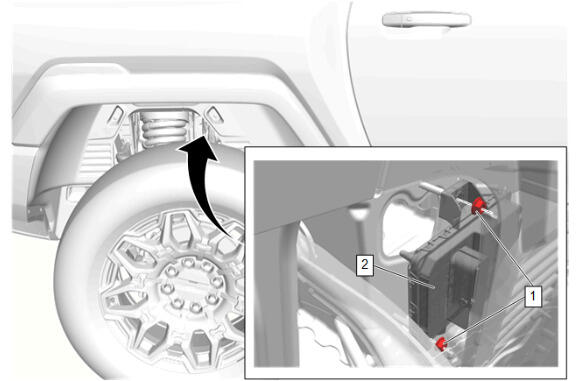

Trailer Lamp Control Module (2) - Install
- Trailer Lamp Control Module Nut (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector.
- NOTE:
Left side shown, right side similar.
Rear Wheelhouse Liner- Right Side (3) - Install
- Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten [3x] - Fastener Specifications
- Rear Wheelhouse Liner Retainer- Right Side (2) - Install
- NOTE:
Left side shown, right side similar.
Rear Tire Front Air Deflector- Right Side (2) - Install
- Rear Tire Front Air Deflector Bolt- Right Side (1) - Install and tighten [3x] - Fastener Specifications
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution .
