Installation Procedure

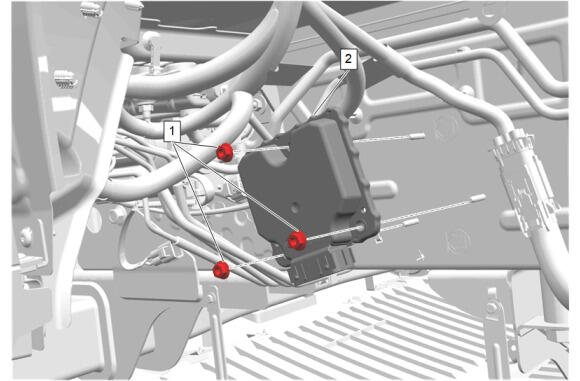

Suspension Control Module (2) - Install
- Electronic Suspension Control Module Bracket Nut (1) - Install and tighten [3x] - Fastener Specifications

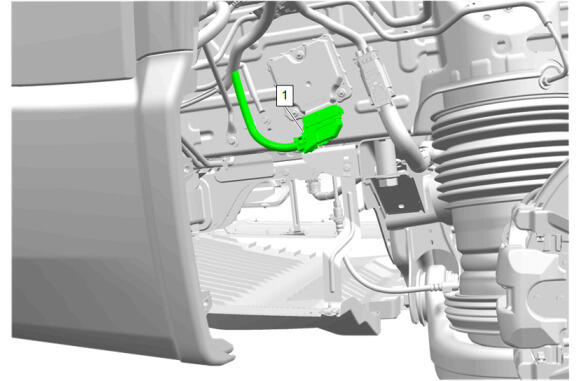

Connect the suspension control module wire harness connector (1).
Rear Wheelhouse Panel Rear Liner - Right Side (1) - Install - Rear Wheelhouse Panel Rear Liner Replacement
- Install the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- After installation, program the electronic suspension controller. Control Module References
- Perform the automatic level control trim height learn. Automatic Level Control Trim Height Learn
CAUTION:
Refer to Fastener Caution .
