Transfer Assembly Installation

Clean the area where the transfer assembly contacts the transmission with solvent or carburetor cleaner, and dry with compressed air. Then apply transmission fluid to the contact areas. When installing the transfer assembly, be sure not to allow dust or other foreign particles to enter the transmission.

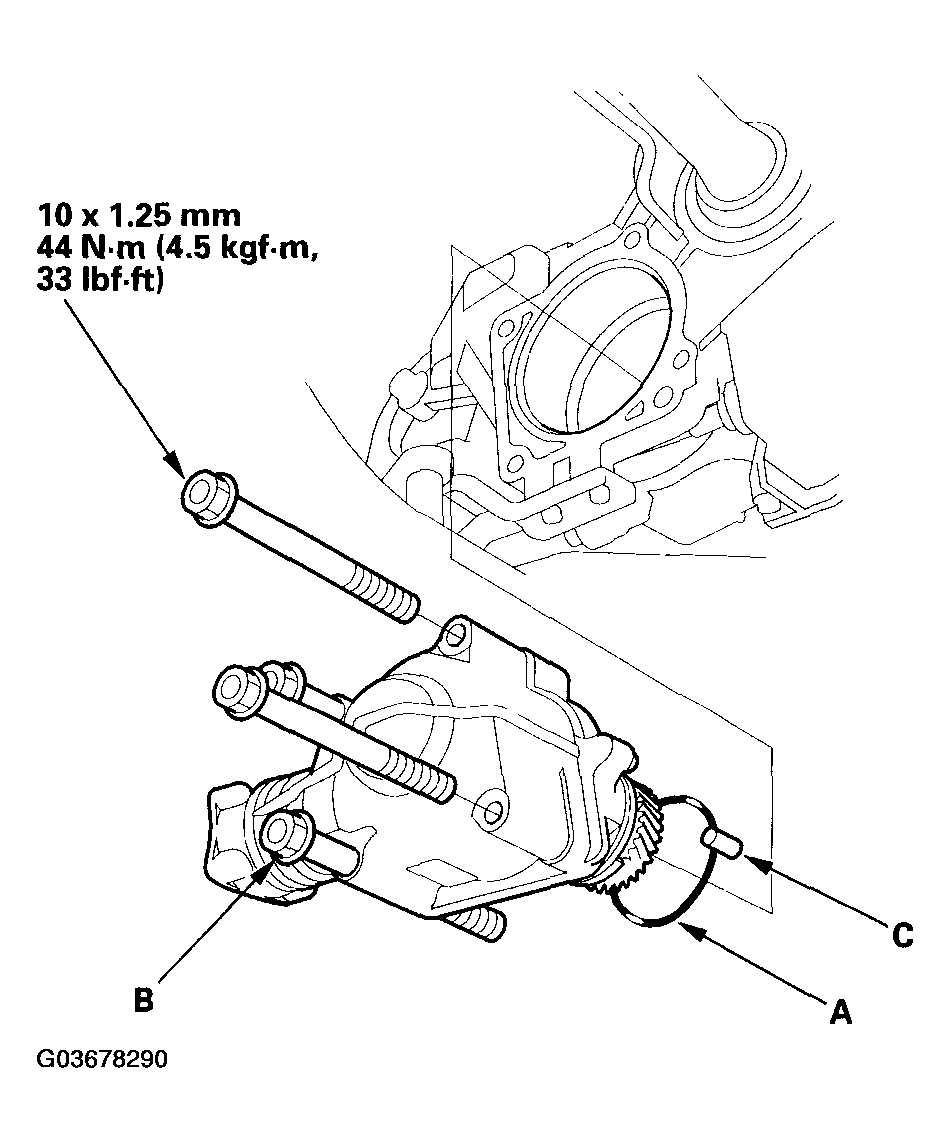

Install the new O-ring (A) on the transfer.

Fig 1: Installing Transfer Assembly And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the four bolts (B) in the transfer housing, then install the transfer assembly with the dowel pin (C).

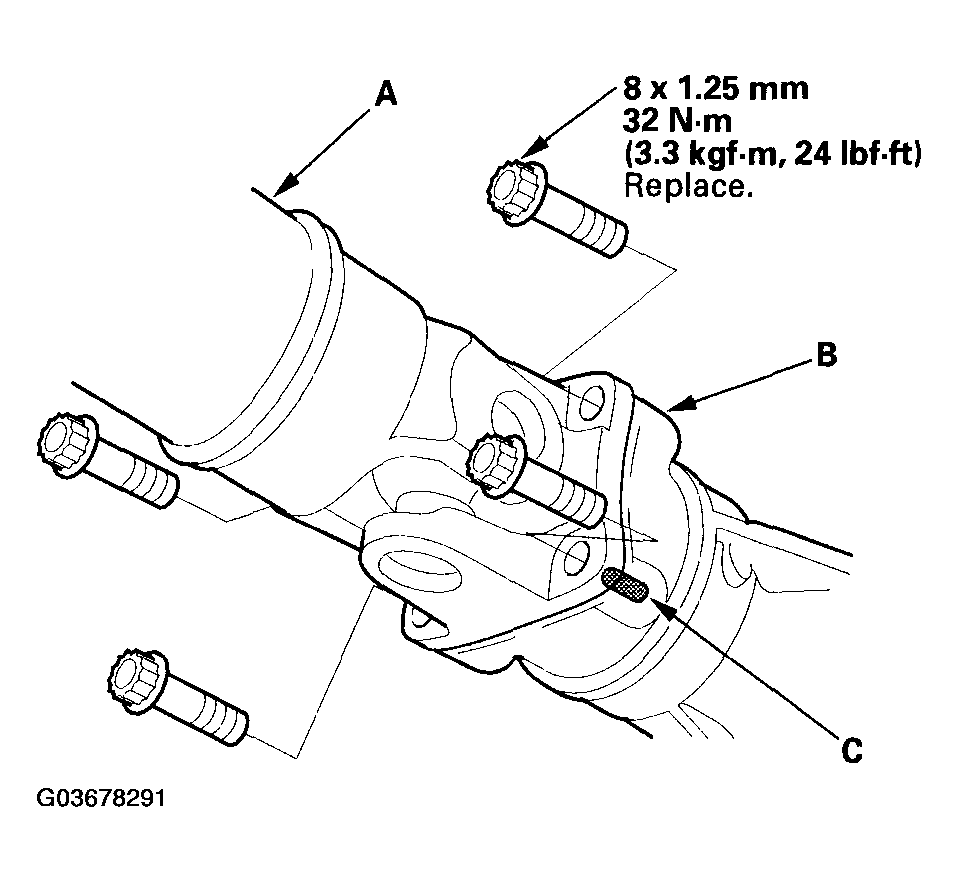

Install the propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).

Fig 2: Identifying Tightening Torque Of Propeller Shaft Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refill the transmission fluid (see step 5 ).
Start the engine, and run it to normal operating temperature (the radiator fan comes on). Turn the engine off, and check the fluid level (see ATF LEVEL CHECK ).
