Power Tailgate Sensor Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ), then the power tailgate drive unit (see DRIVE UNIT REPLACEMENT  ).
  2. Separate the power tailgate drive unit 8P connector (A), and remove the three screws (B) and the power tailgate sensor (C).

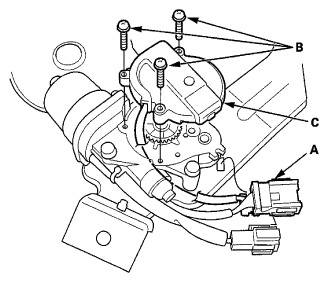

    Fig 1: Identifying Power Tailgate Drive Unit 8P Connector, Power Tailgate Sensor With Screws
    G06970409Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Record the power tailgate sensor connector terminals location and the wire harness color.
  4. Disassemble the power tailgate drive unit B (8P) (A), then remove the two terminals (B) from the connector.
    NOTE: The connector is a part of the power tailgate sensor.
    Fig 2: Disassembling Power Tailgate Drive Unit B (8P)
    G06970410Courtesy of AMERICAN HONDA MOTOR CO., INC.
