Remote Control Switch Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).

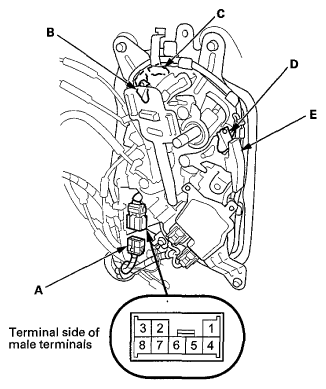

Disconnect the 8P connector (A) from the sliding door remote control switch.
B: Remote control switch 1

C: Remote control switch 2

D: Remote control switch 3

E: Child lock safety switch

Fig 1: Identifying Sliding Door Remote Control Switch And 8P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: Remote Control Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the power sliding door latch remote control assembly (see SLIDING DOOR LATCH REMOTE CONTROL ASSEMBLY REPLACEMENT ).
