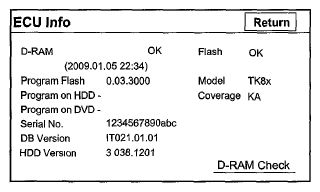

ECU Info
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
This diagnosis looks for problems in the audio-navigation unit. When you initiate this diagnosis, the audio-navigation unit may freeze or delay up to a minute while the diagnosis runs.
- D-RAM shows NG, replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
- Program Flash: Displays the version of the navigation software in memory.
- Program on HDD: If displayed, this value represents the version of the navigation software on the audio-navigation unit HDD.
- Program on DVD: If displayed, this value represents the version of the navigation software on the audio-navigation unit DVD player.
- Serial No. should be the same as the serial number found on the upperside of the audio-navigation unit.
- DB Version: Displays the version of the database on the audio-navigation unit HDD.
- HDD Version: Display the version of the audio-navigation unit HDD.
- D-RAM check is for factory use only.
