Unit Check (Quick Check): GPS
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
This diagnosis tests the GPS antenna connection and the GPS receiver condition.

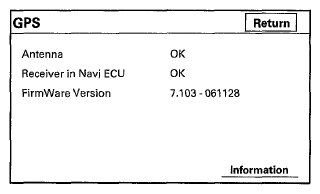

- In the GPS menu, if the Antenna shows NG, then check the entire GPS antenna wire from the audio-navigation unit to the GPS antenna. If the wire is crushed or damaged, substitute a known-good GPS antenna (see FRONT HFL-NAVIGATION-ANC MICROPHONE REMOVAL/INSTALLATION
), and recheck. If this diagnosis shows OK, replace the original GPS antenna (see FRONT HFL-NAVIGATION-ANC MICROPHONE REMOVAL/INSTALLATION
).
If the diagnosis still shows NG (Antenna), replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
- Select Information to see the GPS satellite details.
