Yaw Rate Tuning

This diagnosis allows you to graphically display problems with the yaw rate sensor.

• The ANG-Disp value accumulates any differences between the offset, and sensor voltages (see Yaw Rate diagnostic). When the sensor functions normally, the random changes in these two voltages generally cancels out, so the value is 0. However if one voltage is consistently higher than the other, then the ANG-Disp value accumulates the constant change.
• The Reset button temporarily clears the angular accumulation (ANG-Disp), and clears the display dots.
• Do not touch the CCW, CW, or Set buttons. These are used for factory setup only.

Two tests are explained below. For gross problems with the sensor, the stationary test usually confirms whether the sensor is defective. For yaw rate issues related to driving, do the road test described below.

1. Stationary test: If the VP icon spins with the vehicle parked and the engine running and the ANG-Disp value slowly increases or decreases, the yaw rate sensor is defective. Replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION  ).
2. Road test: Drive the vehicle on a very straight, smooth road. Enter the diagnostic mode, select Yaw rate, and touch the Tuning button. While driving down a straight road, the white dots should trace a straight line across the screen. However, if you are driving on a straight road, and you notice the dots constantly dropping down or heading up as you drive, the audio-navigation unit's yaw sensor is defective. To run the test again, touch Reset to clear ANG-Disp, and the dotted lines.

   If either test above fails, please enter Yaw rate sensor defective for the problem description, on the audio-navigation unit return form.

   NOTE: The CCW, CW and Set buttons are disabled and cannot be activated.

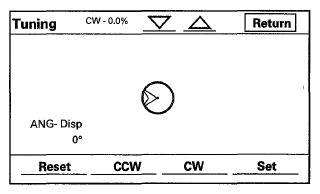

   Fig 1: Diagnostic Screen Display - Tuning

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
