Column Blind Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
Detach the hooks (A) and the pins (B), then remove the column blind (C).

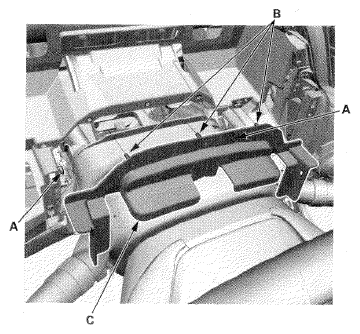

Fig 1: Identifying Column Blind, Hooks And Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the blind in the reverse order of removal, and push the hooks and the pins into place securely.
