Cylinder Head Assembly Component Location Index

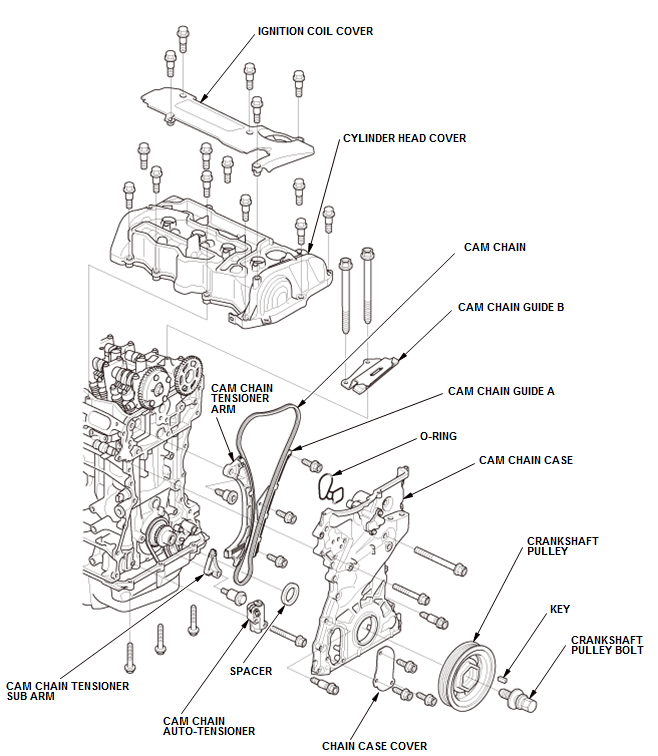

GHH49338Courtesy of HONDA, U.S.A., INC.

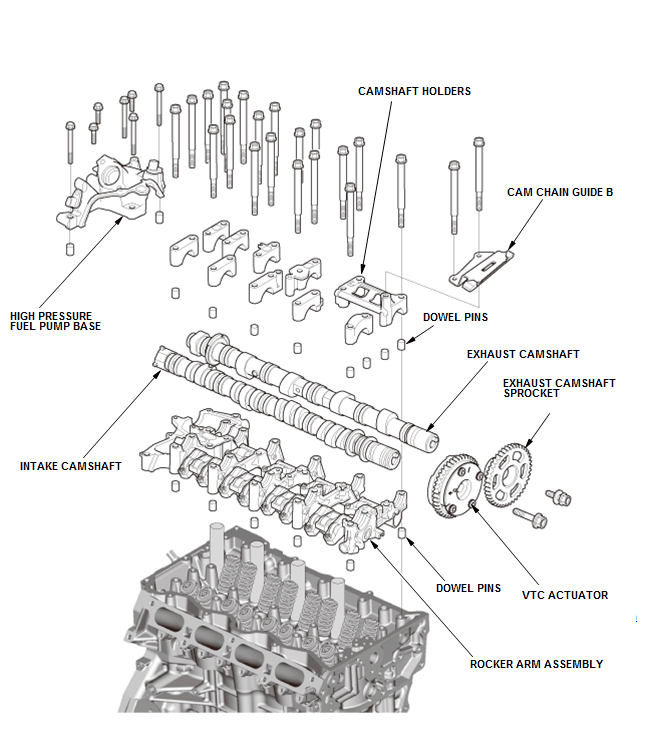

GHH49339Courtesy of HONDA, U.S.A., INC.

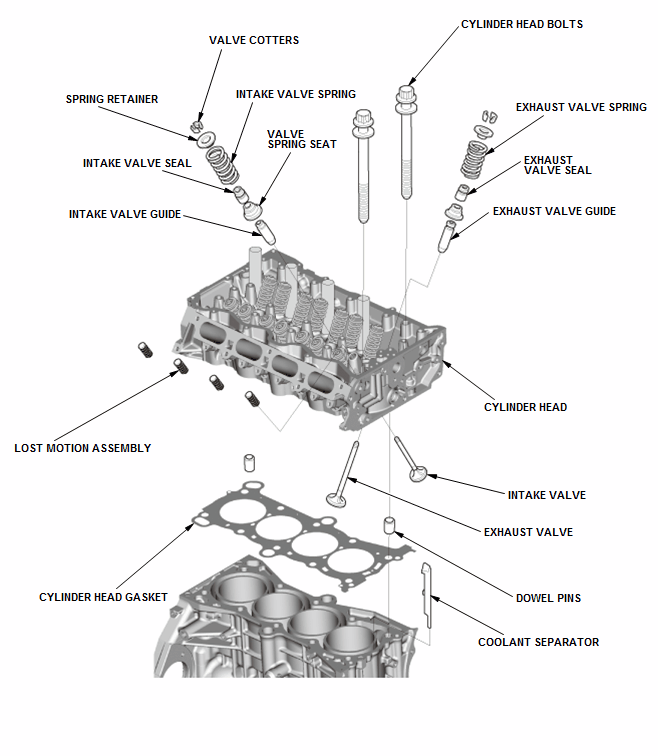

GHH49340Courtesy of HONDA, U.S.A., INC.
