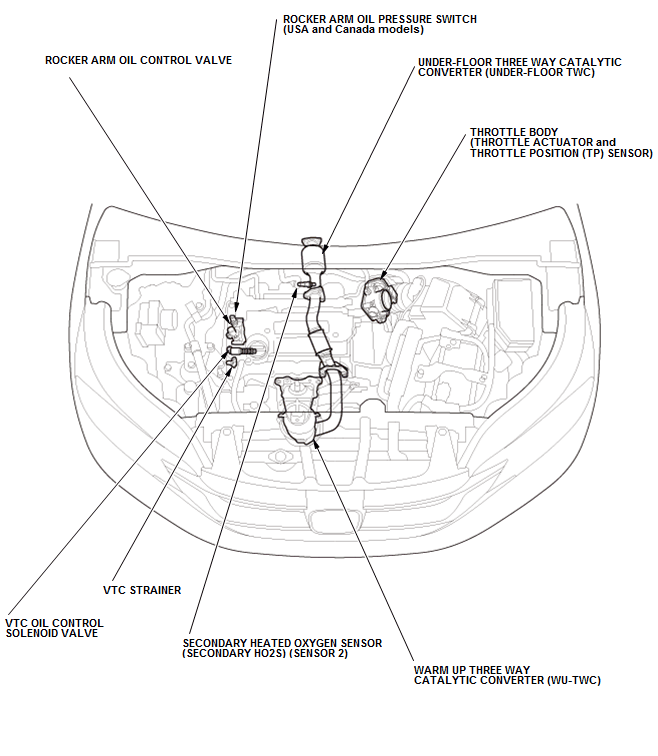

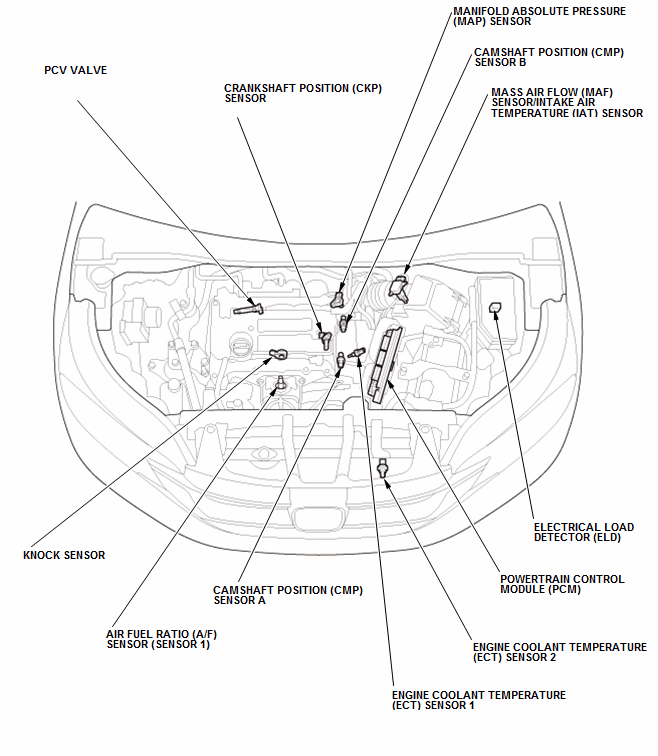

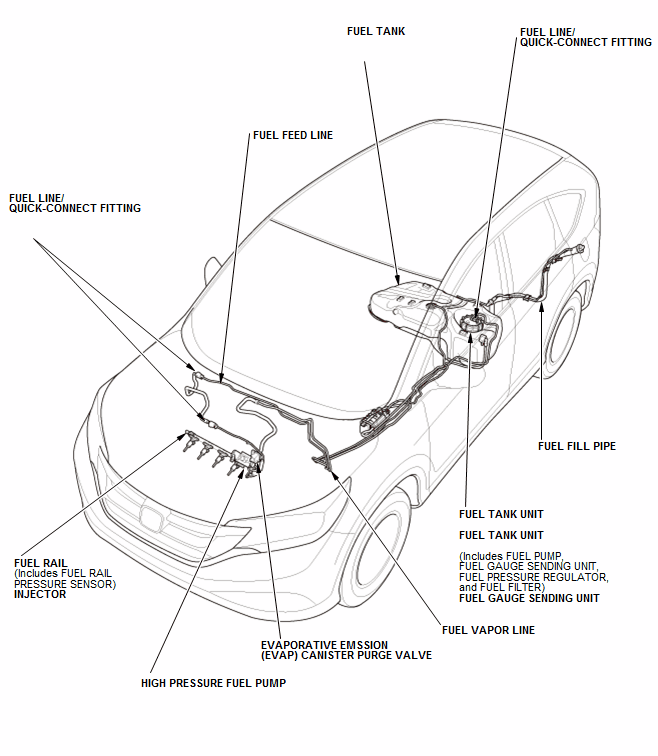

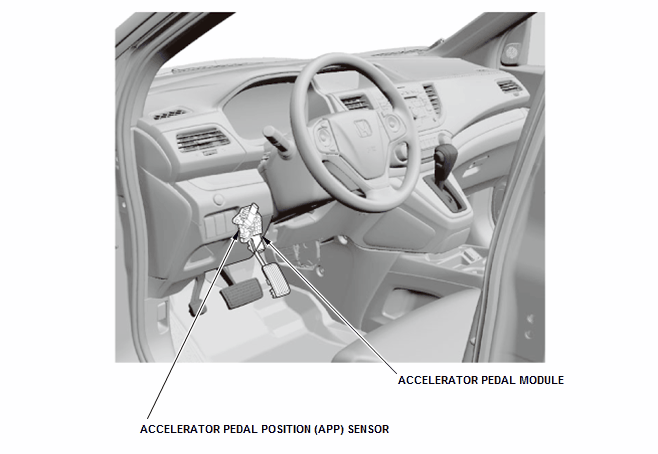

Fuel and Emissions Systems Component Location Index
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

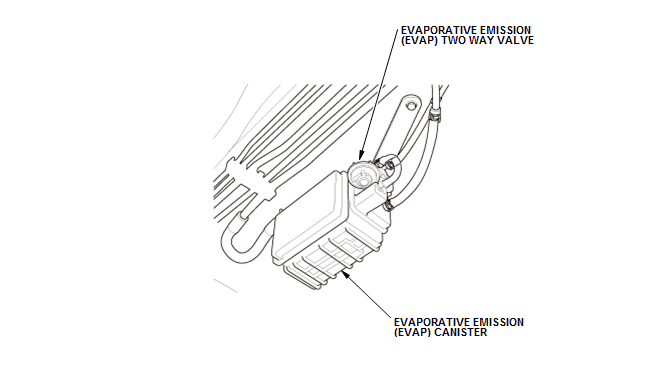

EVAP Canister (USA and Canada models)
 Courtesy of HONDA, U.S.A., INC.
|

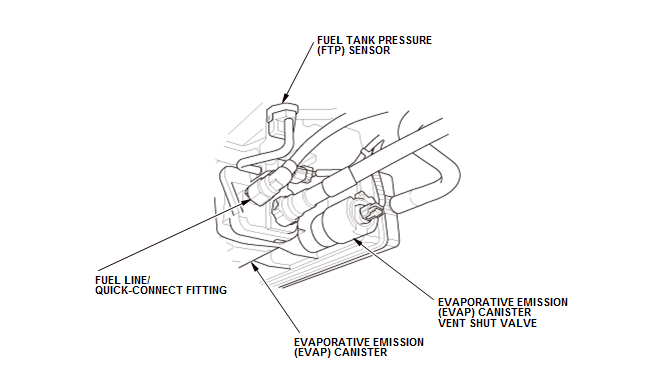

EVAP Canister (Mexico models)
 Courtesy of HONDA, U.S.A., INC.
|
