Removal and Installation

How to use this service information .

NOTE:

Where icon is shown, for further information see below.

NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.

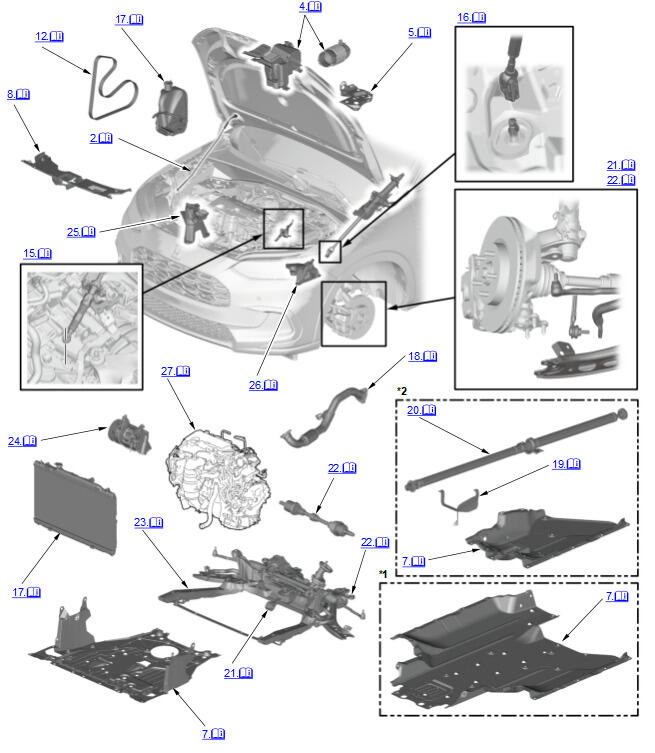

GHH539224Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
*1 2WD
*2 AWD

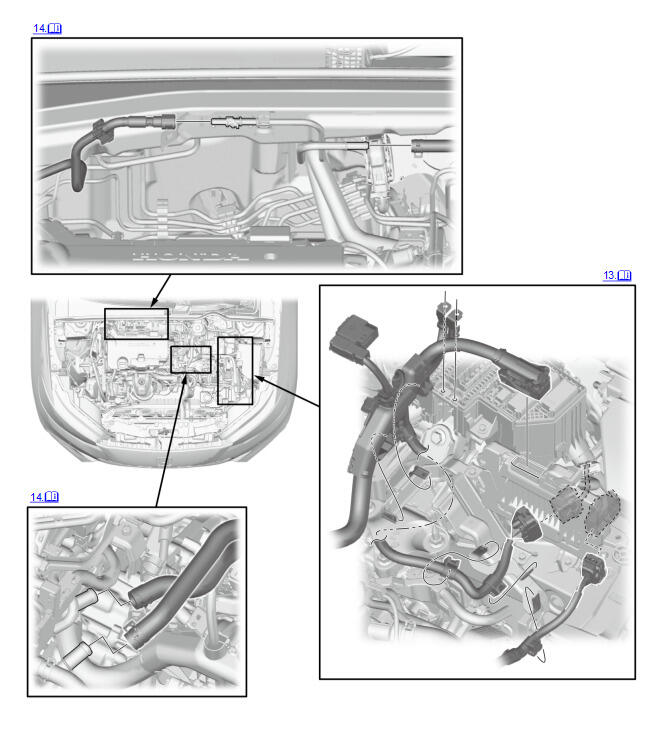

GHH539225Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions

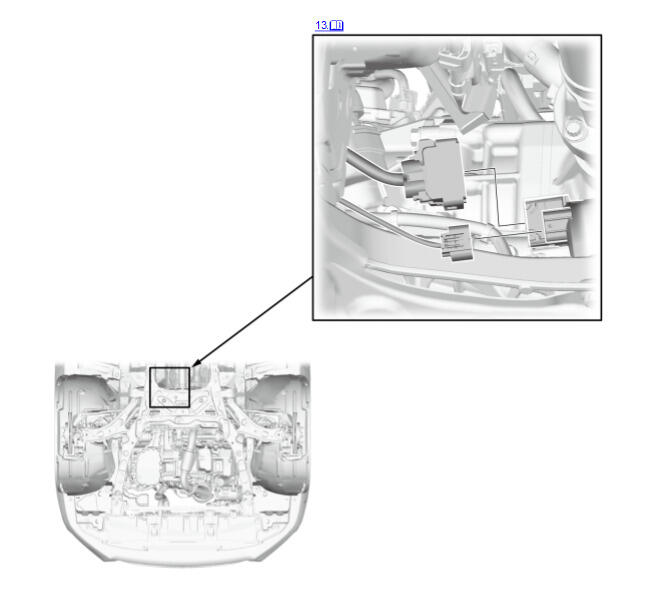

GHH539226Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
  1. Vehicle - Lift
  2. Hood - Wide Open

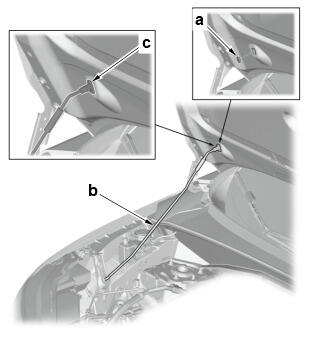

    GHH539227Courtesy of HONDA, U.S.A., INC.
    		 1. Open the hood, and remove the plug cap (a).

    2. Secure it with the hood support rod (b) in the wide-open position (c).
  3. Fuel Pressure - Relieve - Refer to: Fuel Pressure Test or Fuel Pressure Relieving
  4. Air Cleaner Area Parts - Remove
  5. 12V Battery Base Extension - Remove
  6. Front Wheel - Remove
  7. Undercover Area Parts - Remove
    • Undercover Area
      1. -

        Engine Undercover

      2. -

        Front Floor Undercover (2WD)

      3. -

        Left Middle Floor Undercover (AWD)

  8. Front Grille Cover - Remove
  9. Engine Oil - Drain - Refer to: Engine Oil Level Check or Engine Oil Replacement
  10. Engine Coolant - Drain - Refer to: Coolant Check or Coolant Replacement
  11. Transmission Fluid - Drain
  12. Drive Belt - Remove
  13. Wire Harness/Connector - Disconnect
  14. Hose - Disconnect
  15. Shift Cable (Transmission Side) - Disconnect
  16. Steering Joint - Disconnect
  17. Radiator Area Parts - Remove
  18. Exhaust Pipe A - Remove
  19. Protector - Remove (AWD)
  20. Propeller Shaft - Remove (AWD)

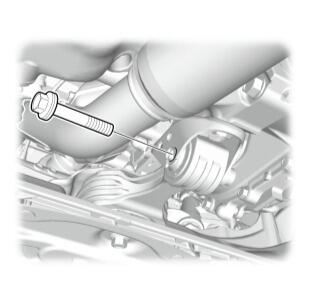

  21. Front Subframe/Steering Gearbox Area Parts - Disconnect
    GHH539228Courtesy of HONDA, U.S.A., INC.
  22. Front Suspension Area Parts - Remove/Disconnect
    GHH539229Courtesy of HONDA, U.S.A., INC.
    • Front Suspension Area
      1. -

        Lower Stabilizer Link Ball Joint (Both Sides)

      2. -

        Lower Arm Ball Joint (Both Sides)

      3. -

        Front Driveshaft (Both Sides)

      4. -

        Front Lower Arm Compliance Bush (Both Sides)

  23. Front Subframe - Remove
  24. A/C Compressor - Move
    • A/C Compressor
      NOTE:
      • Do not disconnect and excessively bend the suction hose and the discharge hose.
      • Hang the A/C compressor with a zip tie.
      • Do not allow the A/C compressor to hang by the suction or discharge hose.

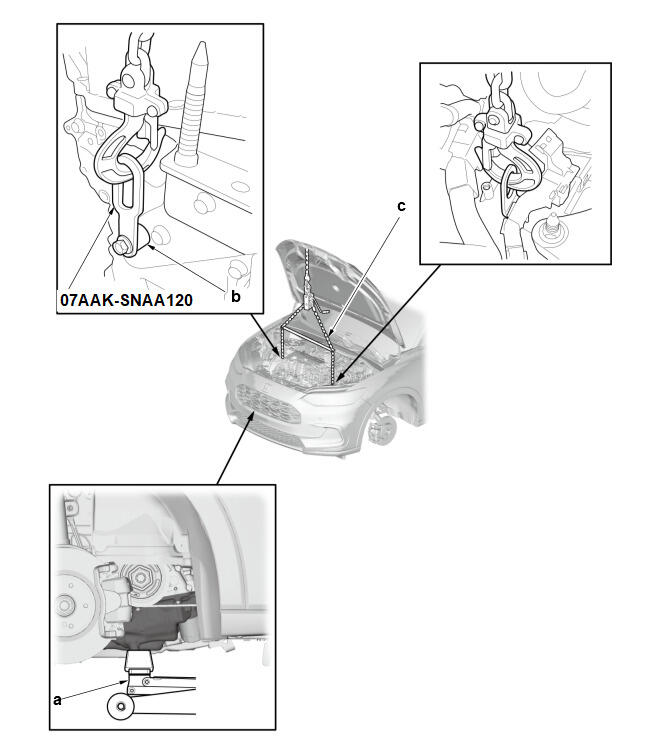

  25. Engine - Support

    1. Lift and support the engine with a jack (a) and a wood block under the oil pan.

    GHH539230Courtesy of HONDA, U.S.A., INC.

    2. Remove the side engine mount .

    3. Install the universal lifting eyelet.

    Tool Details

    Name
    b Spacer (Commercially Available)

    4. Install a chain hoist (c).

    NOTE: Attach a chain hoist to the universal lifting eyelet and the transmission hanger, then lift the engine/transmission until it is securely supported by the chain hoist.
  26. Transmission Mount - Disconnect
    GHH539231Courtesy of HONDA, U.S.A., INC.
  27. Engine - Remove
    1. Check that the engine/transmission is completely free of the vacuum hoses, fuel hoses, coolant hoses, and electrical harnesses.

    2. Slowly lower the engine/transmission about 150 mm (5.91 in). Check once again that all the hoses and electrical harnesses are disconnected and free from the engine/transmission, then lower it all the way and support it.

    3. Remove the chain hoist from the engine/transmission.

    4. Raise the vehicle, and remove the engine/transmission from under the vehicle.
  28. All Removed Parts - Install
    • Install the parts in the reverse order of removal.
      NOTE:

      After mounting the side engine mount, the transmission mount, and the torque rod, confirm the tightening procedure before installing the peripheral parts.

  29. Transmission Fluid - Refill
  30. Engine Oil - Refill - Refer to: Engine Oil Level Check or Engine Oil Replacement
  31. Fuel Leak (Low Pressure Side) - Check
  32. Engine Coolant - Refill - Refer to: Coolant Check or Coolant Replacement
  33. Fluid Leak - Check
  34. PCM - Reset - Refer to: PCM Update  or PCM Reset
  35. CKP Pattern - Clear/Learn
  36. PCM Idle - Learn
  37. Idle Speed - Inspect
  38. Ignition Timing - Inspect
  39. Wheel Alignment - Check
  40. VSA Sensor Neutral Position - Memorize - Refer to: VSA Sensor Neutral Position Memorization or VSA Modulator-Control Unit Update
