Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

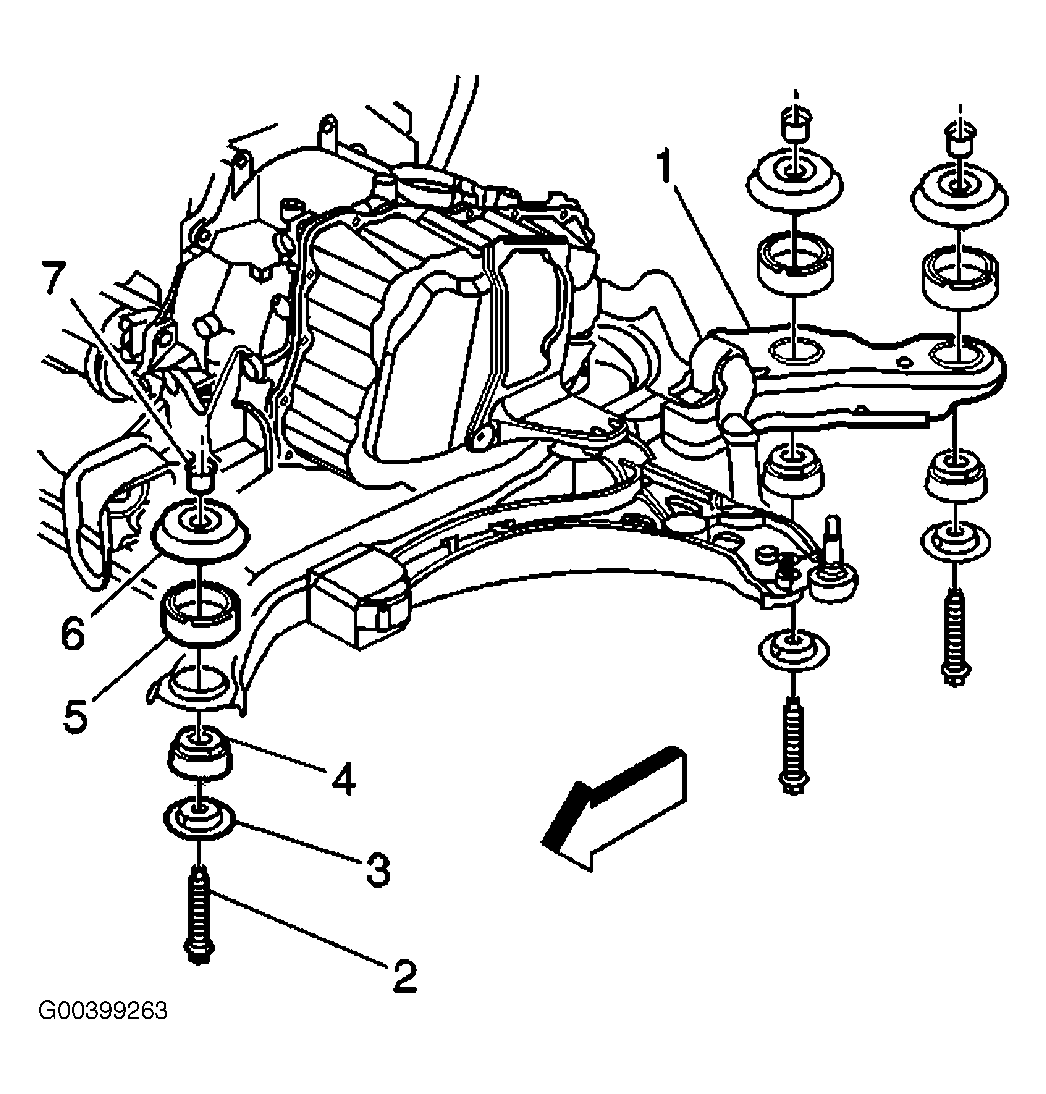

  1. Assemble the engine frame insulators to the engine frame. Refer to LOWER CONTROL ARM . Refer to Figure.

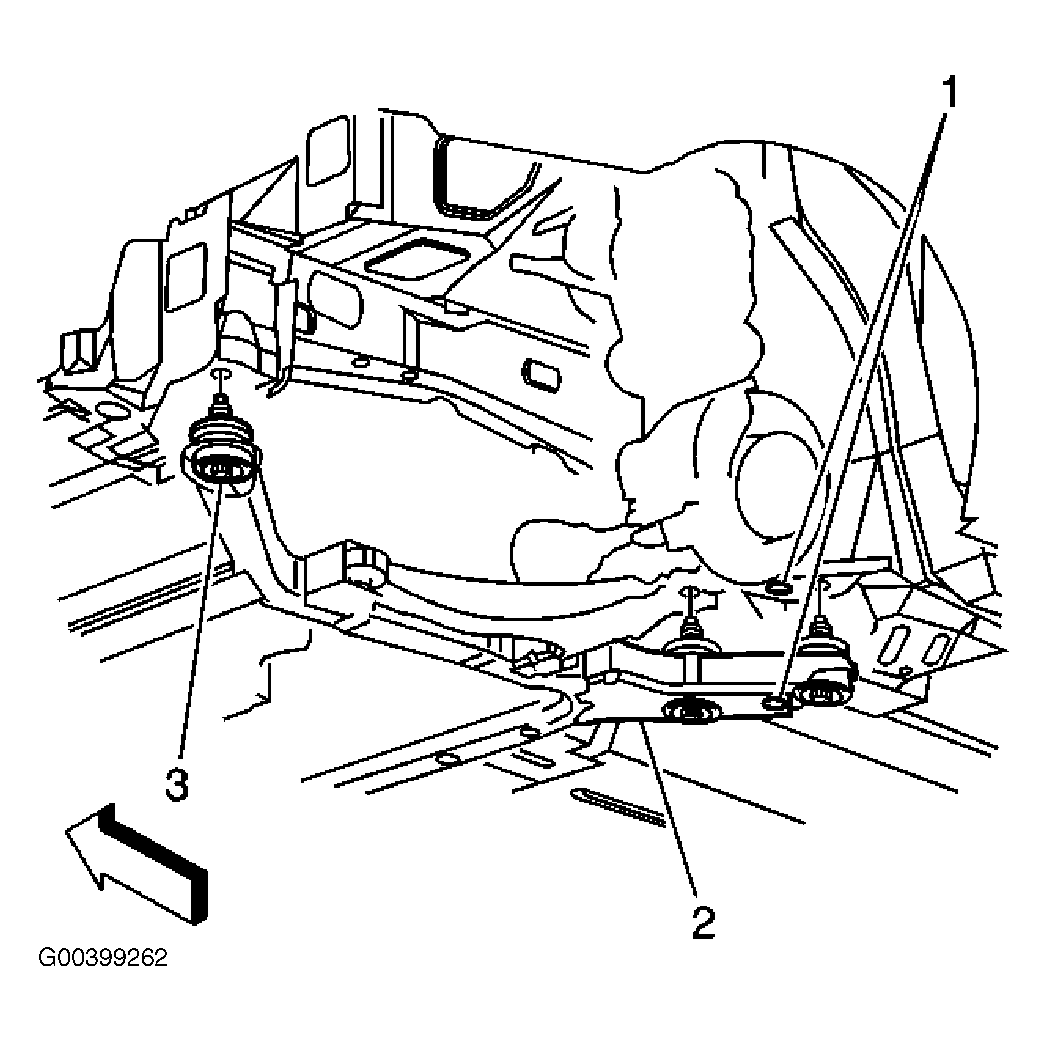

  2. Using 16 mm (0.630 in) dowel pins in the alignment holes (1), align the engine frame (2) with the body. Refer to Figure.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the engine frame insulator fasteners (3) to secure the engine frame (2) to the vehicle.

    Tighten

    Tighten the fasteners to 191 N.m (141 lb ft).

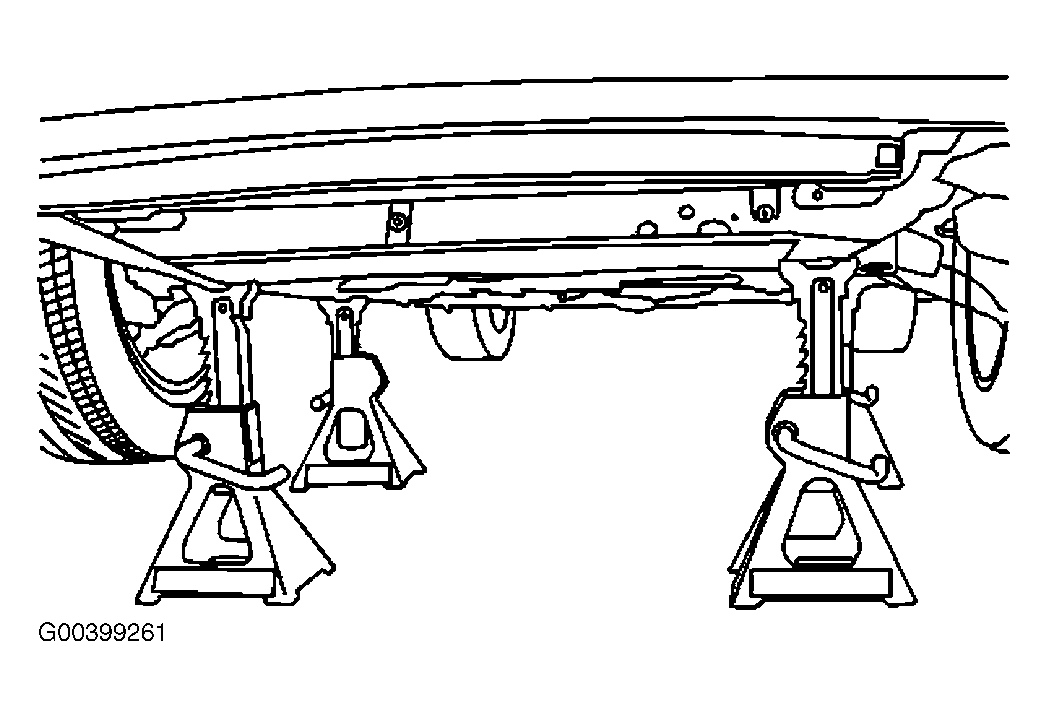

  4. Remove the jack stands supporting the engine frame. Refer to Figure.
  5. Install the 2 rear transaxle mount fasteners.

    Tighten

    Tighten the fasteners to 65 N.m (48 lb ft).

  6. Install the front transaxle mount fastener.

    Tighten

    Tighten the fastener to 65 N.m (48 lb ft).

  7. Install the fasteners in order to retain the rack and pinion to the vehicle.

    Tighten

    Tighten the fasteners to 65 N.m (48 lb ft).

  8. Install the brackets securing the power steering lines to the frame. Refer to POWER STEERING PRESSURE HOSE REPLACEMENT (L47) or POWER STEERING PRESSURE HOSE REPLACEMENT (LX5) and POWER STEERING RETURN HOSE REPLACEMENT (LX5) or POWER STEERING RETURN HOSE REPLACEMENT (L47) .
  9. Connect the ball joints to the steering knuckle. Refer to LOWER CONTROL ARM .
  10. Install the ABS module to the bracket on left front. Refer to ELECTRONIC BRAKE CONTROL MODULE (EBCM) REPLACEMENT .
  11. Reconnect the AIR pumps. Refer toSECONDARY AIR INJECTION PUMP in Engine Controls -3.5 L.
  12. Install the front tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  13. Remove the engine support fixture from the vehicle.
  14. Lower the vehicle.
  15. Test drive the vehicle in order to ensure there are no performance issues.
