Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

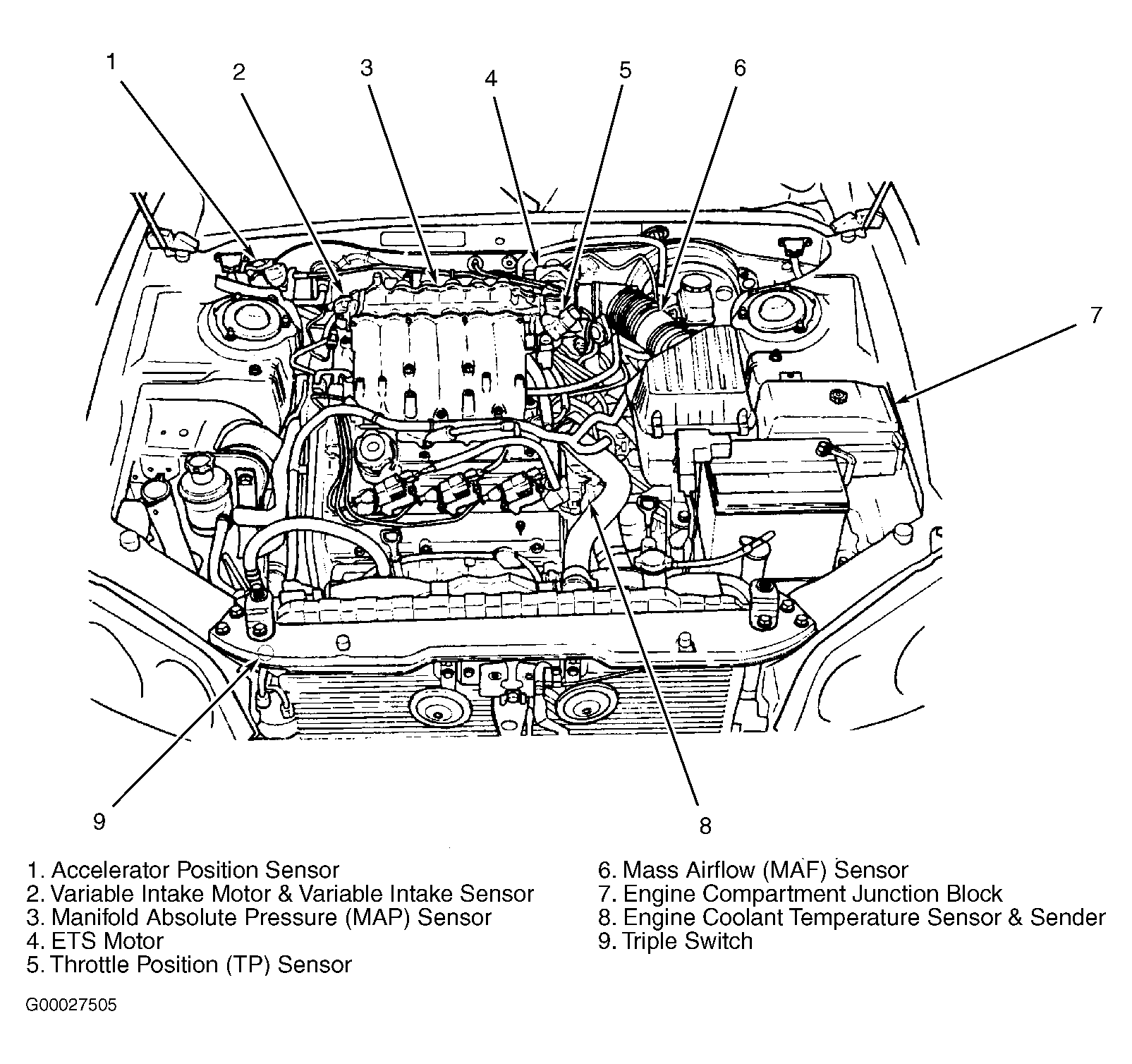

| Engine Compartment Junction Block | On left front of engine compartment. See Figure . |

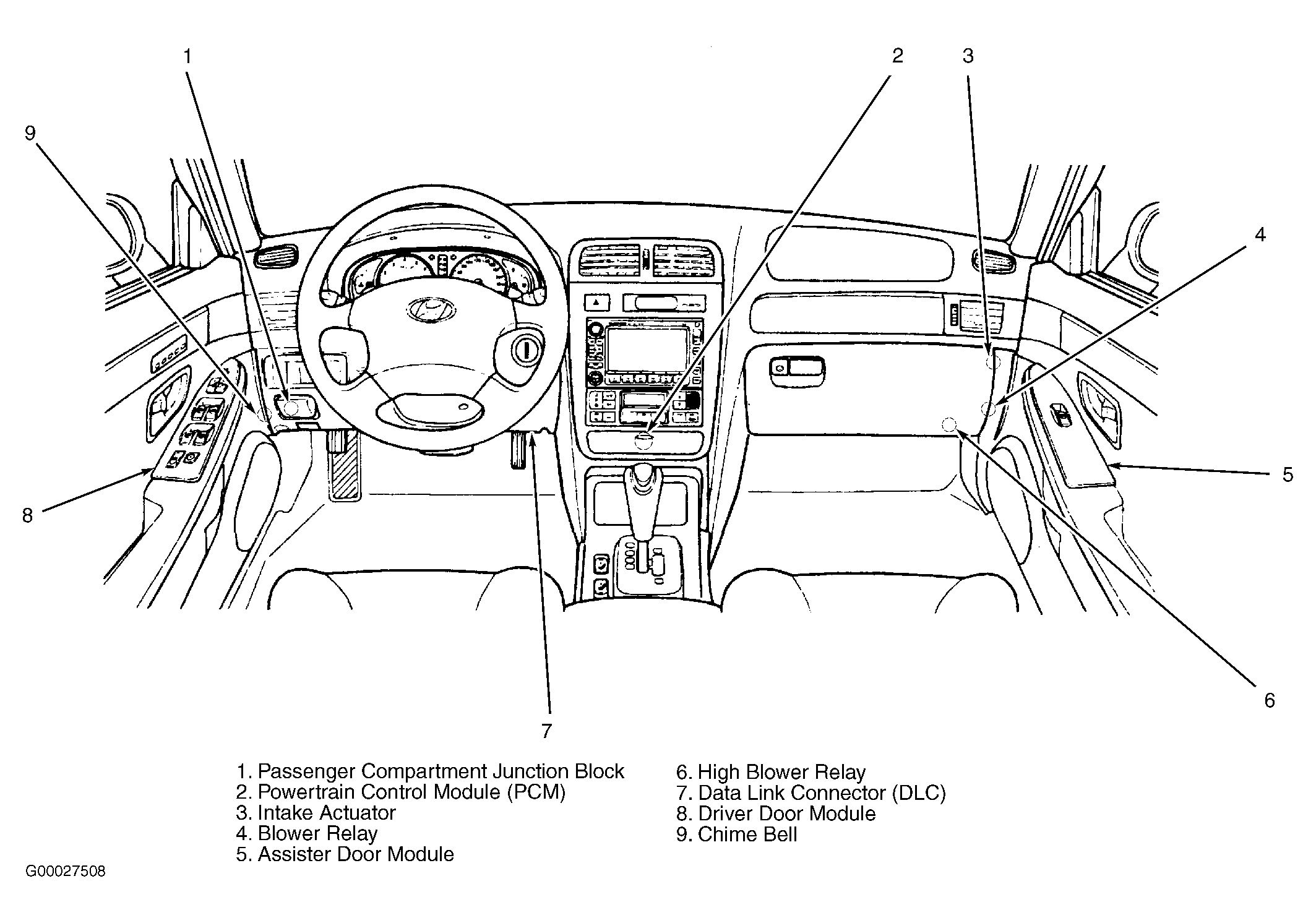

| Passenger Compartment Junction Block | Behind left end of dash. See Figure . |
| Passenger Compartment Relay Box | Behind left end of dash, on support bracket. |
