Component Inspection

Information

Inspect the following items by referring to inspection flow chart.

(Refer to Position Sensor - "TROUBLESHOOTING ")

1. Check the diagnostic trouble codes (DTC) using diagnostic tool.
2. Check that "N" range setting matches.

   (Refer to Position Sensor - "INSTALLATION ")

3. Inspect connector thoroughly for looseness, poor connection, bending, corrosion, contamination, deformation, or damage.
4. Inspect the wiring connection of junction box power terminal and fuse.
   1. Check for separation of fuse holder and check that the holder is tightly holding the fuse.
   2. Attach tester fuse to check that it is connected properly.

      Courtesy of HYUNDAI MOTOR AMERICA

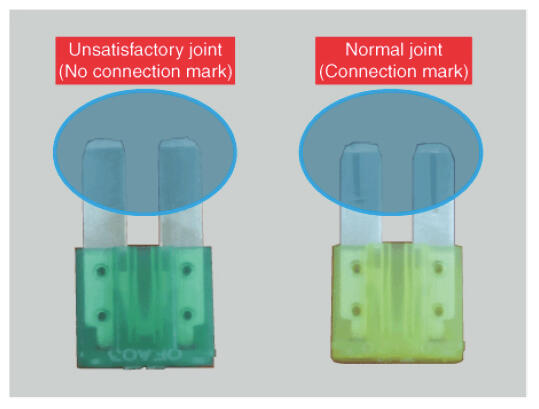

   3. Check if fuse is damaged.
5. Check the position sensor signal.
   1. Turn ignition "ON", and engine "OFF".

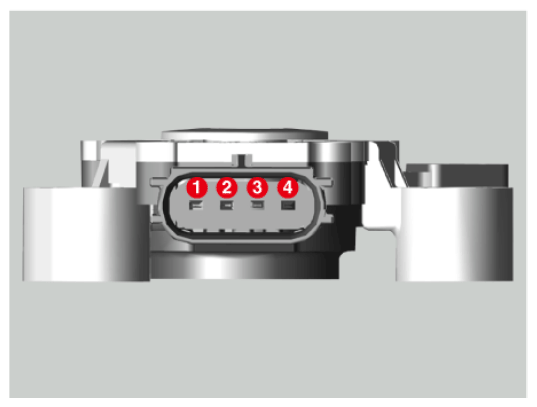

   2. Measure the PWM output at each range (P, R, N, D).

      Specification value  : Refer to table below

   Courtesy of HYUNDAI MOTOR AMERICA

   Signal (Pin)	PWM output value (%)
   	P	R	N	D
   S1(1)	10.0 - 30.7 (18.3)	37.6 - 56.9 (47.5)	59.1 - 74.3 (64.6)	76.5 - 90.0 (81.7)
   S2(4)	69.3 - 90.0 (81.7)	43.1 - 62.4 (52.5)	25.7 - 40.9 (35.4)	10.0 - 23.5 (18.3)
