Function Of Pressure Switch

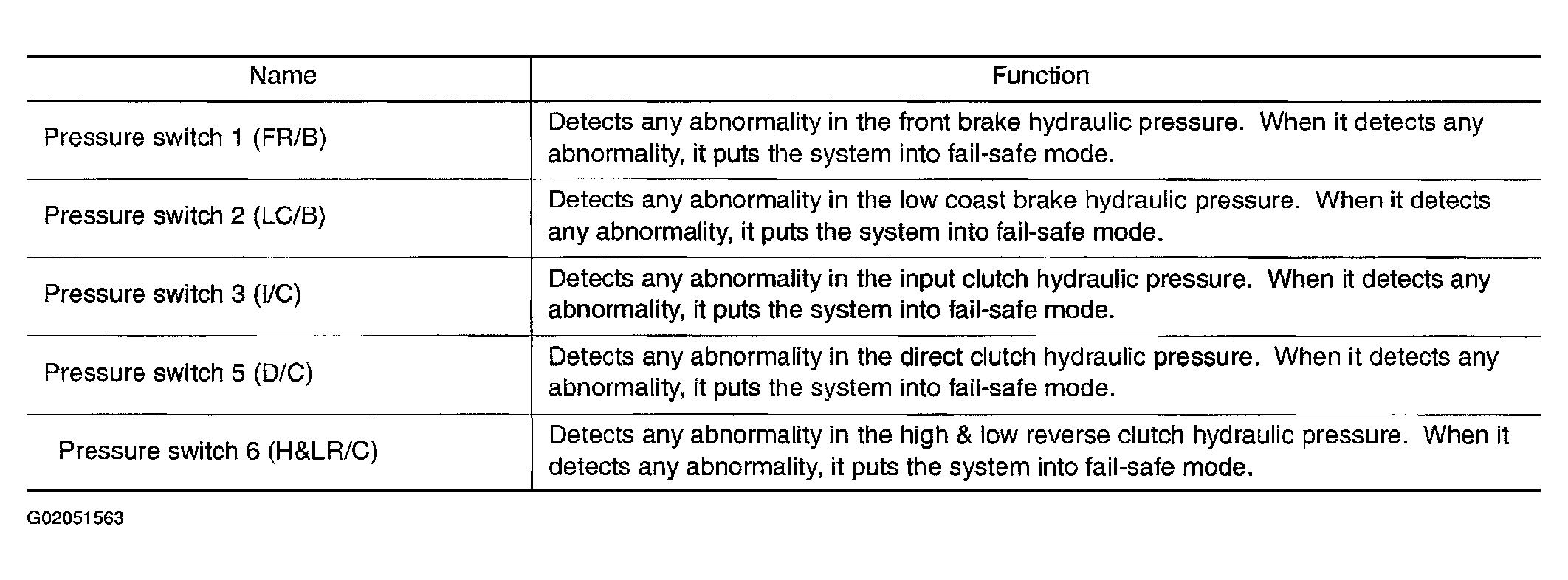

Fig 1: Pressure Switch Function Table
Courtesy of NISSAN MOTOR CO., U.S.A.
