Hydraulic Control Circuit

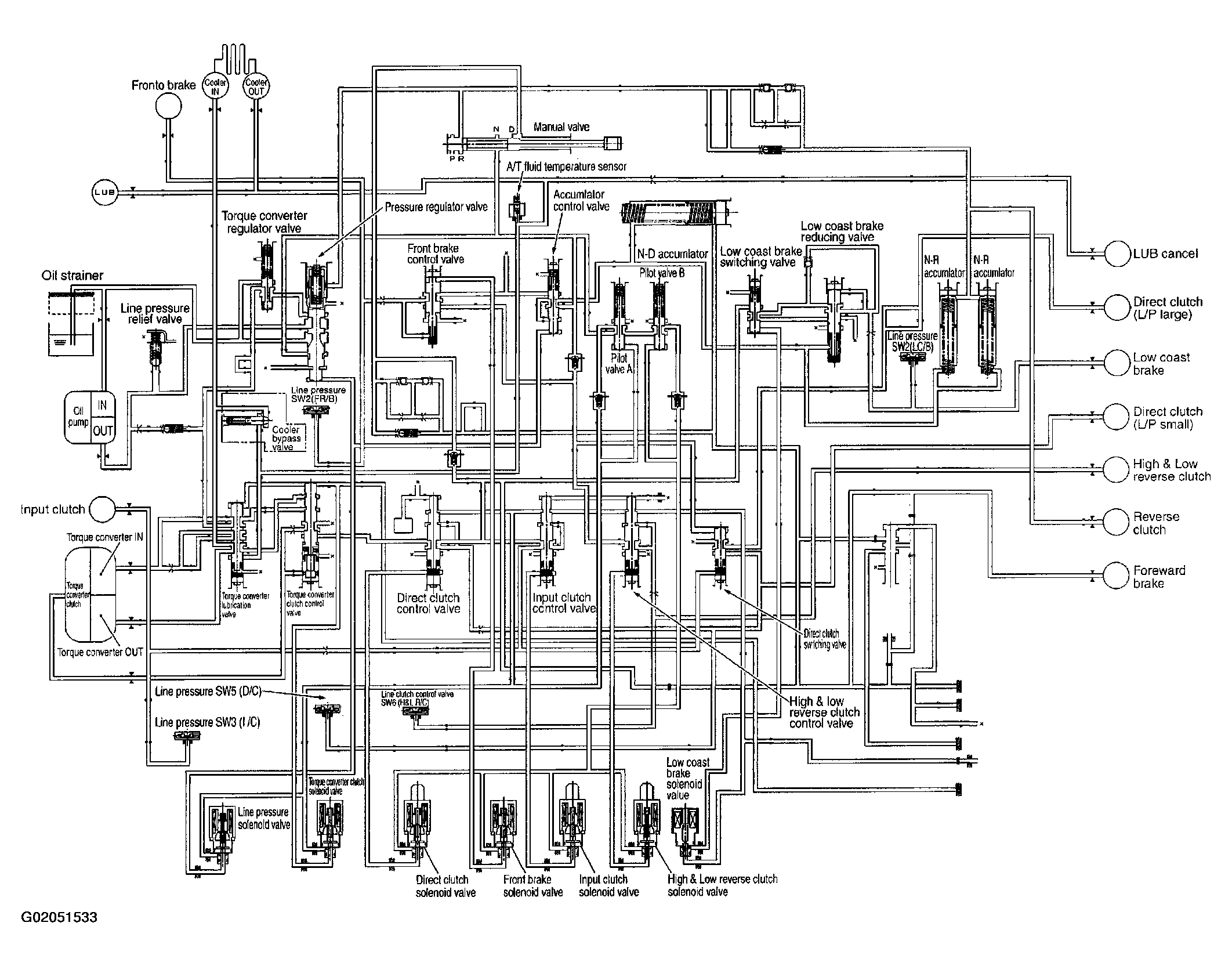

Fig 1: Hydraulic Control Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
