Control System Outline

The automatic transmission senses vehicle operating conditions through various sensors. It always controls the optimum shift position and reduces shifting and lock-up shocks.

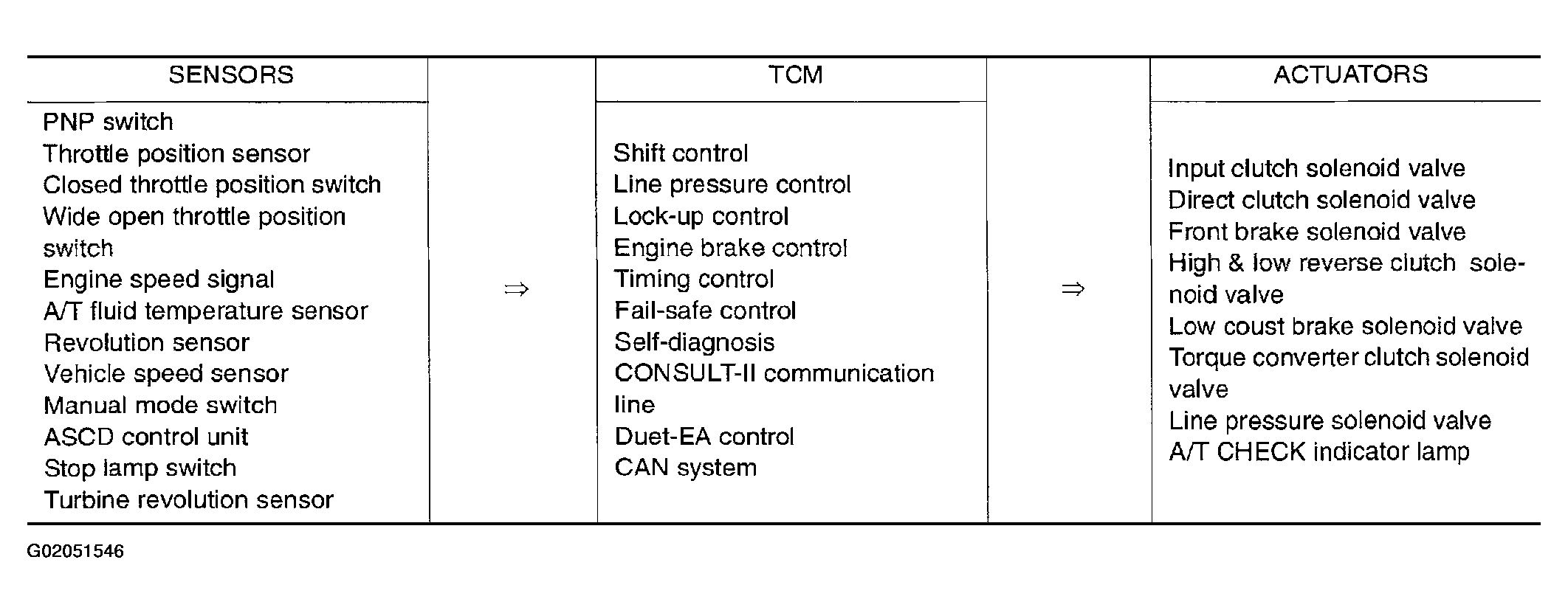

Fig 1: Sensors TCM Actuators Table

Courtesy of NISSAN MOTOR CO., U.S.A.
