RGB Screen Is Not Shown

Check power supply and ground circuit for display. Refer to "POWER SUPPLY AND GROUND CIRCUIT INSPECTION FOR DISPLAY "

OK or NG

1. OK: GO TO 2.
2. NG: Repair malfunctioning parts.

1. Turn ignition switch OFF.
2. Disconnect AV and NAVI control unit connector and Display connector.
3. Check continuity between AV and NAVI control unit harness connector B30 terminal 12 (B) and Display harness connector M82 terminal 8 (LG).
   1. 12 - 8: Continuity should exist.
4. Check continuity between AV and NAVI control unit harness connector B30 terminal 13 (W) and Display harness connector M82 terminal 5 (L/Y).
   1. 13 - 5: Continuity should exist.
5. Check continuity between NAVI control unit harness connector B30 terminal 12 (B), 13 (W) and ground.
   1. 12, 13 - Ground: Continuity should not exist.

OK or NG

1. OK : GO TO 2.
2. NG : Repair harness or connector.

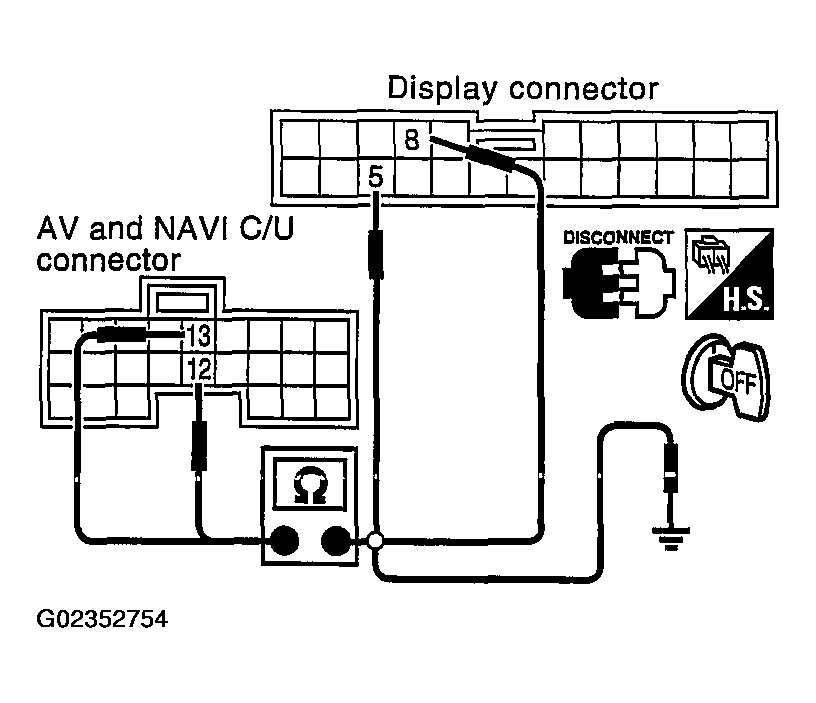

   Fig 1: Checking Harness (12-8, 13-5)

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Connect AV and NAVI control unit connector and Display connector.
2. Turn ignition switch ON.
3. Check the signal between AV and NAVI control unit harness connector B30 terminals 13 (W) and 14 with CONSULT-II or oscilloscope.
   1. 13 - 14: Refer to " TERMINALS AND REFERENCE VALUE FOR AV AND NAVI CONTROL UNIT   ".

Fig 2: Checking The Signal Between AV And NAVI Control Unit Harness Connector B30 Terminals 13 (W) And 14 With CONSULT-II Or Oscilloscope

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Replace Display.

1. Press "INFO" switch.
2. Check the signal between AV and NAVI control unit harness connector B30 terminals 12 (B) and 14 with CONSULT-II or oscilloscope.
   1. 12-14: Refer to " TERMINALS AND REFERENCE VALUE FOR AV AND NAVI CONTROL UNIT   ".
   Fig 3: Checking The Signal Between AV And NAVI Control Unit Harness Connector B30 Terminals 12 (B) And 14 With CONSULT-II Or Oscilloscope

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace Display.
2. NG: Replace AV and NAVI control unit.
