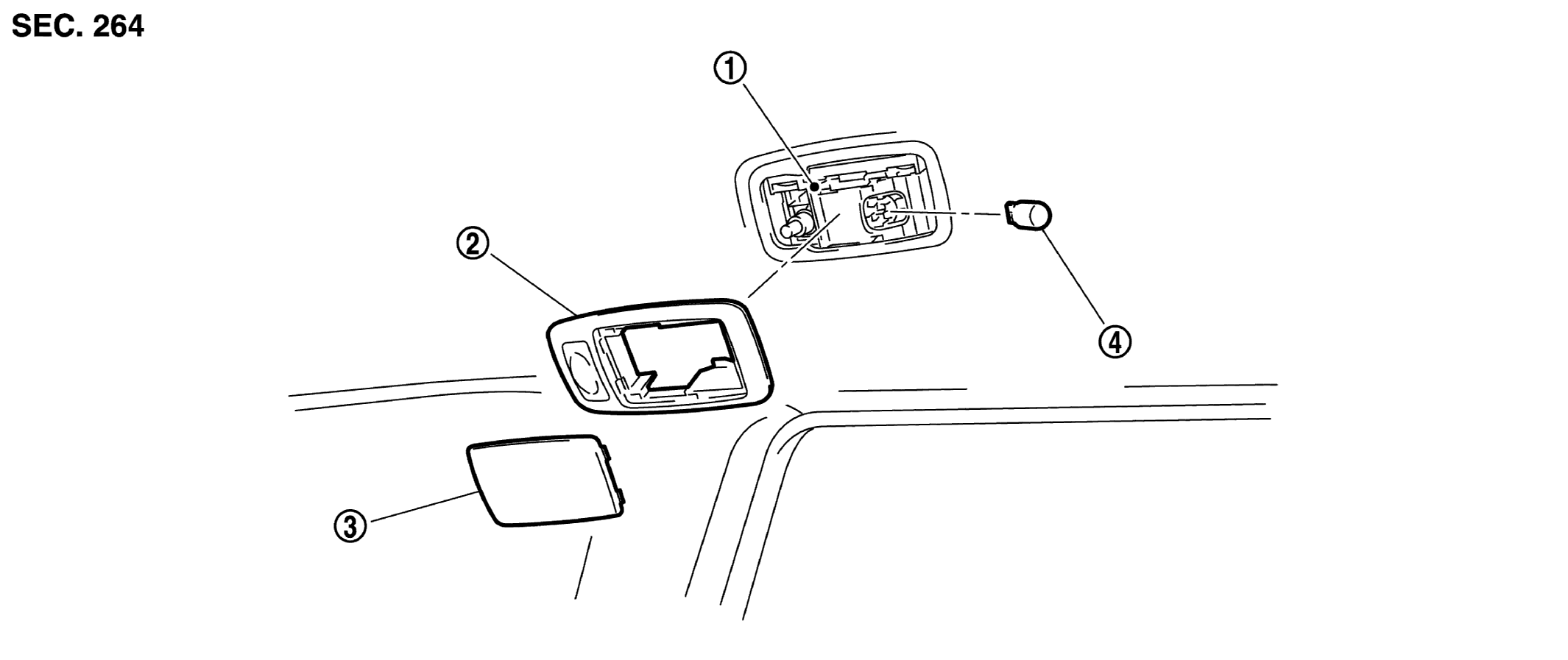

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Personal lamp case	2.	Personal lamp finisher	3.	Lens
4.	Bulb

NOTE:

Replace the personal lamp case as a set (right and left). After removing the headlining assembly, remove the personal lamp case. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
